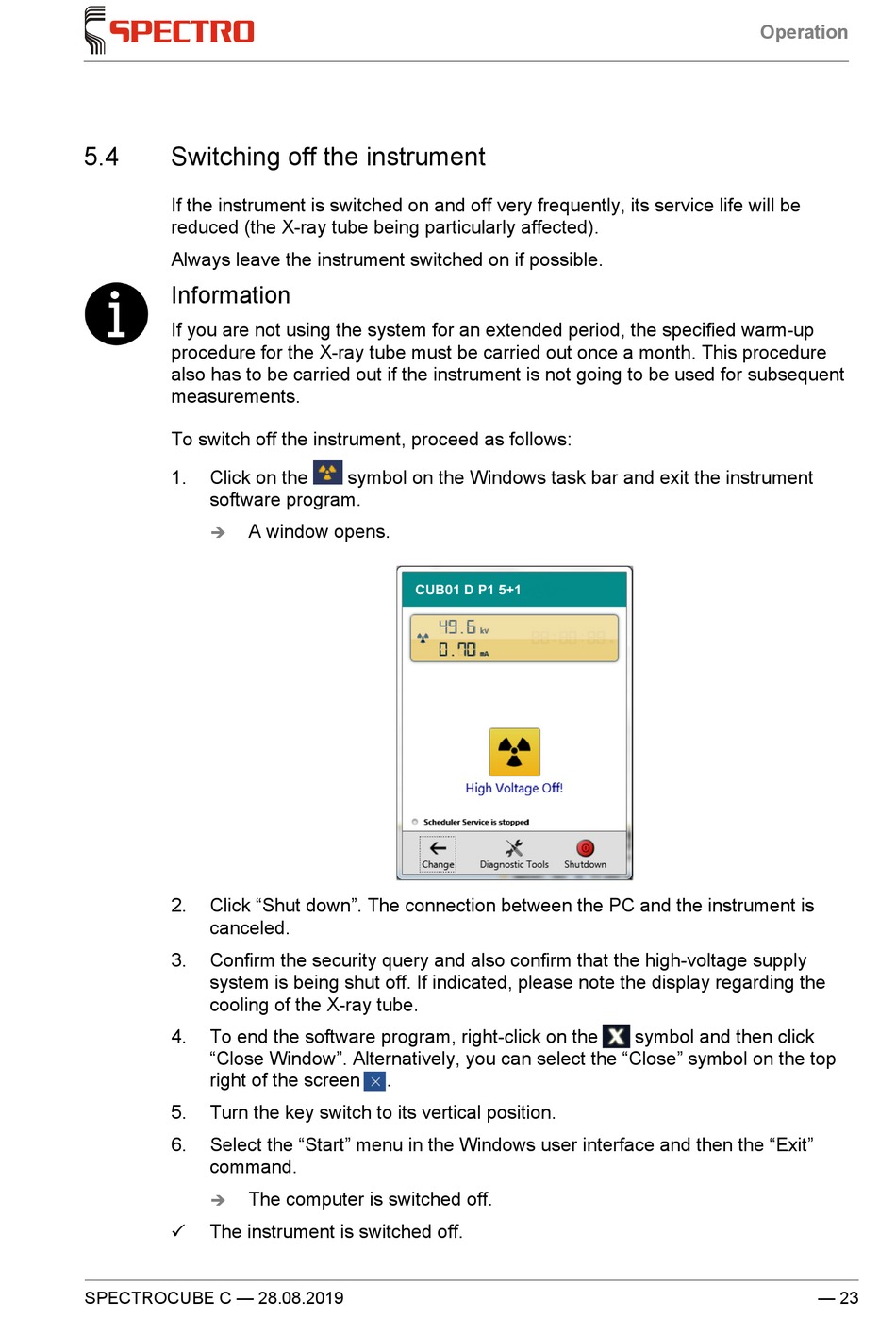

Switching Off The Instrument - SPECTRO SPECTROCUBE C XEP06C Original Operating Instructions

5.4

Switching off the instrument

If the instrument is switched on and off very frequently, its service life will be
reduced (the X-ray tube being particularly affected).
Always leave the instrument switched on if possible.
Information
If you are not using the system for an extended period, the specified warm-up
procedure for the X-ray tube must be carried out once a month. This procedure
also has to be carried out if the instrument is not going to be used for subsequent
measurements.
To switch off the instrument, proceed as follows:
1. Click on the
software program.
A window opens.

2. Click "Shut down". The connection between the PC and the instrument is
canceled.
3. Confirm the security query and also confirm that the high-voltage supply
system is being shut off. If indicated, please note the display regarding the
cooling of the X-ray tube.
4. To end the software program, right-click on the
"Close Window". Alternatively, you can select the "Close" symbol on the top
right of the screen
5. Turn the key switch to its vertical position.
6. Select the "Start" menu in the Windows user interface and then the "Exit"
command.
The computer is switched off.

The instrument is switched off.

SPECTROCUBE C — 28.08.2019
symbol on the Windows task bar and exit the instrument
.
Operation
symbol and then click
— 23
