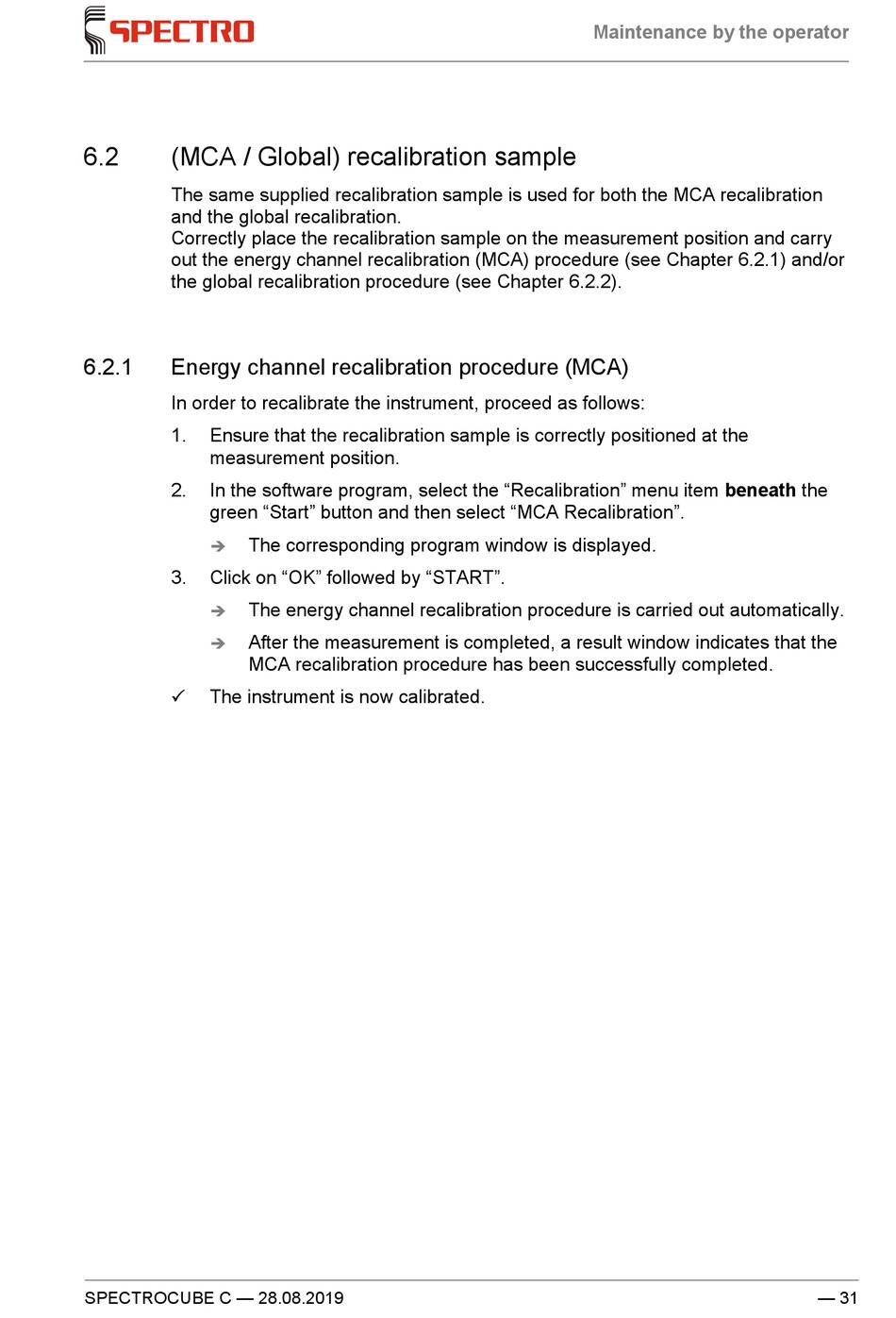

6.2

(MCA / Global) recalibration sample

The same supplied recalibration sample is used for both the MCA recalibration
and the global recalibration.
Correctly place the recalibration sample on the measurement position and carry
out the energy channel recalibration (MCA) procedure (see Chapter 6.2.1) and/or
the global recalibration procedure (see Chapter 6.2.2).
6.2.1

Energy channel recalibration procedure (MCA)

In order to recalibrate the instrument, proceed as follows:
1. Ensure that the recalibration sample is correctly positioned at the
measurement position.
2. In the software program, select the "Recalibration" menu item beneath the
green "Start" button and then select "MCA Recalibration".
The corresponding program window is displayed.

3. Click on "OK" followed by "START".
The energy channel recalibration procedure is carried out automatically.

After the measurement is completed, a result window indicates that the

MCA recalibration procedure has been successfully completed.
The instrument is now calibrated.

