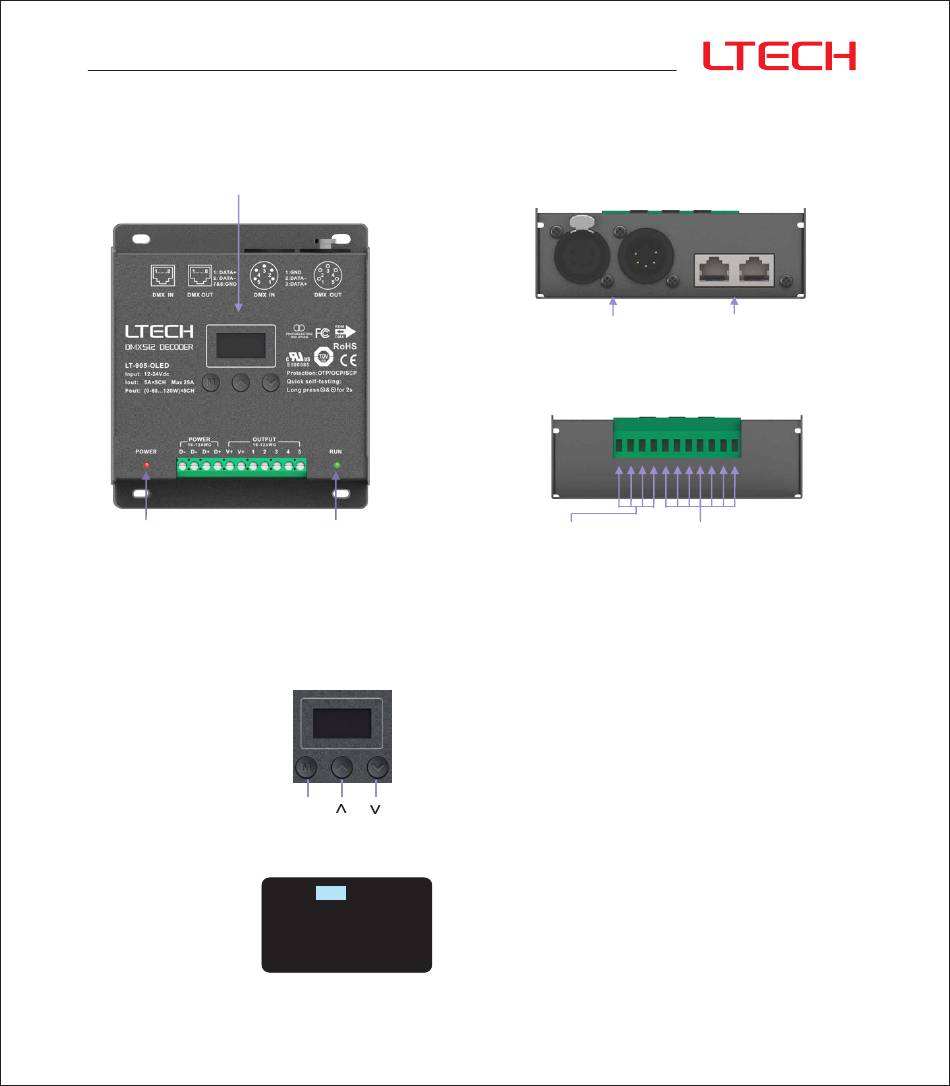

Main component description
OLED display
Power
indicator
OLED display interface
1. DMX address
settings
Signal
indicator
M
DMX: 001 Hz: High
Mode: RGB 8bit
Curve: Standard
Dim: Smo TOOL&v
Main page
5-pin XLR
DMX/RDM
input & output
12-24Vdc
Power input
LED lamp connection
Press "M" key, switch entries.
Press "∧" or "∨" key, parameter adjustment.
Long press "M" key, back to main page.
Exit: back to previous page.
Press "∧" or "∨" key to set DMX address.
Range: 001~512
3
RJ45
DMX/RDM
input & output
Green terminals
