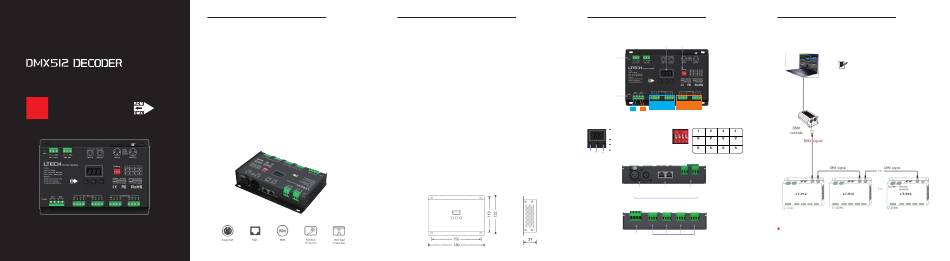

Ltech LC-LT-DMX-12CHA Quick Start Manual

12 8 bit / 16 bit
3 kinds of DMX interfaces
CHANNELS Shortcut / Over load protection
Product Introduction:
1. Designed for Hi-power multiple channels application, 12 channels output, and up to
1152W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal
amplifier function).
4. With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
5. With shortcut protection and over load protection, as well as warning function
when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
1
Technical Specs:
LC-LT-DMX-12CHA
Model :
Input Signal : DMX512/RDM
Input Voltage : 12~24Vdc
Current Load : 4A × 12CH Max 48A
Output Power : (0~48W...96W) × 12CH Max. 1152W
DMX Interface : 3-pin XLR, RJ45, Green terminal
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Protection: Shortcut / Over load
Working Temperature : -30℃~65℃
Dimensions : L180×W122×H39mm
Package Size : L193×W127×H41mm
Weight (G.W.) : 730g
Product Size:
The Unit: mm
2

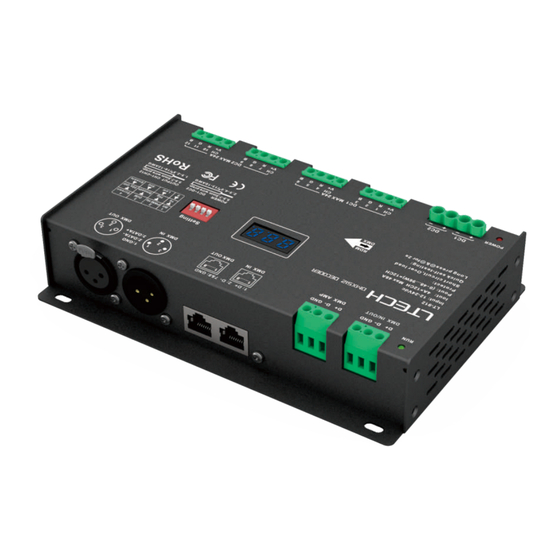

Main Component Descripition:
Digital Dip
display switch
Signal
indicator
Power
indicator
Powered by DC1 Powered by DC2
Max. 24A Max. 24A
DC1 DC2
Digital display Dip switch
Digital display will enter the locked
mode without operating after 15S.
Bit PWM Hz DIM Screen
Long press "M" key to unlock.
16 Hig Smooth 30S off
Short press "M" key to switch numbers.
Press " ""v" key to adjust value. 8
^ Low Std Enable
M
Green terminals
3-pin XLR RJ45
(with signal amplifier function)
DMX/RDM input & output
12-24V dc Green terminals
LED lamps connection
Power input
3
Wiring Diagram:
1. DMX console onnection c :
LT-912 is equipped with 3 types DMX terminals for users'
selection. The following diagram takes 3-pin XLR as an
example, same connecting method for the rest two: RJ45
& green terminal (with amplifier function).
If the recoil effect occurs because of longer signal line or bad line quality, please try to
connect 0.25W 90-120Ω terminal resistor at the end of each line.
4 Update Time: 2017.04.18_A0
