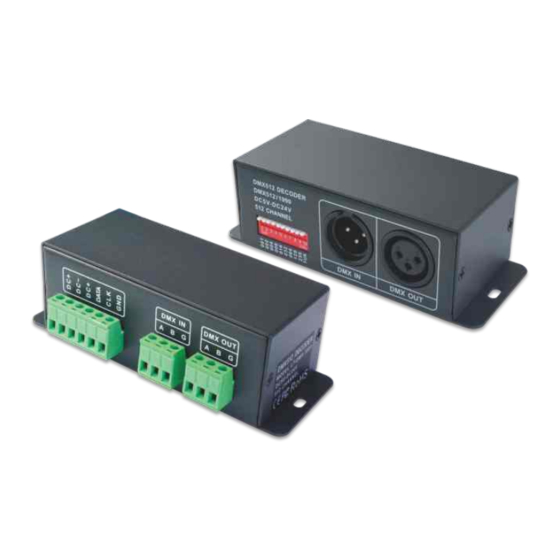

Ltech DMX-8806 Manual

DMX-8806 DMX-SPI Signal
Decoder Manual
Welcome to choose our DMX decoder, DMX-SPI signal decoder works to convert DMX512 digital
signal to SPI (TTL)digital signal. It can control LED lights compatible with driving IC, and control
every channel of the LED lights, realize the function of 0~100% dimming or editing all sorts of
change effect.
DMX-SPI decoder are wildly used in LED flashing word string light, LED dot light, SMD strip,
LED digital tubes, LED wall light, LED pixel screen, Hi-power spotlight, flood light, etc.
1. Product Parameter:
LT-8806
Input Voltage
DC5V~DC24V
Input Signal DMX512
SPI ( Compatible with LPD8803/8806 LED Drive IC)
Output Signal
Decoding Channels 512 Channels/Unit
Output Grey Scale
256 Grey Scales(8 Bits/CH)
XLR-3, Green Terminal
DMX512 Connector
L125×W52×H40mm
Product Dimension
Package Size
L135×W70×H50mm
℃
Working Temperature -30 ~65
Weight (G.W.) 300g
DMX-8806 DMX-SPI Decoder Manual
warranty
3 years
℃
1
2. Configuration Diagram:
m m
5 2
DMX IN DMX OUT
115mm
/
Power Input
DMX Port 1
S ignal Output
)
( Side A
3. Output Port Definition:
No. Silk screen
DC+
Power Supply
1
Input Port
DC-
DC+
DATA
Output Port
2
Connect Lights
CLK
GND
4. How to Set DMX Address via Dip Switch:
When FUN OFF, Decoder is DMX controlling mode, When FUN=ON, Decoder is self-test mode.
0
OFF
Figure 1
1 2 3 4 5 6 7 8 9 10
1
ON
ON
1. Set DMX512 Original Address:
DIP 1
2 3 4
Address 001 002 004 008
DMX512 initial address code is equal to the total amount of the Dip switches' number from 1 to
9, press Dip switch downward(ON.: at position :"1"), user can get the number of its position, if
pressing upward(at position"0"), the number of its position is 0.
For example, Set initial address to 37:
As figure 2, set the 6th, 3rd and 1st bit of the DIP switch downward to "1", the rest to "0", the
total sum from 1 to 9 is 32+4+1, so the DMX512 initial address code is 37.
DMX-8806 DMX-SPI Decoder Manual
DMX512 DECODER
DMX512/1990
1 2 2 1
DC5V-DC24V
512 CHANNEL 3 3
1 2 3 4 5 6 7 8 9 10
DIP ON
DMX IN DMX OUT
125mm
Address Dip Switch DMX Port 2
)
( Side B
Function
DC5V-24V LED Power Supply Input
LED Power Supply Anode
Data Cable
Clock Cable
Ground Wire(DC-)
0
OFF
Figure 2
1 2 3 4 5 6 7 8 9 10
1
4 ON
ON
5 6 7 8 9
016 032 064 128 256
Instructions
2
10
FUN
