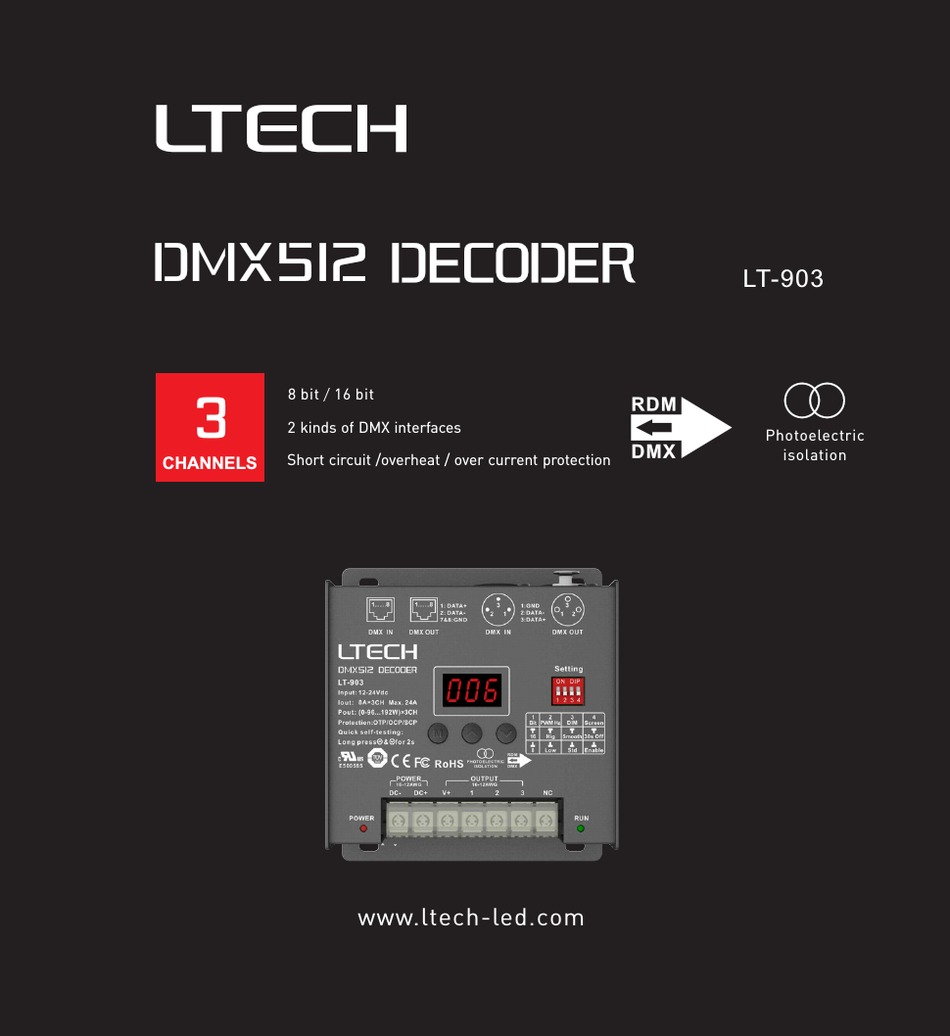

- Page 1 LT-903 8 bit / 16 bit 2 kinds of DMX interfaces Photoelectric isolation Short circuit /overheat / over current protection CHANNELS www.ltech-led.com...
-
Page 2: Product Introduction
Product introduction 1. Designed with 3 channels output, maximum 8A current per channel, and up to 576W output power. 2. Easy operation with digital display and the touch buttons. 3. 3-pin XLR, RJ45 DMX interface with photoelectric isolation, improve signal transmission efficiency and anti-interference ability. -
Page 3: Technical Specs
Technical specs LT-903 Model DMX512/RDM Input signal 3-pin XLR, RJ45 DMX interfaces: 12 24Vdc Input voltage × 3CH Max. 24A Current load (0~96W...192W) × 3CH Max. 576W Output power: 8bit (256 levels) / 16bit (65536 levels) Grey levels Photoelectric isolation:... -
Page 4: Main Component Descriptions
Main component descriptions Digital Digital display display switch 8 8 8 Digital display will enter the locked mode without operating after 15 seconds. Long press “M” key to unlock. Short press “M” key to switch numbers. Press “ ””v” key to adjust value. -
Page 5: Wiring Diagram
Wiring diagram 1 Connecting LED lights: Signal Signal LT-903 12-24Vdc driver RGB LED RGB LED... - Page 6 2. DMX console onnection LT-903 is equipped with 2 kinds DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, the same connecting method for Rj45. console Resistor terminal DMX signal DMX signal DATA+ DATA-...
- Page 7 3. The connection diagram of 2 kinds of DMX/RDM terminals: Terminal resistor LT-903 LT-903 LT-903 3-pin XLR connected in parallel Terminal resistor Vent LT-903 LT-903 LT-903 Installation distance > 20mm Rj45 connected in parallel These 2 terminals can be connected in a mixed way.
