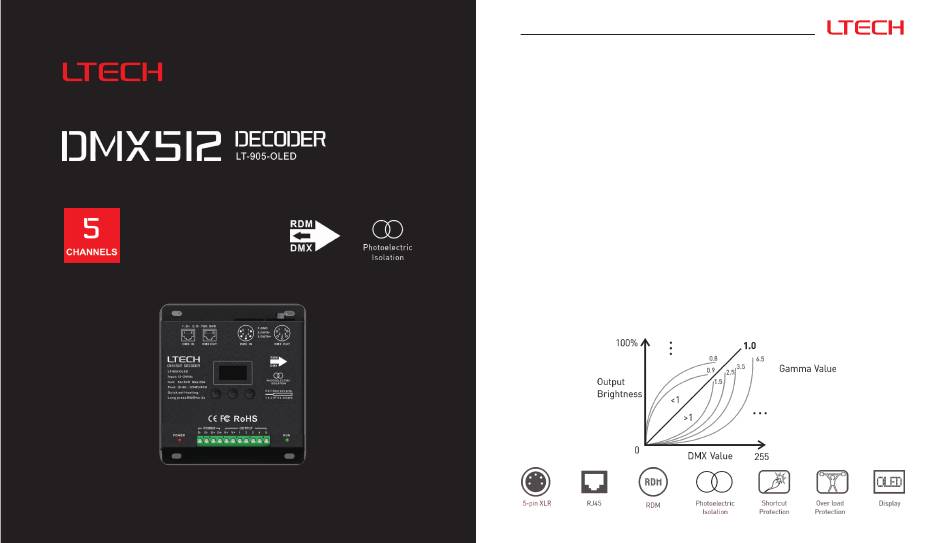

OLED display
8 bit / 16 bit
2 kinds of DMX interfaces
Dimming Curve: 0.1~9.9
Shortcut / Over load protection
www.ltech-led.com
www.ltech-led.com

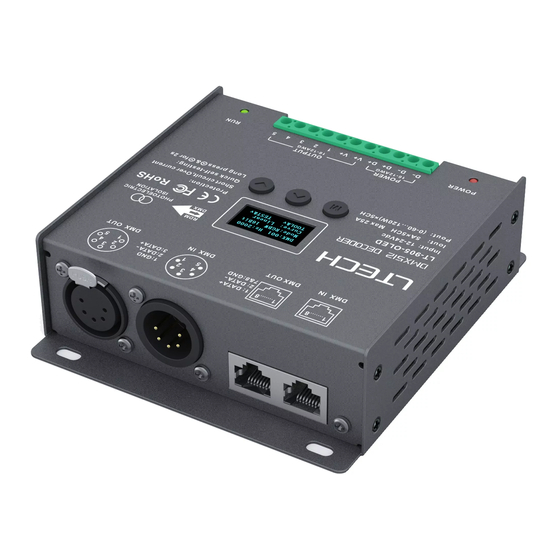

Product Introduction:
1. Designed with 5 channels output, and Max. 5A current per channel, up to 600W
output power.
2. Easy operation with OLED screen and the touch buttons.
3. 5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
4. Support 2 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45.
5. With
RDM remote management protocol,
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
6. With photoelectric isolation function.
7. With shortcut protection and over load protection, as well as warning function
when fault.
8. With fast self-testing function.
9. 16bit / 8bit resolution optional.
10. Multiple dimming curve ( 0.1~9.9) optional.
the operations can be completed via the
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-905-OLED
Summary of Contents for Ltech LT-905-OLED
- Page 1 Product Introduction: 1. Designed with 5 channels output, and Max. 5A current per channel, up to 600W output power. 2. Easy operation with OLED screen and the touch buttons. 3. 5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
-
Page 2: Technical Specs
Technical Specs: Product Size: LT-905-OLED Model The Unit: mm Input Signal DMX512/RDM 12 24Vdc Input Voltage Current Load 5A x 5CH Max. 25A (0~60W...120W) x 5CH Max. 600W Output Power : DMX Interface : 5-pin XLR, RJ45 Control Mode :... - Page 3 Main Component Descripition: OLED Screen Interface: OLED screen Press "M" key, switch entries. Press "∧" or “∨" key, parameter adjustment. Long press “M” key, back to main page. Exit: back to previous page. 1. DMX Address DMX: Hz: High Press “∧"...
- Page 4 Press “ ∧" or “∨" key to switch mode. 3. Mode DMX: 001 Hz: High 6. Tool DMX: 001 Hz: High Optional : Mode: 8bit Mode: RGB 8bit Curve: Standard Curve: Standard TOOL&v TEST&v TOOL&v TEST&v RGBW RGBWY Press “∧"...
-
Page 5: Wiring Diagram
Wiring Diagram: 1 Connecting LED lights: Dimming Mode Mode Mode RGBW Mode RGBWY Mode... - Page 6 2. DMX console onnection 3. The connection diagram of 2 kinds of DMX/RDM terminals: LT-905-OLED is equipped with 2 types DMX terminals for users’ selection. The following diagram takes 5-pin XLR as an example, same connecting method for RJ45.
- Page 7 Address setting table Mode RGBW RGBY Address Quantity Resolution 8bit 8bit 8bit 8bit 8bit Channel Mode RGBW RGBY Address Quantity Resolution 16bit 16bit 16bit 16bit 16bit Channel Update Time: 2017.01.16...
