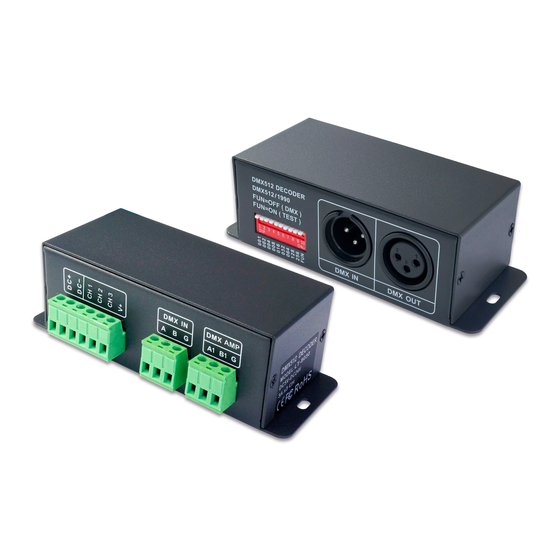

Ltech LT-8030 User Manual

Dmx512 decoder
Hide thumbs Also See for LT-8030:

Advertisement

Quick Links

Download this manual

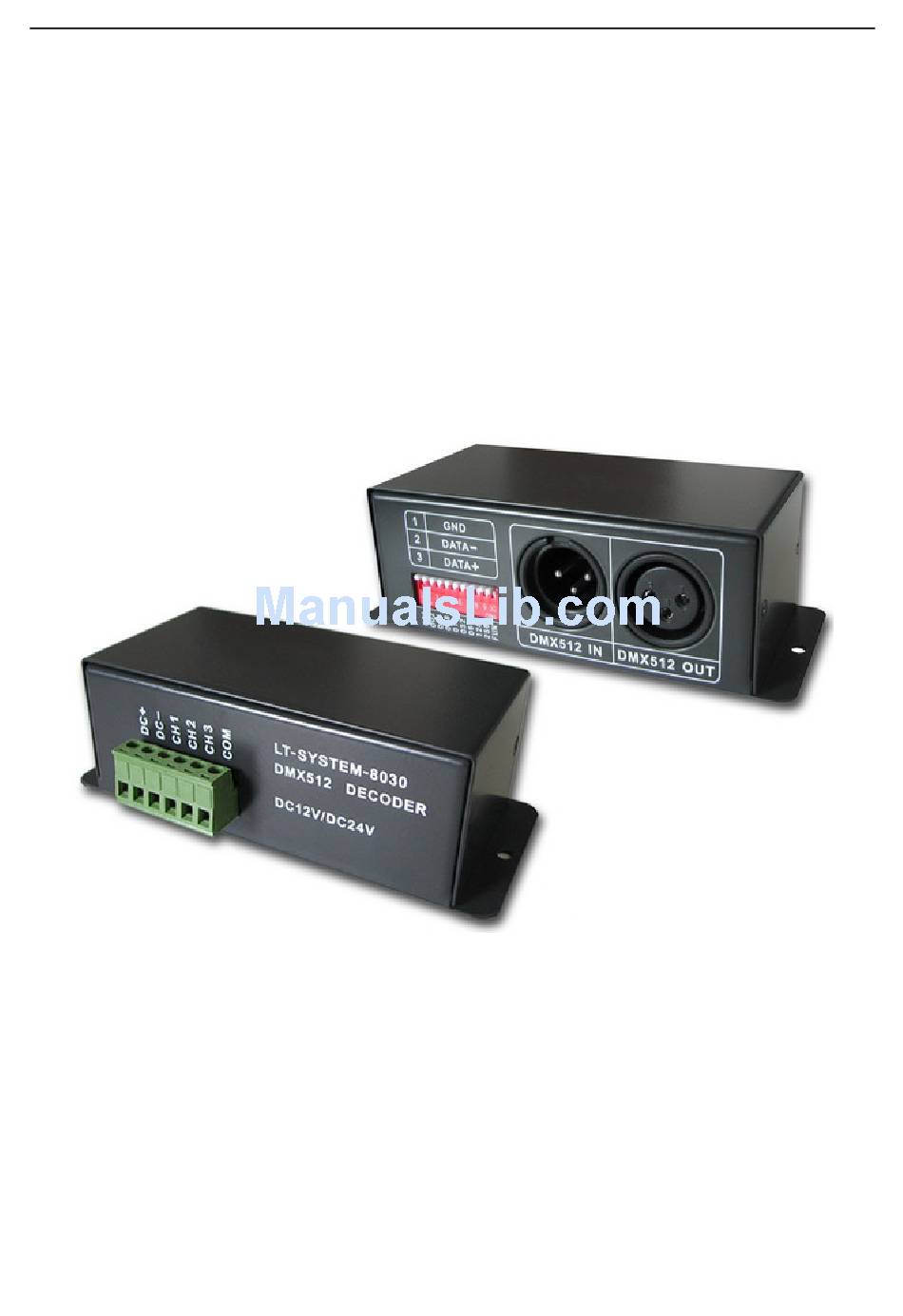

LT-8030
DMX512 Decoder Manual
Page 1 of 16
LT-8030
DMX512 DECODER
User's Manual
(Kindly read through this manual carefully before use)

Advertisement

loading
Need help?

Need help?

Do you have a question about the LT-8030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ltech LT-8030

Summary of Contents for Ltech LT-8030

  • Page 1 LT-8030 DMX512 Decoder Manual Page 1 of 16 LT-8030 DMX512 DECODER User’s Manual (Kindly read through this manual carefully before use)

  • Page 2: After-Sales Service

    LT-8030 DMX512 Decoder Manual Page 2 of 16 Foreword Thanks for choosing our LT-SYSTEM-8030 DMX512 Decoder. Before installation and usage, we strongly recommend you to read through this manual carefully. After-sales service From the day you purchase our products within a year, if being used properly in...

  • Page 3: Function Brief

    LT-8030 DMX512 Decoder Manual Page 3 of 16 Function Brief Thanks for choosing LT-SYSTEM-8030 DMX512 Decoder, LT-SYSTEM-8030 Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal into analog signal, it allows user to choose 1~3 output channel, 256-level brightness control, max 512 output channels.
  • Page 4 LT-8030 DMX512 Decoder Manual Page 4 of 16 Input Port Output Port Ⅳ. Decoder address setting This decoder occupies 3 addresses, adopted Dip switch to set the address, the Dip switches from 1 to 9 are a kind of binary value...
  • Page 5 LT-8030 DMX512 Decoder Manual Page 5 of 16 Example 1: Set to 37 bit of the DIP switch downward to “1”, others Set the 6 to “0” (picture 1), the total sum from 1 to 9 is 32+4+1, so the DMX512 initial address code is 37.
  • Page 6 LT-8030 DMX512 Decoder Manual Page 6 of 16 Ⅴ.Instructions for other functions 1. Testing function： The 10 DIP switch is FUN, acting as the function key. DMX512 Decoder works when FUN is at OFF, receiving DMX512 signals. Decoder testing mode works when FUN is at position” ON” as Picture 3: SWITCH1－9 OFF：BLACK...
  • Page 7 LT-8030 DMX512 Decoder Manual Page 7 of 16 SWITCH 1＝ON：SPEED 1 SWITCH 2＝ON：SPEED 2 SEITCH 3＝ON：SPEED 3 SWITCH 4＝ON：SPEED 4 SWITCH 5＝ON：SPEED 5 SWITCH 6＝ON：SPEED 6 SEITICH7＝ON：SPEED 7 Picture 4 As Picture 4. When several DIP SWITCH at “ON” at the same time, comply with the largest value switch, the testing function is when FUN＝ON, DIP SWITCH 8 &...
  • Page 8 LT-8030 DMX512 Decoder Manual Page 8 of 16 Note： Two versions for LT-8030 decoder, one has 3 dmx addresses, the other has 4 dmx addresses. 3 DMX ADD Version: The 1st address controls LEDs on CH1,0-255 steps of brightness. The 2nd address controls LEDs on CH2,0-255 steps of brightness.
  • Page 9 LT-8030 DMX512 Decoder Manual Page 9 of 16 100% Ⅵ. Conjunction Diagram Each Decoder with one power supply Or one power supply with multi decoders...
  • Page 10 LT-8030 DMX512 Decoder Manual Page 10 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 100000000 001110000 111011000 010000000 101110000 000111000 110000000 011110000 100111000 001000000...
  • Page 11 LT-8030 DMX512 Decoder Manual Page 11 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 010010100 101101100 000100010 110010100 011101100 100100010 001010100 111101100 010100010 101010100...
  • Page 12 LT-8030 DMX512 Decoder Manual Page 12 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 110001010 011111010 100110110 001001010 111111010 010110110 101001010 000000110 110110110 011001010...
  • Page 13 LT-8030 DMX512 Decoder Manual Page 13 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 001011110 111100001 010101001 101011110 000010001 110101001 011011110 100010001 001101001 111011110...
  • Page 14 LT-8030 DMX512 Decoder Manual Page 14 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 101000101 000001101 110111101 011000101 100001101 001111101 111000101 010001101 101111101 000100101...
  • Page 15 LT-8030 DMX512 Decoder Manual Page 15 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 011010011 100011011 001100111 111010011 010011011 101100111 000110011 110011011 011100111 100110011...
  • Page 16 LT-8030 DMX512 Decoder Manual Page 16 of 16 DMX Address Setting Table DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR DIP SWITCH DMX ADDR 123456789 NUMBER 123456789 NUMBER 123456789 NUMBER 111001111 000011111 100111111 000101111 100011111 010111111 100101111 010011111 110111111 010101111...
