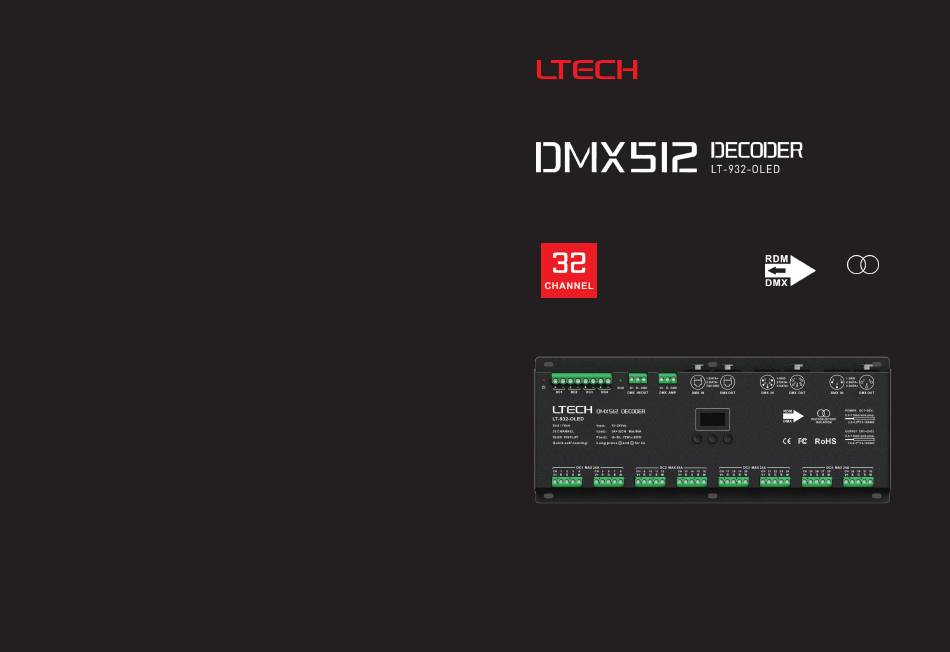

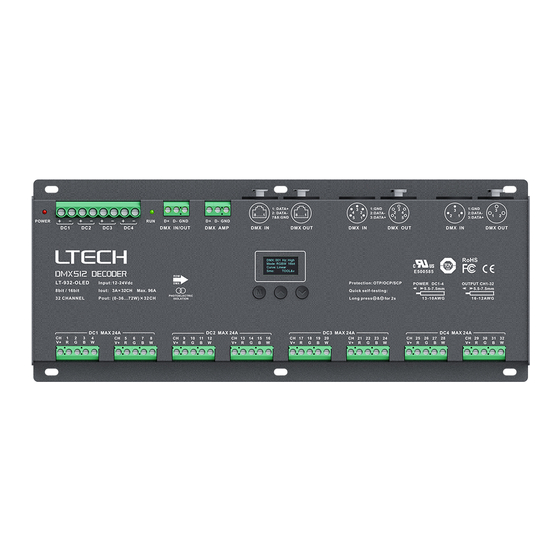

- Page 1 OLED display 8 bit / 16 bit 4 wiring methods Photoelectric Dimming Curve: 0.1~9.9 Isolation Shortcut / Over load protection www.ltech-led.com...
-
Page 2: Product Introduction
Product Introduction: 1. Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power. 2. Easy operation with OLED screen and the touch buttons. 3. 4 kinds of mode optional: single color, color temperature, RGB, RGBW. -
Page 3: Technical Specs
Main Component Descripition: Technical Specs: Model LT-932-OLED Input Signal DMX512/RDM Input Voltage 12 24Vdc Current Load 3A x 32CH Max 96A (0~36W...72W) x 32CH Max 2304W Output Power : DMX Interface : 3-pin XLR, 5-pin XLR, RJ45, Green terminal... - Page 4 OLED Screen Interface: Press "M" key, switch entries. 5. Dimming Curve Press “ ∧ " or “∨" key to switch dimming curve ∧ Press “ " or “∨" key, parameter adjustment. Long press “M” key, back to main page.
-
Page 5: Wiring Diagram
Wiring diagram: 1 Connecting LED lights: Dimming Mode Color Temperature Mode Mode RGBW Mode... - Page 6 3. The connection diagram of 4 kinds of DMX/RDM terminals: 2. DMX console onnection LT-932-OLED is equipped with 4 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the rest three: RJ45 XLR-5 Connected in Parallel &...
- Page 7 Address setting table 4. The connection diagram of AMP signal amplifier terminal Mode RGBW Mode RGBW Address Address Quantity Quantity Resolution 8bit 8bit 8bit 8bit Resolution 16bit 16bit 16bit 16bit Channel Channel AMP interface can be used for signal amplification when too many DMX decoder are connected or signal line is too long, signal amplification should be no more than 5 times continuously.
-
Page 8: Warranty Agreement
Attention: 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. 3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
