Ltech LT-932-OLED Quick Start Manual

OLED display
8 bit / 16 bit
4 kinds of DMX interfaces
Dimming Curve: 0.1~9.9
E500585
Protection: OTP/OCP/SCP
www.ltech-led.com
www.ltech-led.com
Product introduction
1. Designed for Hi-power multiple channels application, 32 channels output, and Max.
3A current per channel, up to 2304W output power.
2. Easy operation with OLED screen and touch buttons.
3. 4 kinds of mode optional: single color, color temperature, RGB and RGBW.

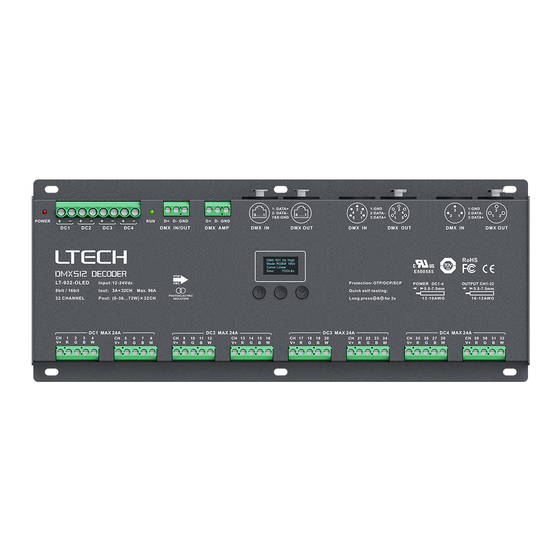

LT-932-OLED
4. 3-pin XLR, 5-pin XLR, RJ45 and green terminal DMX interface with photoelectric
5. With
Photoelectric
6. With firmware upgrade function.
isolation
7.
8. With power-on state management and fast self-testing function.
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
10. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
3-pin XLR
isolation, improve signal transmission efficiency and anti-interference ability, the
green terminal also has signal amplifier function.
RDM remote management protocol,
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
With short circuit, over current and over temp. protection, as well as warning function
when fault.
100%
0.9
Output
Brightness
<1
>1
0
DMX Value
5-pin XLR RJ45 RDM Photoelectric
isolation
the operations can be completed via the
1.0
0.8 6.5
3.5
Gamma Value
2.5
1.5
255
Short circuit Over temp. Over current
protection
protection protection
1
Display
