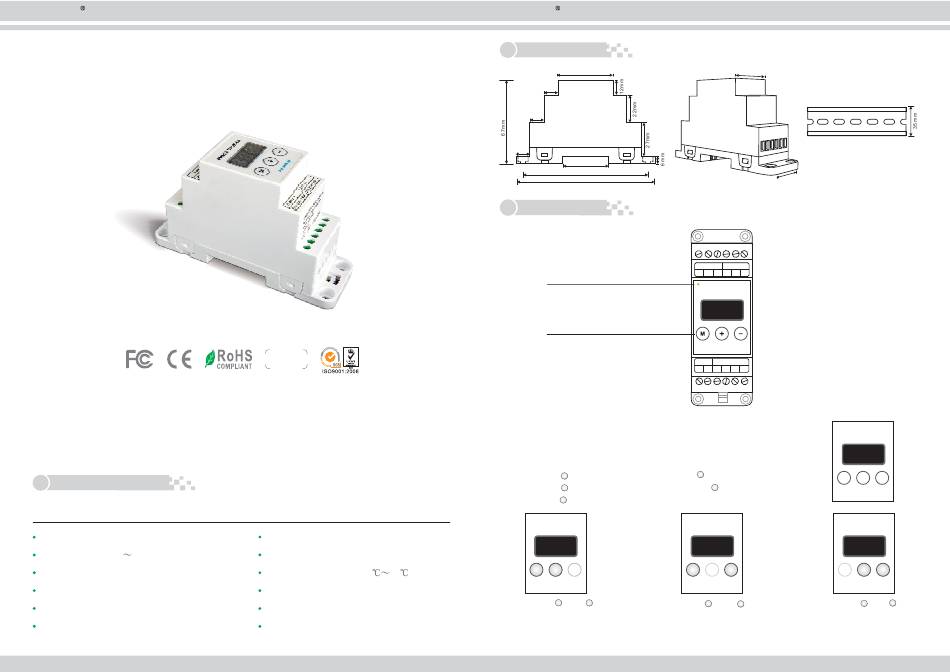

Ltech DIN-DMX-5A Manual

LTECH
DIN-DMX-5A
DMX DECODER
(DIN Rail, Screw dual-use)
DIN-DMX-5A DIN rail type decoder is designed to convert universal DMX512 signal into PWM signal, it
can work with DMX512 console, with 256 levels gray scale output per channel, realize 0-100% brightness
and various changing effects, can control single color, two color, RGB LED light.
in 3 digits digital tube . Simple, intuitive read and write DMX address, meanwhile have the self-testing
pattern function.
1. Product Parameter:
DIN-DMX-5A CV DMX Decoder:
Input Signal: DMX512
Input Voltage: DC5V DC24V
Max Load Current: 5A ×3CH Max 15A
Max Output Power: 75W/180W/360W/(5V/12V/24V)
Gray Scale Level: 0~256 Levels/CH
Frame Rate: Max 850 FPS
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
DIN-DMX-5A DMX Decoder Manual
warranty
5 years
Display DMX address
Mounting: DIN Rail or Screw
DIN Rail: TS-35/7.5 or TS-35/15
Working Temperature: -30 55
Dimensions: L112×W35×H67(mm)
Package Size: L114×W37×H70(mm)
Weight (G.W): 120g
1
WWW.LTECHONLINE.COM
LTECH
2. Product Size:
44mm
11mm
11mm
12mm
36mm
100mm
112mm
3. Function Key:
Running light
The running lights flash quickly when input
DMX signal. Flash frequency depends on
received frame rate. The running light
flashes as usual without DMX input.
M KEY
Short press: enter DMX decoder mode.
Long press: enter self-testing scene mode.
A. DMX Decoder Mode.
Address Setting:
In DMX Decoder Mode, first press "+" or "-" key to enter address setting. Changing
the DMX initial address when the 3 address value start to flicker. (Range:001-512)
Short press , add one more address, long press
+
Short press , subtract one more address, long press
-
Short press to quit.
M
DMX512 DECODER
C - L
+
M -
DIN-DMX-5A
Long press and key
M + Long press
at the same time, set the
at the same time, set the
brightness output to linearity
brightness output to Gamma
curve (C-L). curve (C-E)
Tel: +86 756 620 8823 Fax: +86 756 620 8833
DIN-DMX-5A DMX Decoder Manual
35mm
Can be installed on DIN rail
2 4 m m TS-35/7.5 or TS-35/15
DIN rail, screw dual-use
DMX IN DMX OUT
D+ D- GND D+ D- GND
DMX512 DECODER
DIN-DMX-5A
POWER
OUTPUT
D+ D- CH1 CH2 CH3 V+
DMX512 DECODER
0 0 1
+ , address increase quickly.
M +
, address decrease quickly.
-
DIN-DMX-5A
DMX512 DECODER DMX512 DECODER
C - E C - L
+ +
M - M
DIN-DMX-5A DIN-DMX-5A
Long press
and key +
M -
at the same time, check the
present luminosity curve.
2
