Ltech DIN-DMX-350 Manual

DIN-DMX-350
CC DMX/RDM DECODER
(DIN Rail, Screw Dual-use)
DIN-DMX-350 DIN Rail DMX decoder have 3 digits digital tube to display DMX address, simple
and intuitive read and write DMX address, meanwhile have the self-testing pattern function. With
the standard RDM remote device management protocol, supports DMX512 signal bi-directional
communication, achieves remote management of reading and writing DMX address (DMX master
controller must recognize the RDM protocol).
DIN-DMX-350 can work with DMX512 console; realize 0-100% brightness and various changing
effects, can control single color, bi-color, RGB LED light . s
1. Product Parameter:
DIN-DMX-350 CC DMX/RDM Decoder:
Input Signal: DMX512, RDM
Input Voltage: 12~48Vdc
Output Voltage:
3~46Vdc
Max. Load Current: 350mA × 3CH
Max. Output Power:
(1.05W~16.1W) × 3CH Max. 48.3W
Dimming Range: 0~100%
Mounting:
DIN Rail or Screw
DIN-DMX-350 CC DMX/RDM Decoder
DIN Rail Mounting Size: TS-35/7.5 or TS-35/15
Protection: Short circuit / Over current
Working Temperature: -30℃~55℃
Dimensions: L112×W35×H67(mm)
Package Size: L114×W37×H70(mm)
Weight (G.W): 135g
1

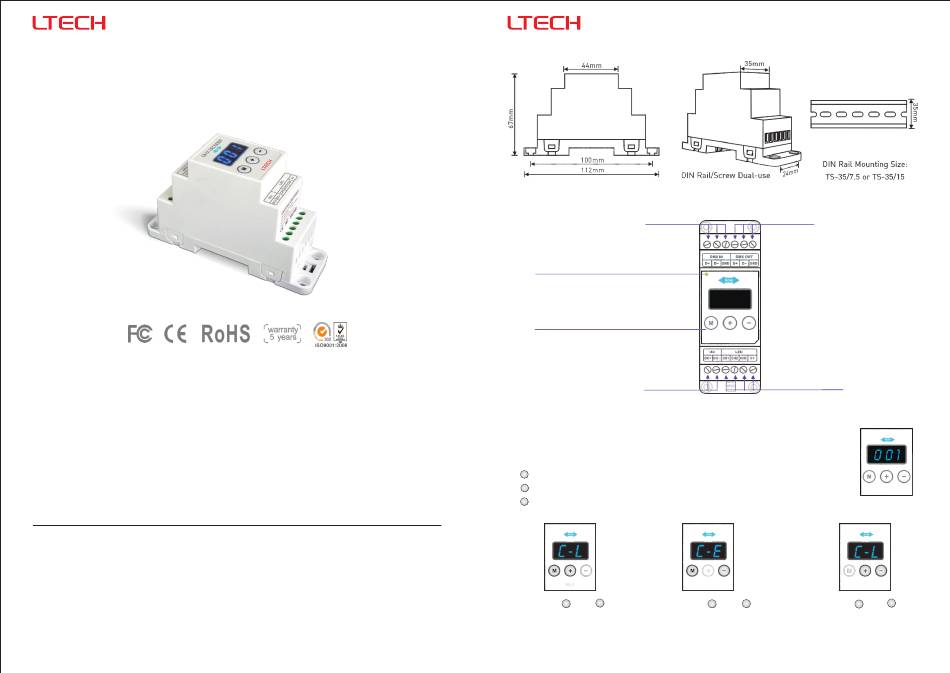

2. Product Size:
3. Function Key:
DMX/RDM
signal input
Running Light
The running light flashes quickly when input
DMX signal. Flash frequency depends on
received frame rate. The running light
flashes as usual in free time.
M KEY
Short press: enter DMX decoder mode.
Long press: enter self-testing scene mode.
12 48Vdc
power input
3.1 DMX Decoder Mode.
Address Setting:
In DMX Decoder Mode, first press "+" or "-" key to enter address setting. Changing
the DMX initial address when the 3 address value start to flicker. (Range: 001-512)
:
+ Short press to add one more address, long press to
: Short press to subtract one more address, long press to subtract quickly.
-
: Short press to quit.
M
Long press and + key Long press
M
at the same time, set the at the same time, set the
brightness output to linearity brightness output to Gamma
curve (C-L). curve (C-E)
DIN-DMX-350 CC DMX/RDM Decoder
DMX/RDM
signal output
LED lamps
connection
add quickly.
and key Long press and
+
M -
at the same time, check the
present luminosity curve.
2
www.ltech-led.com
key
-
