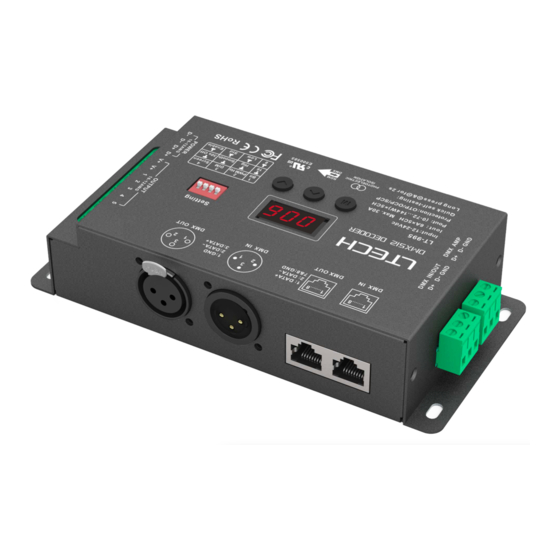

LT-995
8 bit / 16 bit
Photoelectric
3 kinds of DMX interfaces
isolation
Short circuit / Over current / Overheat protection
CHANNELS
006
www.ltech-led.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT-995 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ltech LT-995

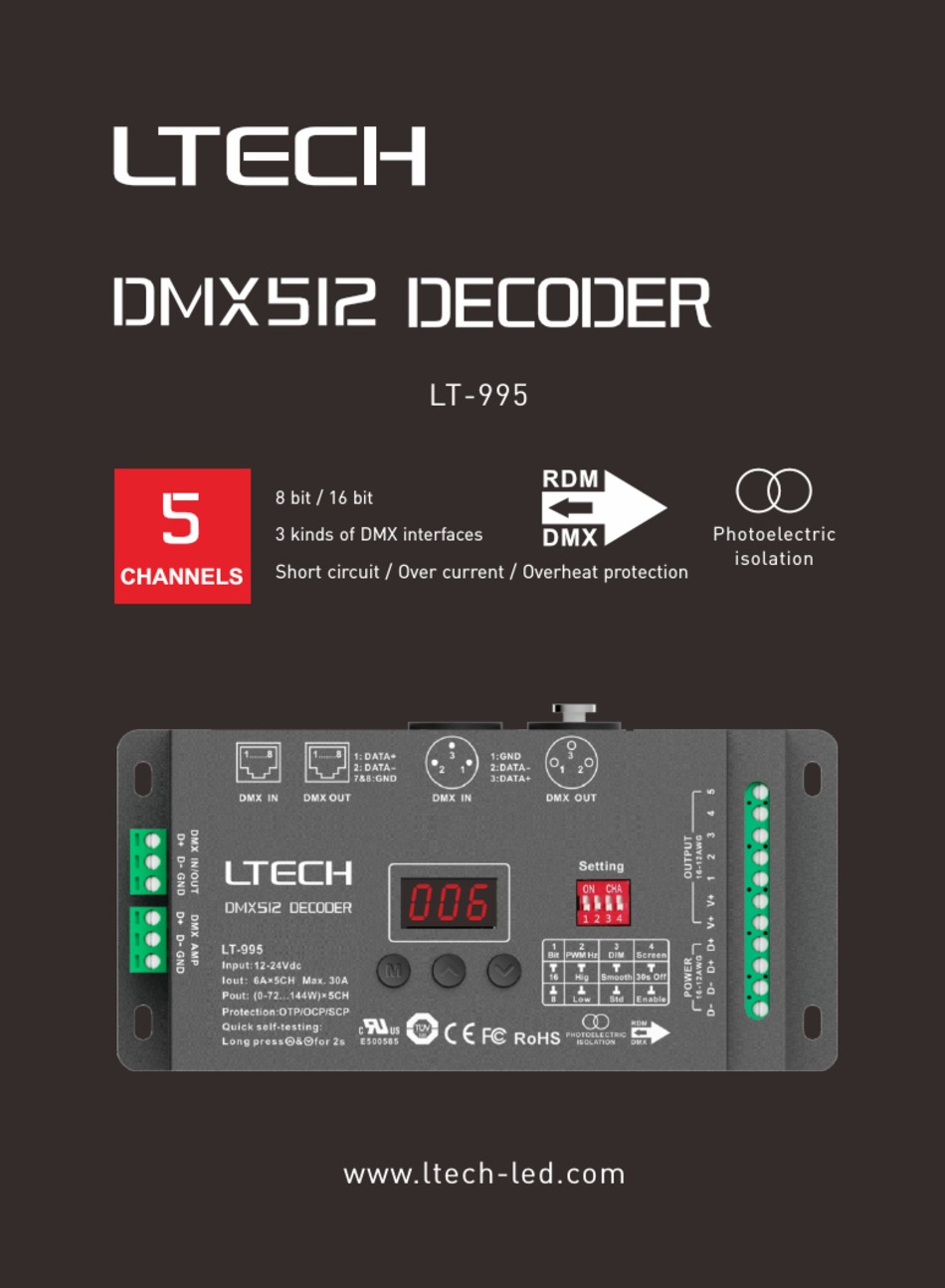

  • Page 1 LT-995 8 bit / 16 bit Photoelectric 3 kinds of DMX interfaces isolation Short circuit / Over current / Overheat protection CHANNELS www.ltech-led.com...
  • Page 2: Product Introduction

    Product Introduction 1. Designed with 5 channels output, and Max. 6A current per channel, up to 720W output power. 2. Easy operation with digital display and the touch buttons. 3. 3-pin XLR, RJ45 DMX and green terminal interface with photoelectric isolation, improve signal transmission efficiency and anti-interference ability, the green terminal also has signal amplifier function.
  • Page 3: Technical Specs

    TechnicalSpecs LT-995 Model: Input Signal: DMX512/RDM Input Voltage: 12~24Vdc 6A × 5CH Max. 30A Current Load (0~72W...144W) × 5CH Max. 720W Output Power: DMX Interfaces: 3-pin XLR, RJ45, green terminal Grey Level: 8bit (256 levels) / 16bit (65536 levels)
  • Page 4: Product Size

    Product Size Unit: mm Main Component Descripition: Digital display switch Green terminal Green terminal LED lamp connection DMX/RDM input & output 12-24Vdc Power input Digital display Dip switch Digital display will enter the locked mode without operating after 15S.
  • Page 5: Wiring Diagram

    Wiring Diagram 1. DMX console onnection LT-995 is equipped with 3 kinds of DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the rest two: RJ45 & green terminal (with amplifier function).
  • Page 6 2 Connecting LED lights: DMX/RDM Signal DMX/RDM Signal RGBWY LEDs LT-995 LED driver 12-24Vdc RGBWY LEDs...
  • Page 7 3. The connection diagram of 3 kinds of DMX/RDM terminals: 3-pin XLR Resistor connected terminal LT-995 LT-995 LT-995 in parallel RJ45 Resistor connected terminal LT-995 LT-995 LT-995 in parallel Terminal Resistor Green terminal connected in parallel These 3 terminals can be connected in a mixed way.
  • Page 8 Work with RDM Editor LT-995 can work with LTECH RDM editor (Model: WiFi-RDM01) to realize changing the parameters by long-range setting, wiring diagram as below: WiFi-RDM01 5-24Vdc Power input LT-995 LT-995 LT-995...
  • Page 9 RDM Editor App Interface Instructions Download the App, setting LT-995 parameters (dimming range, brightness, boot fade time etc.) after well connecting the RDM editor, more details, please check the manual of WiFi-RDM01. Well installation of products first, then working with WiFi -RDM01 to realize setting parameters and firmware upgrade by App.
  • Page 10: Warranty Agreement

    1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
