Summary of Contents for Ltech LT-912-OLED

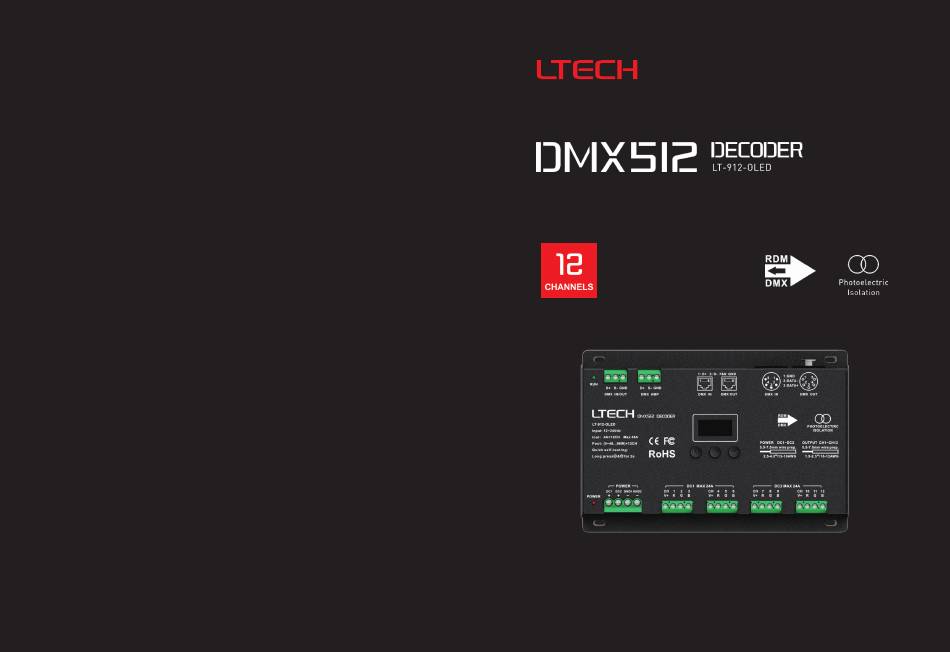

- Page 1 OLED display 8 bit / 16 bit 3 kinds of DMX interfaces Dimming Curve: 0.1~9.9 Shortcut / Over load protection www.ltech-led.com...
-
Page 2: Product Introduction
Product Introduction: 1. Designed for Hi-power multiple channels application, 12 channels output, and Max. 4A current per channel, up to 1152W output power. 2. Easy operation with OLED screen and the touch buttons. 3. 3 kinds of mode optional: single color, color temperature, RGB. -
Page 3: Technical Specs
Main Component Descripition: Technical Specs: Model LT-912-OLED OLED screen DMX512/RDM Input Signal Input Voltage 12 24Vdc Signal indicator Current Load × 12CH Max 48A Output Power : (0~48W...96W) × 12CH Max. 1152W DMX Interface : 5-pin XLR, RJ45, Green terminal... - Page 4 OLED Screen Interface: OLED Screen Interface: Press “∧" or “∨" key to switch dimming 5. Dimming Curve DMX: 001 Hz: High curve. Mode: RGB 8bit Optional : Standard Press "M" key, switch entries. Curve: Standard Linear Press "∧" or “∨" key, parameter adjustment.
-
Page 5: Wiring Diagram
Wiring diagram: 1 Connecting LED lights: Dimming Mode Mode Mode... - Page 6 3. The connection diagram of 3 kinds of DMX/RDM terminals: 2. DMX console onnection LT-912-OLED is equipped with 3 types DMX terminals for users’ selection. The following diagram takes 5-pin XLR as an example, same connecting method for the rest two: RJ45 &...
- Page 7 Address setting table 4. The connection diagram of AMP signal amplifier terminal Mode Mode Address Address Quantity Quantity Resolution Resolution 8bit 8bit 8bit 16bit 16bit 16bit Channel Channel AMP interface can be used for signal amplification when too many DMX decoder are connected or...
-
Page 8: Warranty Agreement
Attention: 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. 3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
