Installation; Installation Method - urmet domus iPerCom Mikra2 1060 Installation Handbook

3 INSTALLATION

3.1 INSTALLATION METHOD

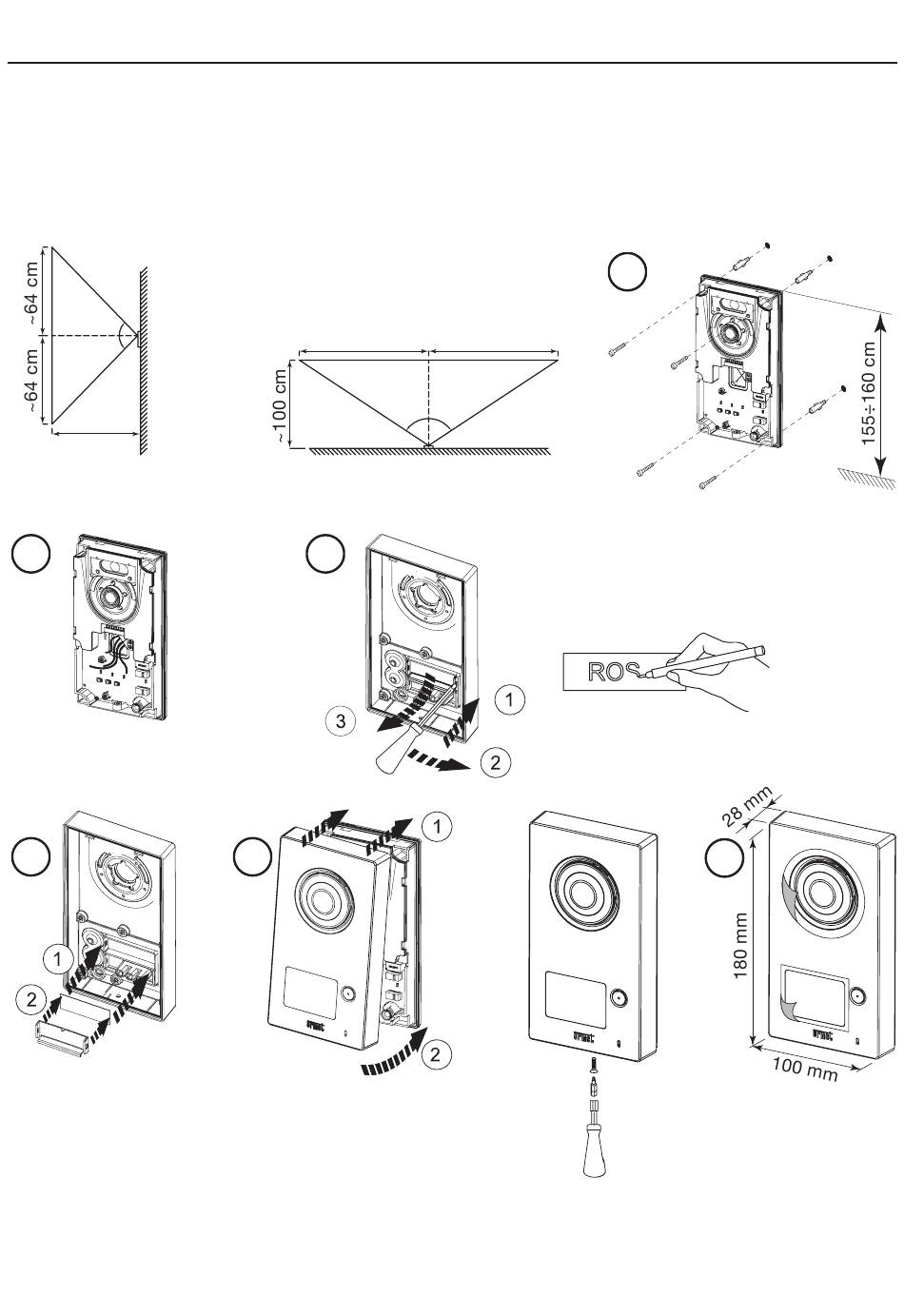

• Install the panel at the indicated heights checking that the caller is framed by the camera.
• Connect the wires to the terminal boards.
• Fit the name tags on the front.
• Program the device.
• Close the metal lid of the panel.
• Remove the protective fi lms.
65°Max.
~100 cm
Vertical camera range
2
4
DS1060-134A
~92 cm
Horizontal camera range
3
5
~92 cm
85°Max.
1
6
9
