2 DESCRIPTION OF COMPONENTS

1.
Speaker.
2.
Camera lighting LED.
3. Camera.
4. Name tag(s).
5. Calling button.
6. Microphone.
7.
Front closing screw.
8. Connector for connecting to the LAN.
9. Do not change the position of this Jumper.
10. Terminal for external power supply 48Vdc.
11. Hole for running wires.
12. Do not change the position of this trimmer.
13. Button for restarting the device.
14. Do not change the position of this trimmer.
15. Anti-refl ection seal.
8

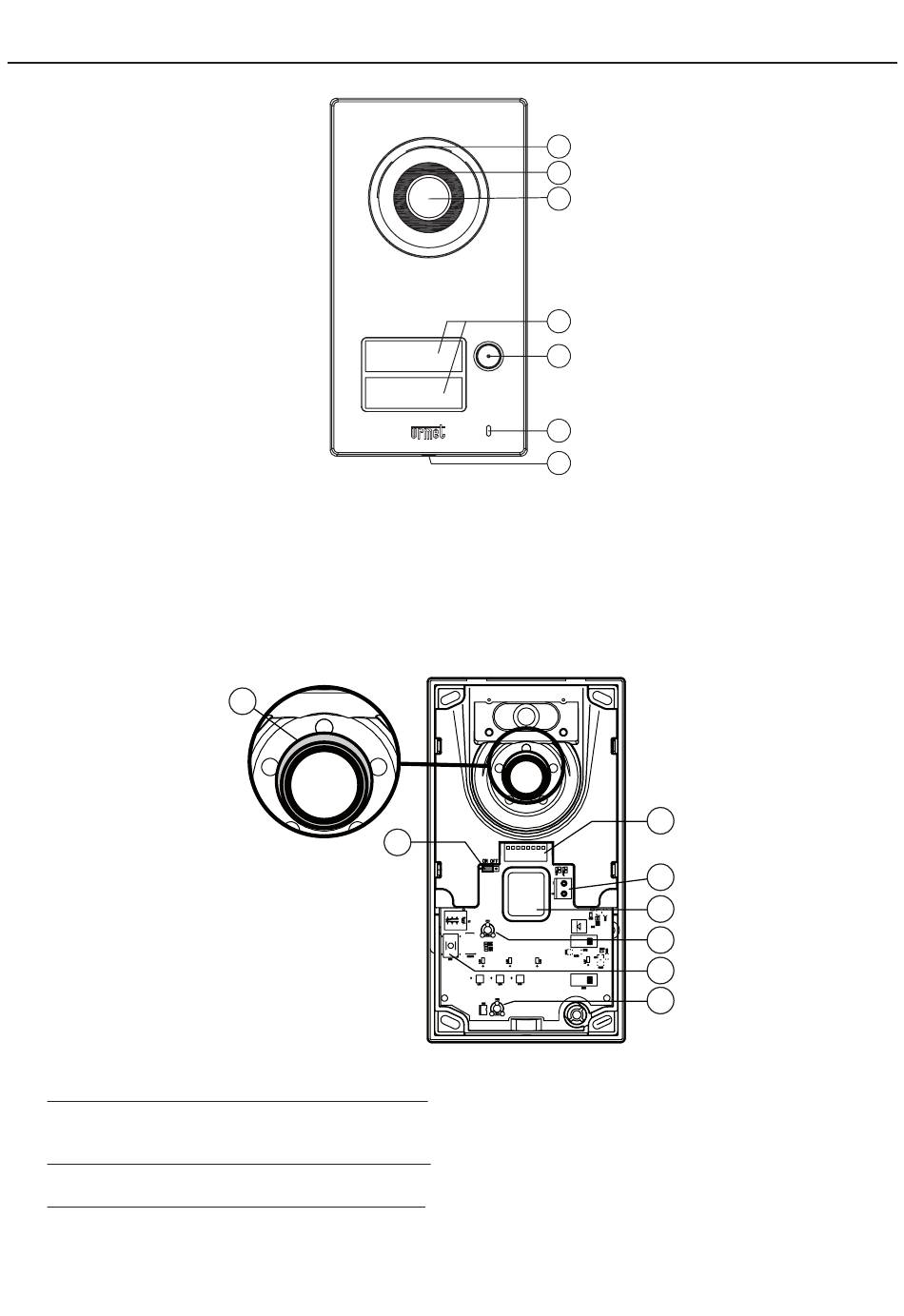

FRONT VIEW
INSIDE VIEW
15
9
1
2
3
4
5
6
7
8
10
11
12
13
14
