Figure 3-4:
7. Press F1 Set RPM if the speed is correct.
8. Press Enter to collect normal vibration data.
3.4 Detect turning speed for equipment set up for RPM
1. From the analyzer Home screen, press F8 Route.
2. Activate a route.
3. From the Route Data Collection screen, press F12 Laser Speed Detection.
Figure 3-5:
The Laser Speed Detection screen appears.
4. Use the up and down arrow keys to select the speed range, and press
Enter.

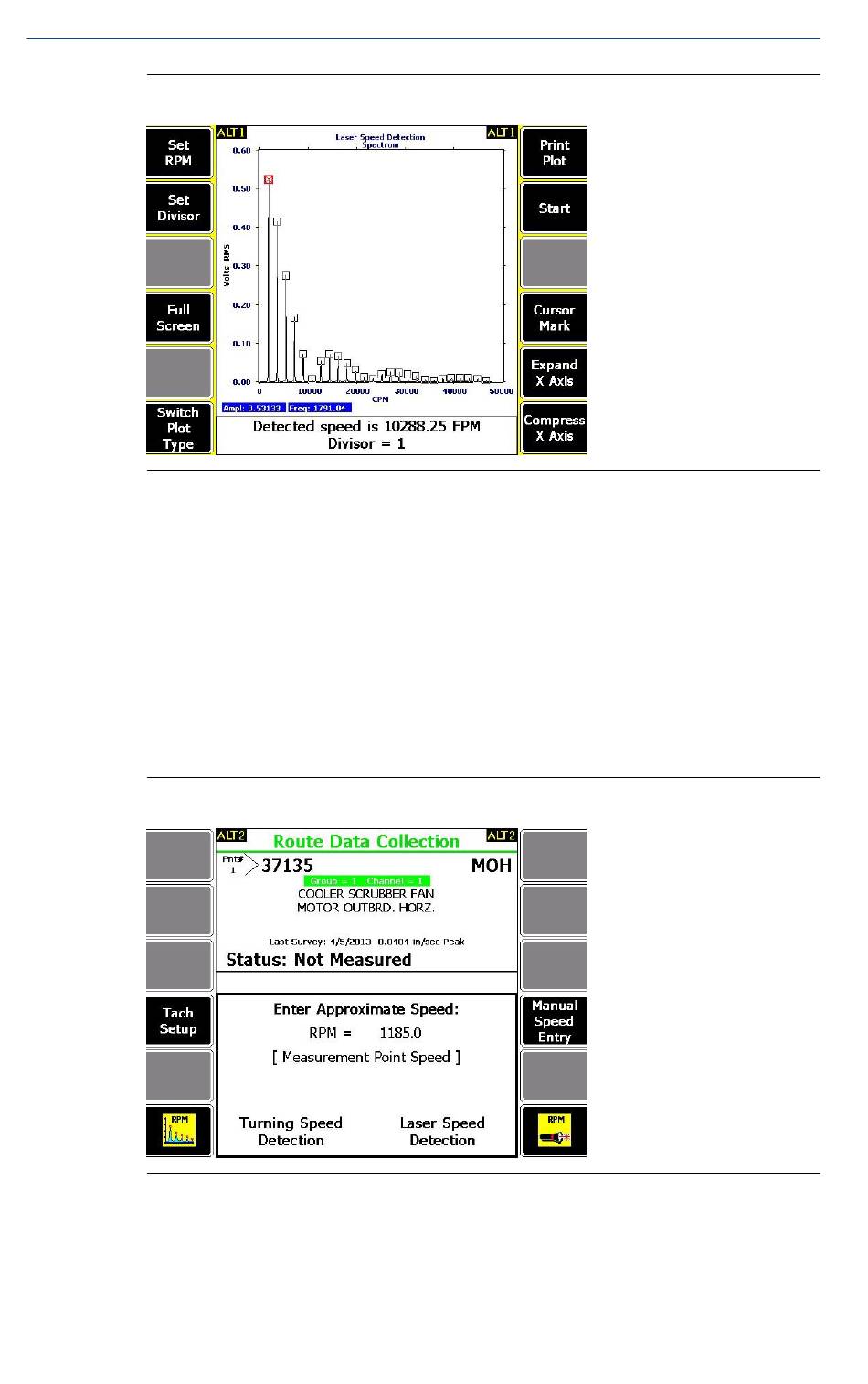

Laser Speed Detection Spectrum screen
Route Data Collection screen
