User Guide
MHM-97020, Rev 11
August 2018
Emerson 430 SpeedVue Laser Speed
Sensor
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the SpeedVue 430 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson SpeedVue 430

Summary of Contents for Emerson SpeedVue 430

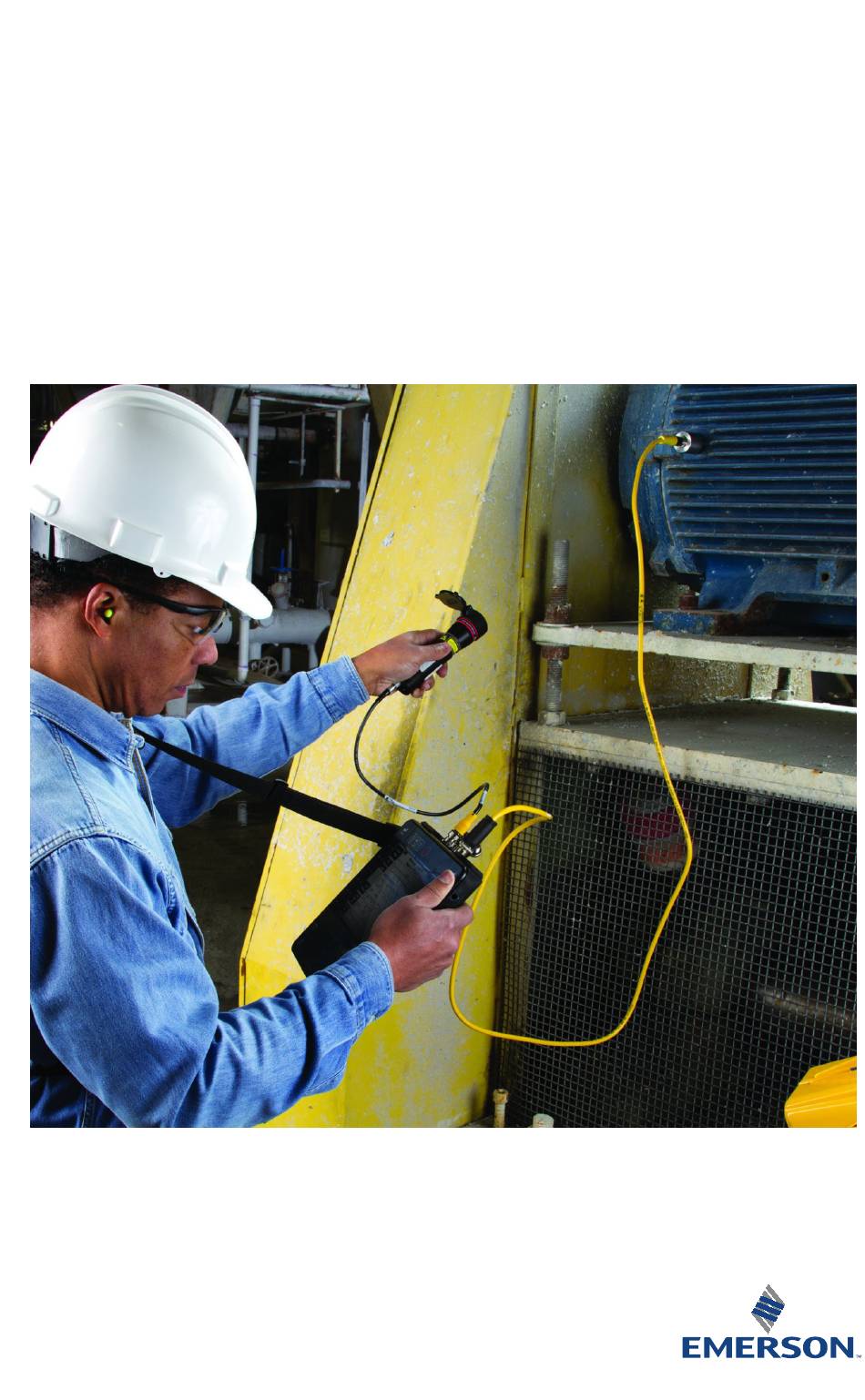

  • Page 1 User Guide MHM-97020, Rev 11 August 2018 Emerson 430 SpeedVue Laser Speed Sensor User Guide...
  • Page 2 User Guide August 2018...
  • Page 3 Information in this document is subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is not all- inclusive and cannot cover all unique situations.
  • Page 4 User Guide August 2018 Contents Emerson 430 SpeedVue overview ....5 Technical specifications ......24 Install the Emerson 430 SpeedVue ....13 Use the Emerson 430 SpeedVue with the AMS 2140 Machinery Health Analyzer ....18...
  • Page 5 The Emerson 430 SpeedVue uses laser light to detect rotational speed without reflective tape. Using reflective tape may enhance the return signal, but in ideal cases, the Emerson 430 SpeedVue does not require any tape or paint marks and may function up to approximately 30 feet away from the equipment.
  • Page 6 ATEX-certified AMS 2140 even in a safe area. WARNING! Do not use the Emerson 430 SpeedVue in a hazardous location. WARNING! For proper use of the Emerson 430 SpeedVue with your analyzer, refer to the analyzer’s approved installation drawing.
  • Page 7 For visible-light lasers, Class 3B lasers’ output power is between 5 and 499 milliwatts. Note The Emerson 430’s output power is <5mW. The IEC identifies the laser as class 3B due to the duration of time the laser can be exposed during operation.
  • Page 8 User Guide August 2018 As the laser power increases, the risk of eye injury also increases. At the high end, around 250 to 500 milliwatts, even a brief exposure could cause retinal damage. Avoid all eye exposure to beams from Class 3B lasers. This includes unintentional or accidental exposures.
  • Page 9 Sunglasses are NOT laser protective eyewear. They are not rated to ensure light-attenuating protection. Most sunglasses will not block enough laser light to significantly reduce hazardous exposures. Markings The Emerson 430 has a laser radiation label that warns users to avoid exposure to the laser beam. Figure 1-1: Laser warning icon...
  • Page 10 User Guide August 2018 Emerson 430 SpeedVue side view with labels Figure 1-2: Side view with example labels A. Laser aperture. B. Beam attenuator. C. Laser label. D. Mounting hole (3/8-24 thread). E. Identification and CE label.
  • Page 11 The provided cable functions as a key. Without the proper installation of the cable to the AMS 2140 and the Emerson 430, power will not be provided to the Emerson 430. When the Emerson 430 is not in use, the Emerson 430 and the cable should be disconnected from the AMS 2140 analyzer and should not be available to untrained users.
  • Page 12 To avoid scratching the window, ensure all loose dirt and grit are removed by the blower/brush before wet cleaning. Note Keep the beam attenuator (dust cap) closed when the Emerson 430 SpeedVue is not in use. WARNING! Do not attempt to clean the optical window if the laser is on. Turn off the power and disconnect the power/signal cable from the Emerson 430 SpeedVue.
  • Page 13 3/8-24 thread mount On the side of the Emerson 430 SpeedVue is a 3/8-24 threaded hole for use with Emerson’s Magnetic Swivel Base (B404-BASE). The Magnetic Swivel Base provides a strong magnetic mount for precise speed measurements and unlimited positioning.
  • Page 14 Mount the Emerson 430 SpeedVue onto the AMS 2140 You can use a sensor holder to mount the Emerson 430 SpeedVue onto the AMS 2140. Use the shoulder strap connectors on either side of the analyzer to attach the sensor holder.
  • Page 15 AMS 2140. 3. Release the buttons to secure the sensor holder. 4. Slide the Emerson 430 SpeedVue into the clamp on the sensor holder until secure. Rotate the clamp 360 degrees to set the Emerson 430 SpeedVue laser...
  • Page 16 August 2018 Figure 2-2: Emerson 430 SpeedVue mounted onto the AMS 2140 5. To remove the sensor holder from the AMS 2140, press and hold the two buttons on the sensor holder, and then pull to remove the holder from...
  • Page 17 Emerson 430 SpeedVue after a measurement. Procedure 1. Connect the analyzer and the Emerson 430 SpeedVue using the power cable. 2. Flip the toggle switch on the bottom of the Emerson 430 SpeedVue to the On position.
  • Page 18 • Detect turning speed for equipment set up for RPM • Automatically turn off the Emerson 430 SpeedVue after a measurement Detect the machine speed for non-route equipment 1. From the analyzer Home screen, press F7 Analyze. 2. Press F12 Laser Speed Detection on the Analyze main menu to activate the Emerson 430 SpeedVue.
  • Page 19 August 2018 User Guide The speed is automatically set and displayed at the bottom of the screen. Figure 3-2: Laser Speed Detection Spectrum screen Plot options After you collect the data, the Route and Analyze programs display the following keys to help you work with the data in the plot. Option Description (Analyze program only) Return to the Analyze main menu.
  • Page 20 User Guide August 2018 Figure 3-3: Route Data Collection screen The Laser Speed Detection screen appears. 5. Use the up and down arrow keys to select the speed range, and press Enter. Note The speed range menu from Route defaults to the measurement point speed range.
  • Page 21 August 2018 User Guide Figure 3-4: Laser Speed Detection Spectrum screen 7. Press F1 Set RPM if the speed is correct. 8. Press Enter to collect normal vibration data. Detect turning speed for equipment set up for RPM 1. From the analyzer Home screen, press F8 Route. 2.
  • Page 22 The correct speed displays on the Route Data Collection screen. 7. Press Enter to collect normal vibration data. Automatically turn off the Emerson 430 SpeedVue after a measurement 1. From the Route Data Collection screen, press ALT > F5 Tach Setup.
  • Page 23 If the Emerson 430 SpeedVue switch is turned On, the laser beam stays on Tach Power ON continuously. Tach Power OFF If the Emerson 430 SpeedVue switch is turned On, the Emerson 430 automatically turns power on for the speed measurement and turns off after the measurement finishes.
  • Page 24 User Guide August 2018 Technical specifications Specifications Operating distance Up to 30 ft (9 m) without reflective tape Up to 100 ft (30 m) with reflective tape Laser class FDA Class IIIa, < 5mw, 650 nm, IEC Class 3B (International) Temperature range 15°-120°...
  • Page 25 LEMO connector ANSI (American National Standards Institute) conventions magnetic mount 13, 14 mounting methods cable AMS 2140 13, 14 cleaning the Emerson 430 magnetic mount 13, 14 compliance Compress X Axis Cursor Mark operating distance output voltage dynamic range plot options...
  • Page 26 User Guide August 2018 technical specifications technical support weight temperature range tripod mounting 13, 14...
  • Page 27 All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are property of their respective...
