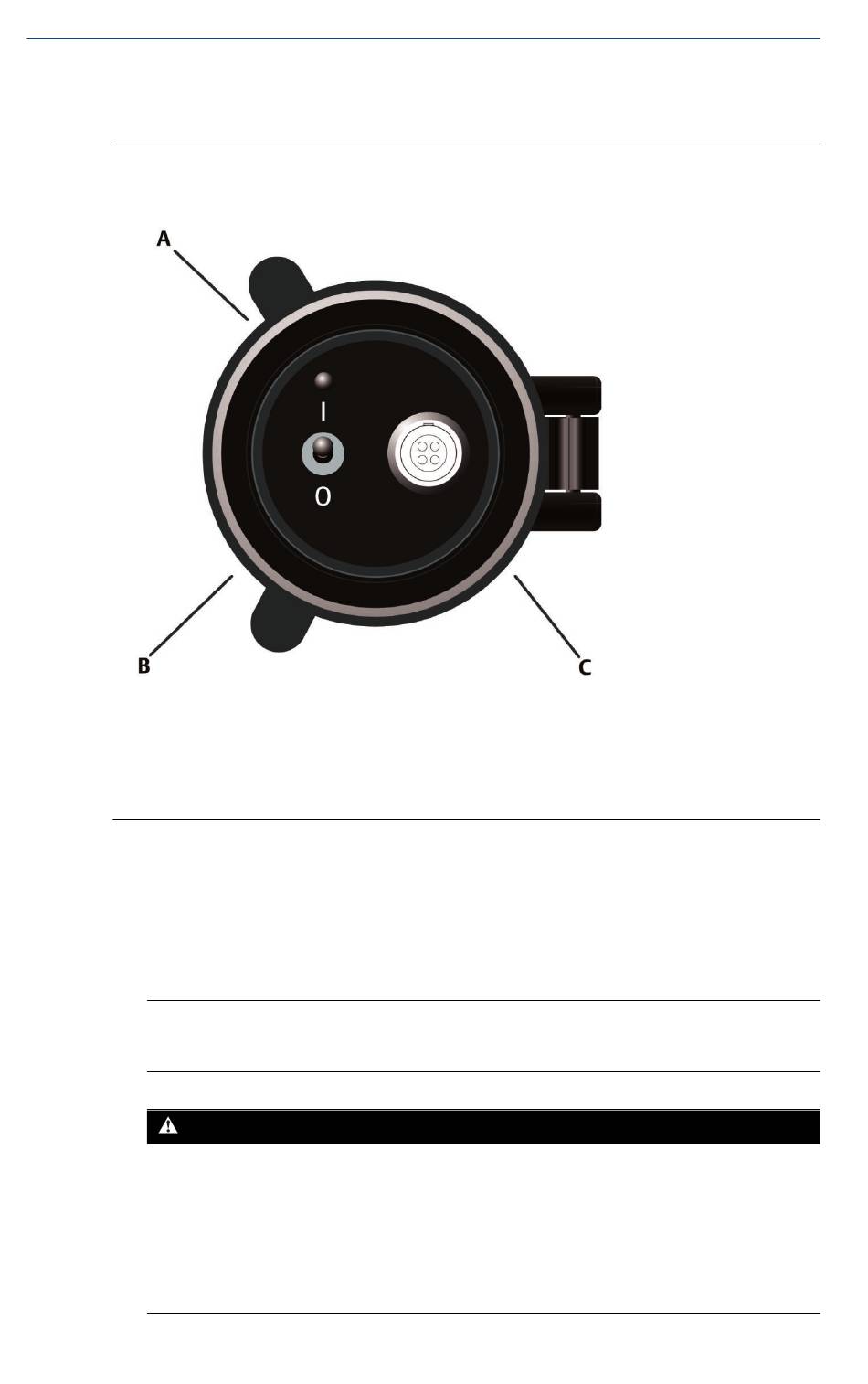

1.7 Emerson 430 SpeedVue bottom view
Figure 1-3:
A. Power on indicator.
B. Laser power on/off switch.
C. Signal/power connector.
1.8 Connect the Emerson 430 SpeedVue to the analyzer
1. Push the LEMO connector plug on the cable into the LEMO receptacle on
the Emerson 430 SpeedVue.
Note
Align the red marks, and push the plug straight into the receptacle.
WARNING!
Only trained personnel should have access to the Emerson 430 and cable.
The provided cable functions as a key. Without the proper installation of
the cable to the AMS 2140 and the Emerson 430, power will not be
provided to the Emerson 430. When the Emerson 430 is not in use, the
Emerson 430 and the cable should be disconnected from the AMS 2140
analyzer and should not be available to untrained users.
