The speed is automatically set and displayed at the bottom of the screen.

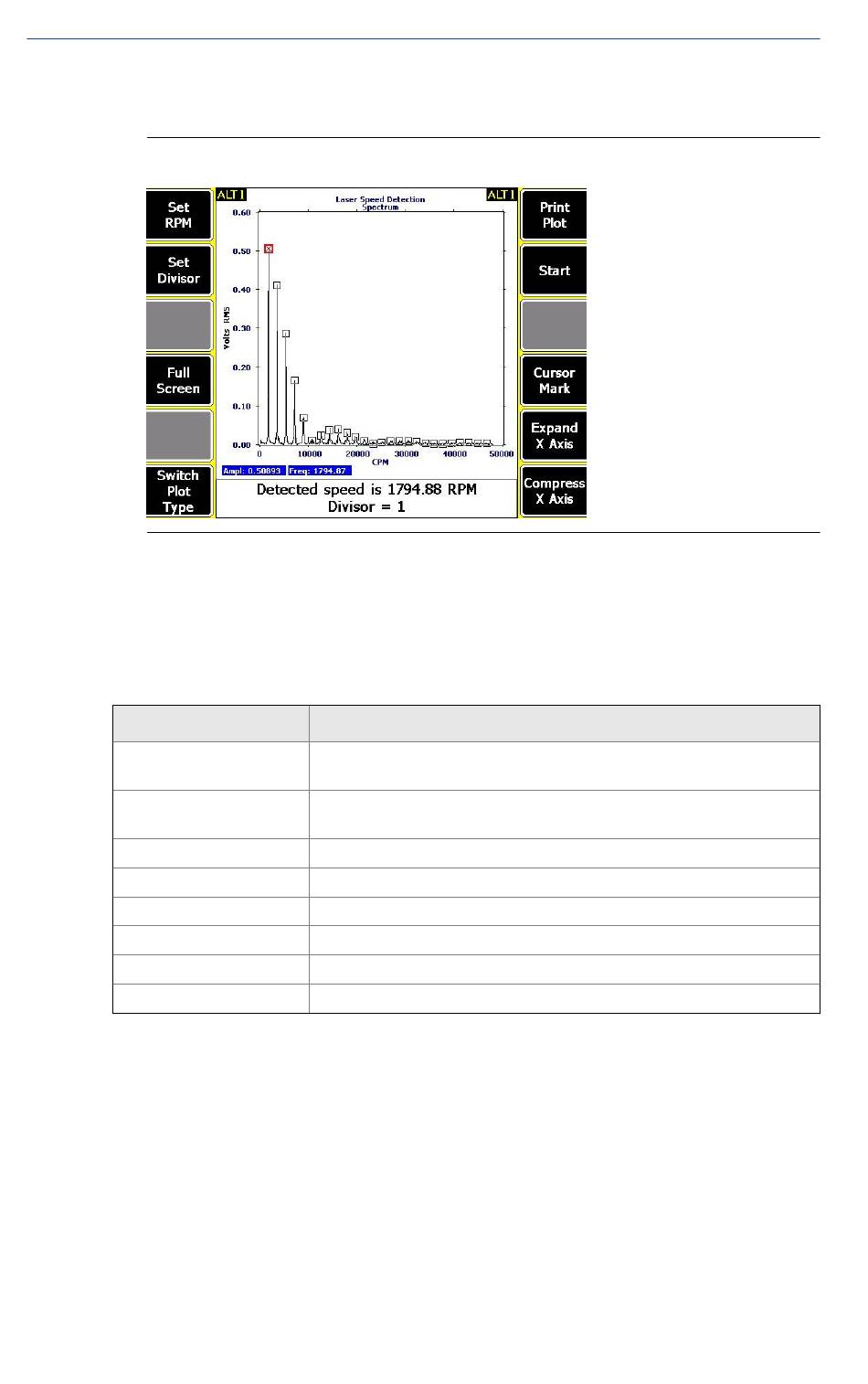

Figure 3-2:
3.2 Plot options
After you collect the data, the Route and Analyze programs display the
following keys to help you work with the data in the plot.
Option
F1 Set RPM
F2 Set Divisor
F4 Full Screen
F6 Switch Plot Type
F8 Start
F10 Cursor Mark
F11 Expand X Axis
F12 Compress X Axis
3.3 Detect turning speed for a variable-speed route point set
up for FPM
1. From the analyzer Home screen, press F8 Route.
2. Activate a route.
3. From the Route Data Collection screen, press F12 Laser Speed Detection
from a variable-speed route point.
4. Press Enter.
Laser Speed Detection Spectrum screen
Description
(Analyze program only) Return to the Analyze main menu. It does not
store the RPM.
Divide the original marked peak by the number entered, and then
mark the new peak.
View a full screen version of the plot.
Select a spectrum or waveform plot.
Select an estimated speed range and begin the measurement.
Mark a frequency and display the speed at that point on the screen.
Expand the axis on the data plot.
Compress the axis on the data plot.
