3 Use the Emerson 430 SpeedVue with the AMS
2140 Machinery Health Analyzer
Topics covered in this chapter:
• Detect the machine speed for non-route equipment
• Plot options
• Detect turning speed for a variable-speed route point set up for FPM
• Detect turning speed for equipment set up for RPM
• Automatically turn off the Emerson 430 SpeedVue after a measurement
3.1 Detect the machine speed for non-route equipment
1. From the analyzer Home screen, press F7 Analyze.
2. Press F12 Laser Speed Detection on the Analyze main menu to activate the
Emerson 430 SpeedVue.

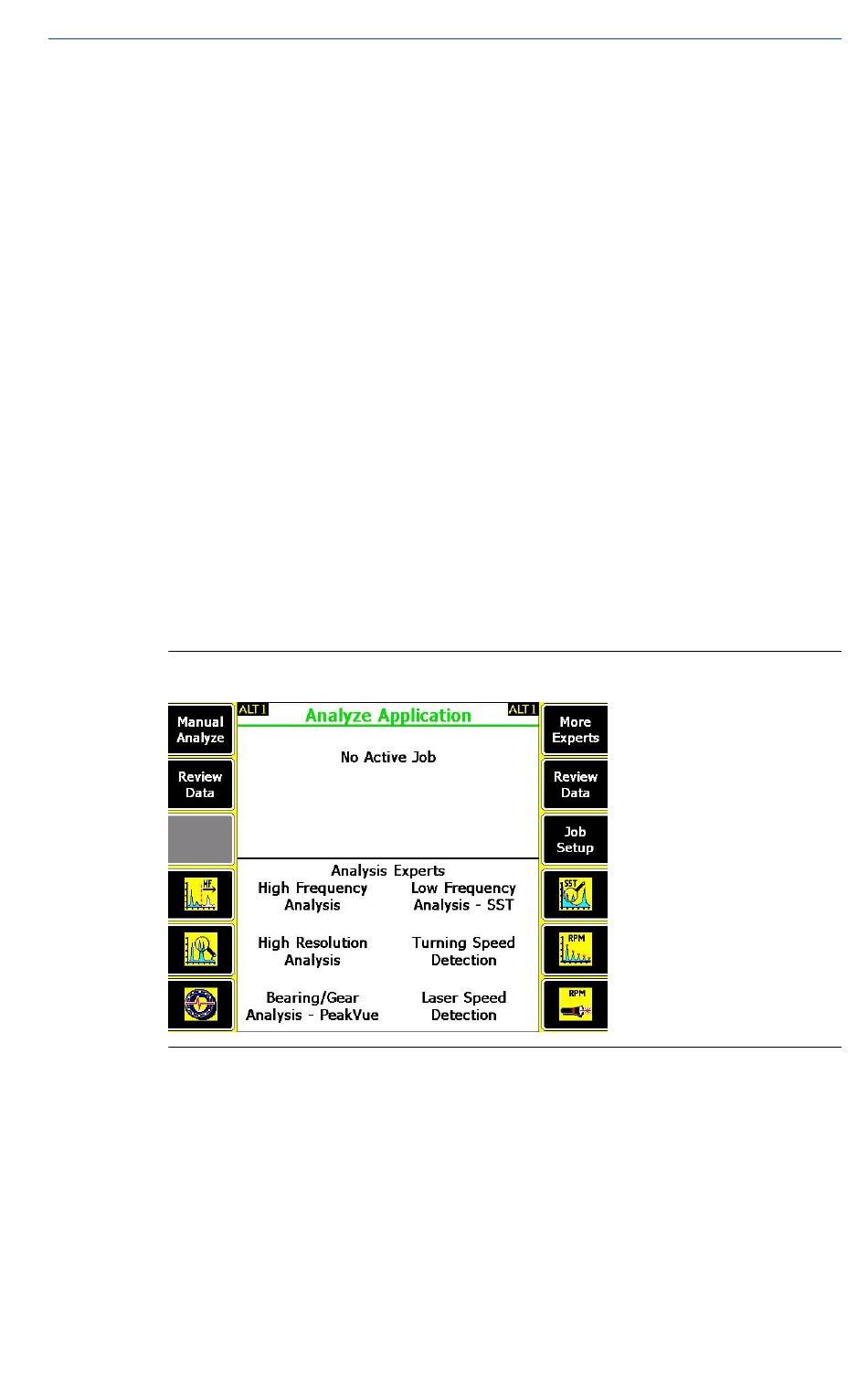

Figure 3-1:
A help message appears to guide you through each step.
3. Press Start.
4. Use the up and down arrow keys to select the speed range, and press
Enter.
A help message appears and data collection begins.
5. Press Enter to view the data.
