Trigger Setup
Set up different trigger settings according to different trigger modes. When choosing
source as D15-D0 in the mode of Edge and Pulse (DS1000D series), only Holdoff is
adjustable. When source is non-digital channel and in slope trigger, only trigger
coupling, trigger sensitivity and Holdoff can be set. For video trigger, Sensitivity and
Holdoff can be set. For the pattern trigger and the duration trigger (DS1000D series),
only Holdoff is adjustable.

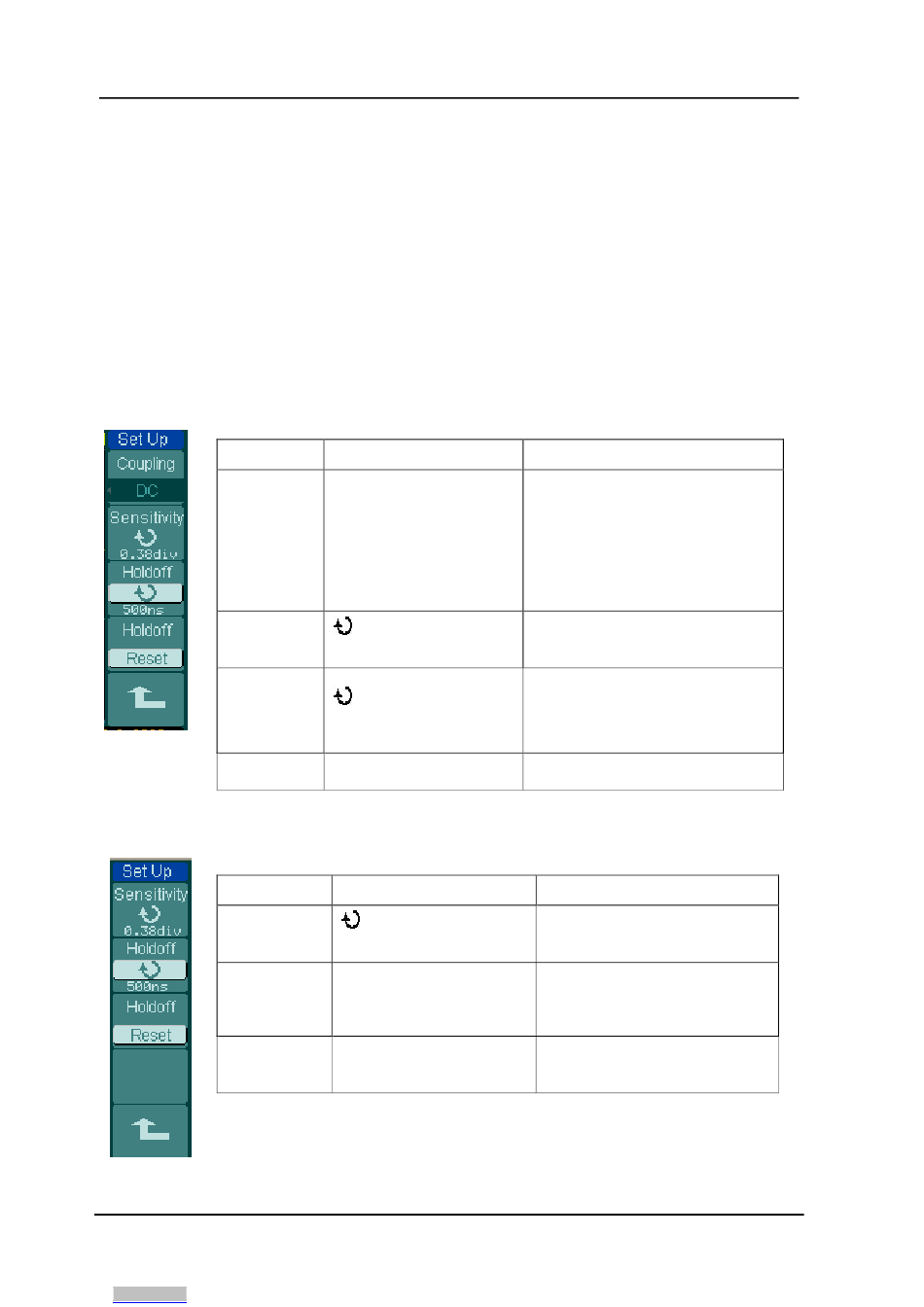

Figure 2- 63 Table 2- 39 The Trigger Set Up Menu (Settings for trigger coupling,
Figure 2- 64 Table 2- 40 The Trigger Set Up Menu (Settings for sensitivity and
2-48
