RIGOL
Programming Guide
DS1000CA Series Digital
Oscilloscope

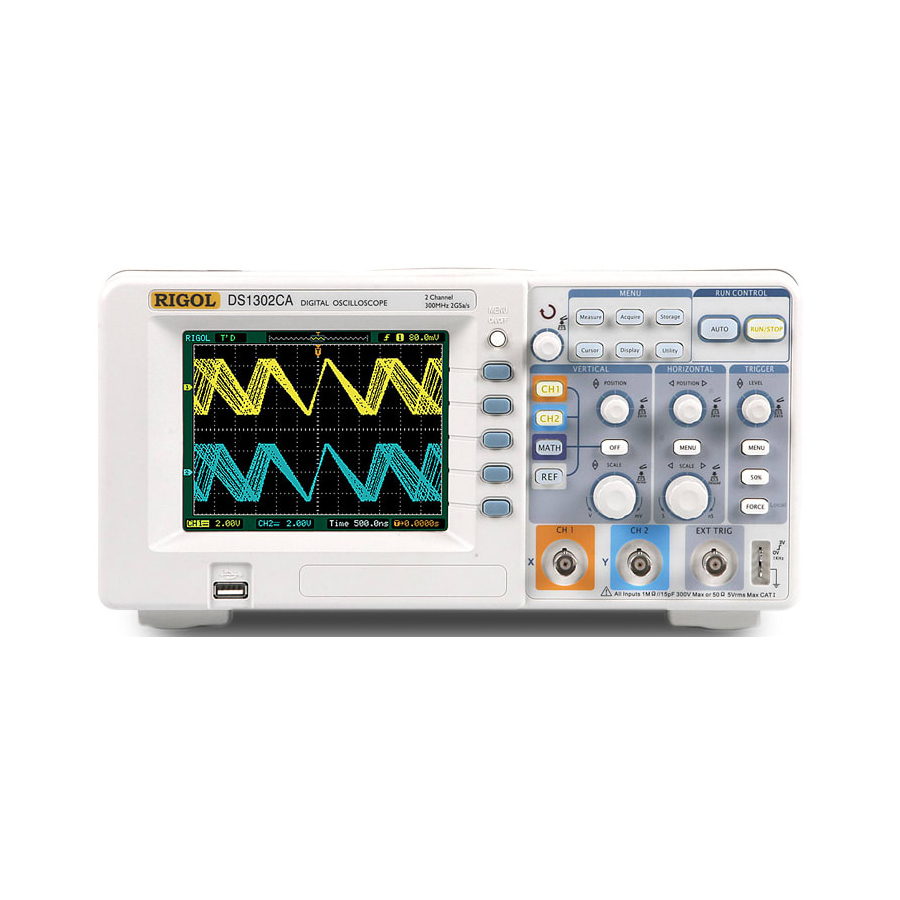

DS1302CA, DS1202CA, DS1102CA, DS1602CA
Sept. 2010
RIGOL Technologies, Inc.
