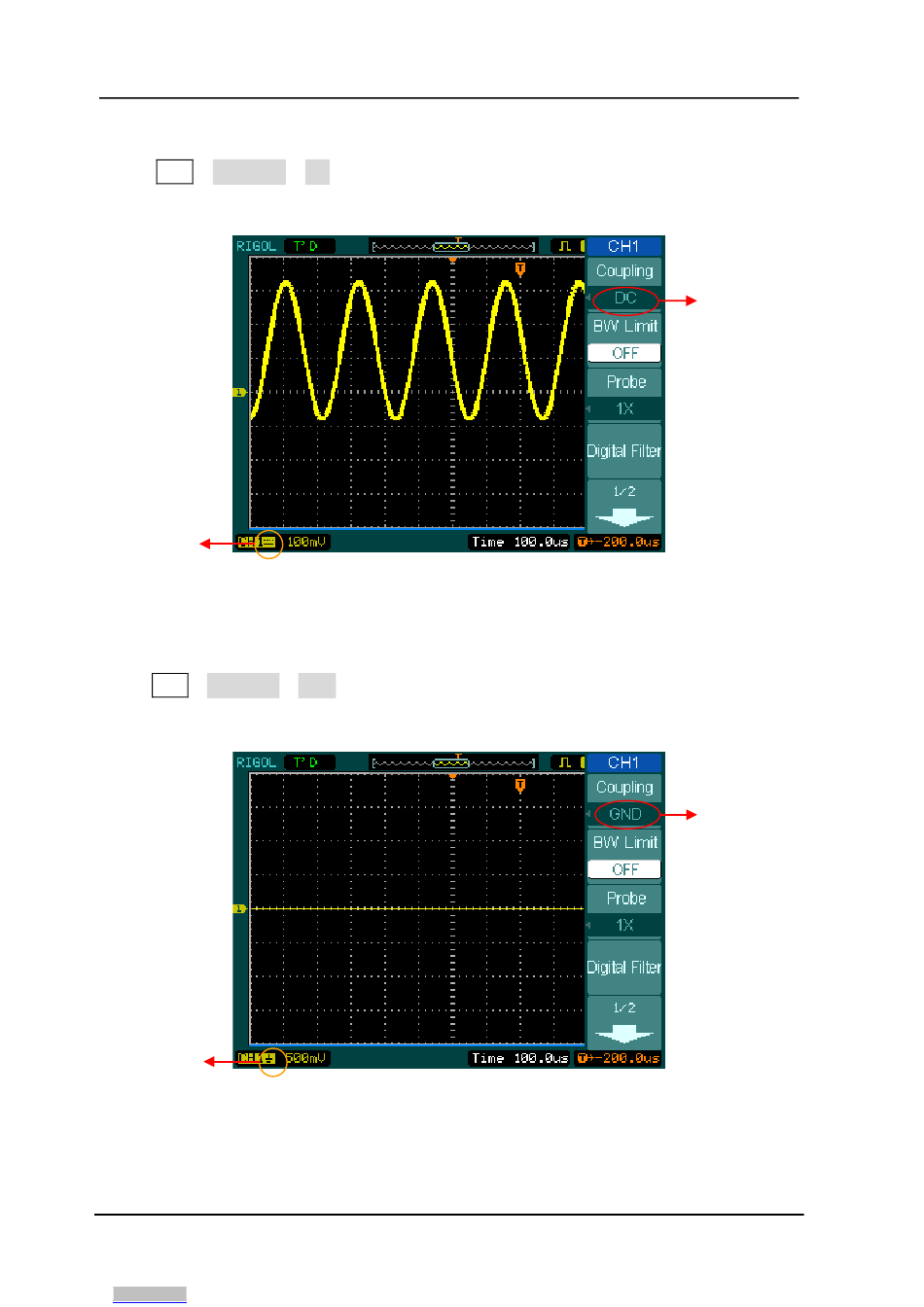

Press CH1→Coupling→DC, to set "DC" coupling. It will pass both AC and DC
components of the input signal. The waveform is displayed as Figure 2- 4:
DC coupling
status symbol
Press CH1→Coupling→GND, to set "GND" coupling, it blocks the input signal.
The screen displays as Figure 2-5:
GND coupling
status symbol
2-4
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Figure 2- 4
DC coupling setting
Figure 2- 5
GND coupling setting
User's Guide for DS1000E, DS1000D Series
DC coupling
setup
GND coupling
setup
