Figure 2- 102

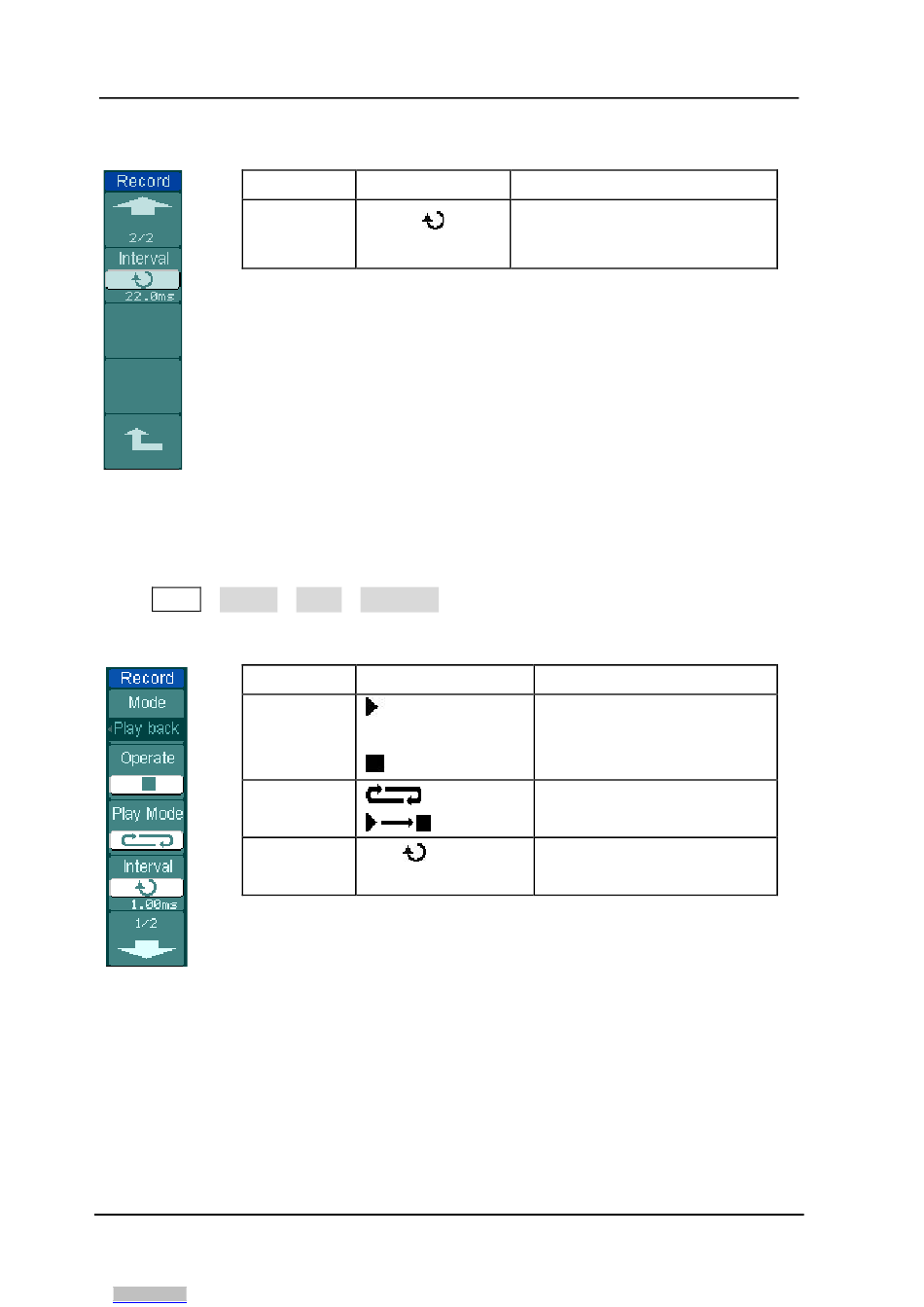

3. Play back: Play back the recorded waveforms.
Press Utility→Record→Mode→Play back to go to the following menu.
Figure 2- 103
2-76
