Rigol DS1000E Series User Manual page 72

RIGOL
Alternate Trigger
Alternate Trigger Mode: When alternate trigger is on, the trigger sources come
from two vertical channels. This mode can be used to observe two non-related
signals. You can choose two different trigger modes for the two vertical channels.
The options are as follows: Edge, Pulse, Slope and video. The information of the
trigger level of the two channels will be displayed on the upper-right of the screen.
Press Trigger MENU→Mode→Alternate to display the alternate trigger menu as
follows.

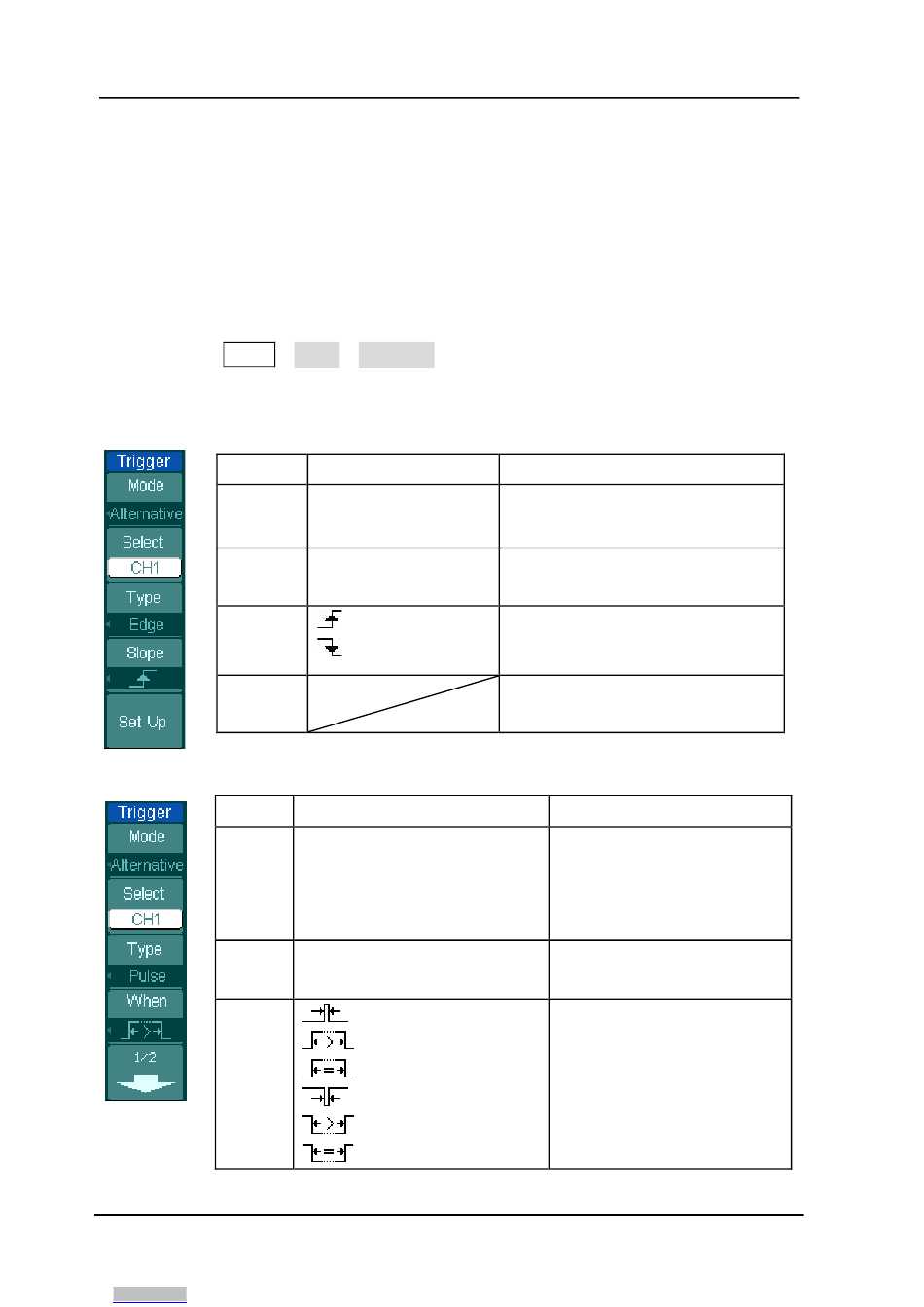

Figure 2- 52 Table 2- 28 The Alternate menu (Trigger Type: Edge)
Figure 2- 53 Table 2- 29 (Trigger Type: Pulse, Page 1/2)
2-42
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Menu Settings
CH1
Select
CH2
Type Edge
(Rising)
Slope
(Falling)
Set Up
Menu
Settings
CH1
Select
CH2
Type Pulse
(+Pulse width less than)
(+Pulse width more than)
(+Pulse width equal to)
When
(-Pulse width less than)
(-Pulse width more than)
(-Pulse width equal to)
User's Guide for DS1000E, DS1000D Series
Comments
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Set Edge Trigger as the trigger
type
Trigger on rising edge
Trigger on falling edge
To go to set up menu. See table
2-38
Comments
Set trigger
Channel 1
Set trigger
Channel 2
Set Pulse Trigger for the
channel
To select pulse condition
© 2008 RIGOL Technologies, Inc.
mode for
mode for
