To Set Up The Horizontal System - Rigol DS1000E Series User Manual

To Set up the Horizontal System

The oscilloscope shows the time per division in the scale readout. Since all active
waveforms use the same time base, the oscilloscope only displays one value for all
the active channels, except when using Delayed Scan, or Alternate Trigger.
The horizontal controls can change the horizontal scale and position of waveforms.
The horizontal center of the screen is the time reference for waveforms. Changing
the horizontal scale causes the waveform to expand or contract about the screen
center.
Horizontal position changes the displayed waveform position, relative to the trigger
point. Press the horizontal MENU button to display the horizontal menu as follows.

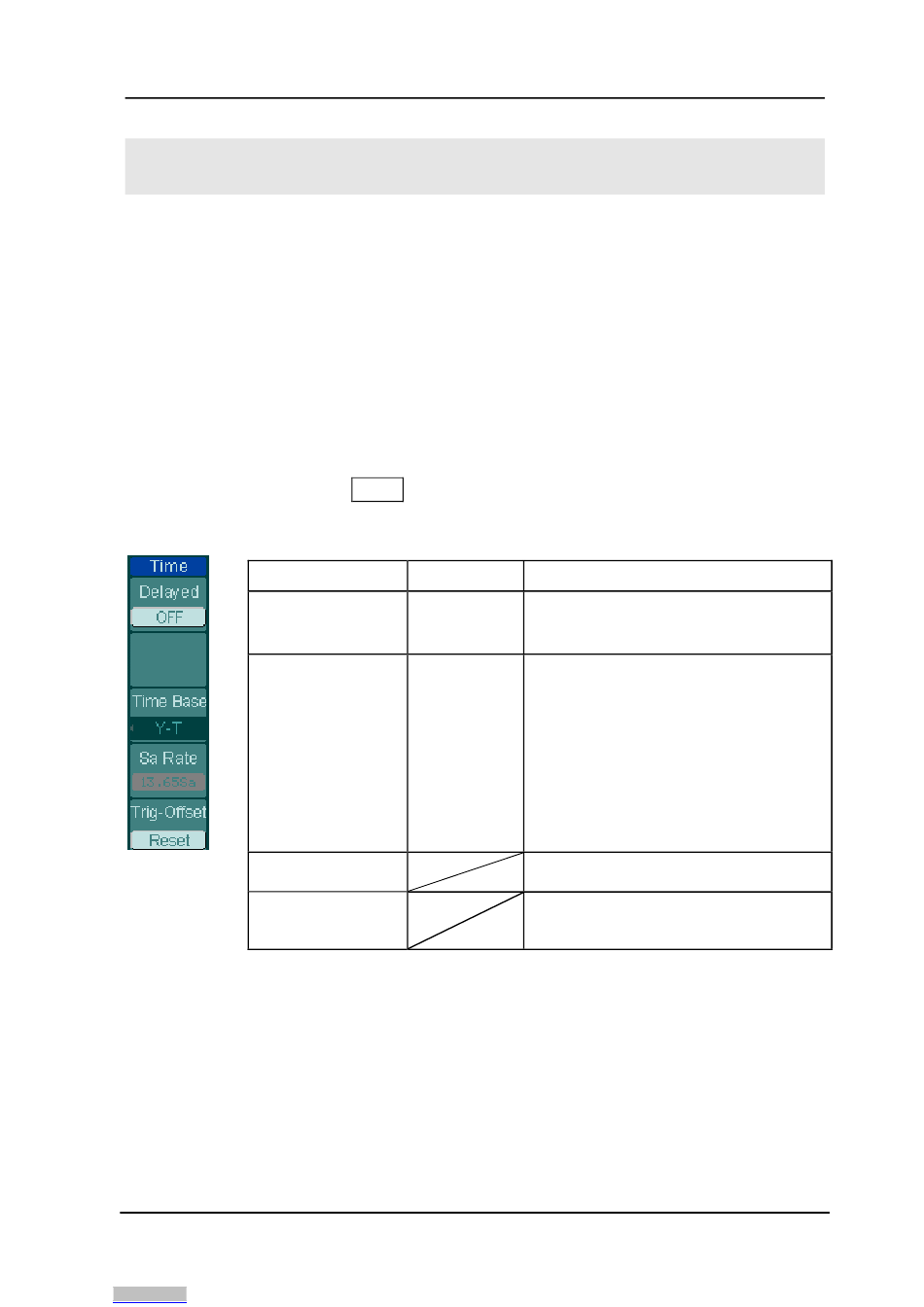

Figure 2- 37 Table 2- 19 The Horizontal menu
The parameter status symbol will be displayed on the screen during horizontal
system settings, which can help users to judge the channel status quickly.
