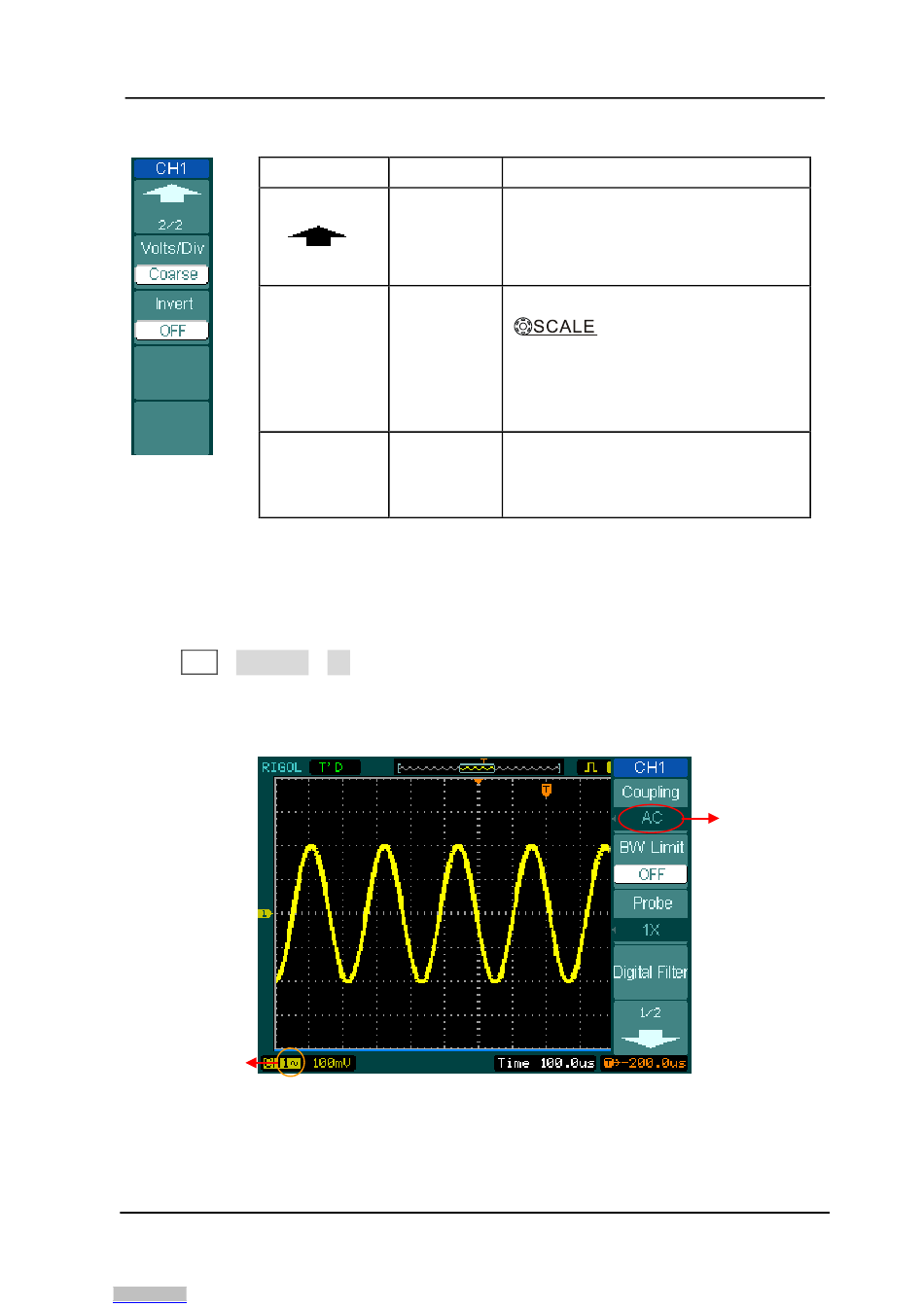

Figure 2- 2
1. Channel coupling
To use Channel 1 as an example, input a sine wave signal with DC shift.
Press CH1→Coupling→AC to set "AC" coupling. It will pass AC component and
blocks the DC component of the input signal. The waveform is displayed as Figure 2-
3:
AC coupling
status symbol
© 2008 RIGOL Technologies, Inc.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Table 2- 2 The Channel Menu (Page 2/2)
Menu Settings
2/2
Coarse
Volts/Div
Fine
ON
Invert OFF
Figure 2- 3
AC coupling setting
User's Guide for DS1000E, DS1000D Series
Comments
Back to the previous menu page
(The followings are the same, no
more explanation)
Selects the resolution of the
knob
Defines a 1-2-5 sequence.
To change the resolution to small
steps between the coarse settings.
Turn on the invert function.
Restore original display of the
waveform.
RIGOL
AC coupling
setup
2-3
