Matrox Meteor-II /Standard Installation And Hardware Reference page 18

Caution Some computers have a large, black-ridged heat sink that prevents boards from
occupying most PCI slots. Your Matrox Meteor-II must not touch this heat sink.
Therefore, choose a slot where the board completely avoids it.
3. If present, remove the blank metal plate located at the back of the selected slot.
Keep the removed screw; you will need it to fasten the Matrox Meteor-II board.

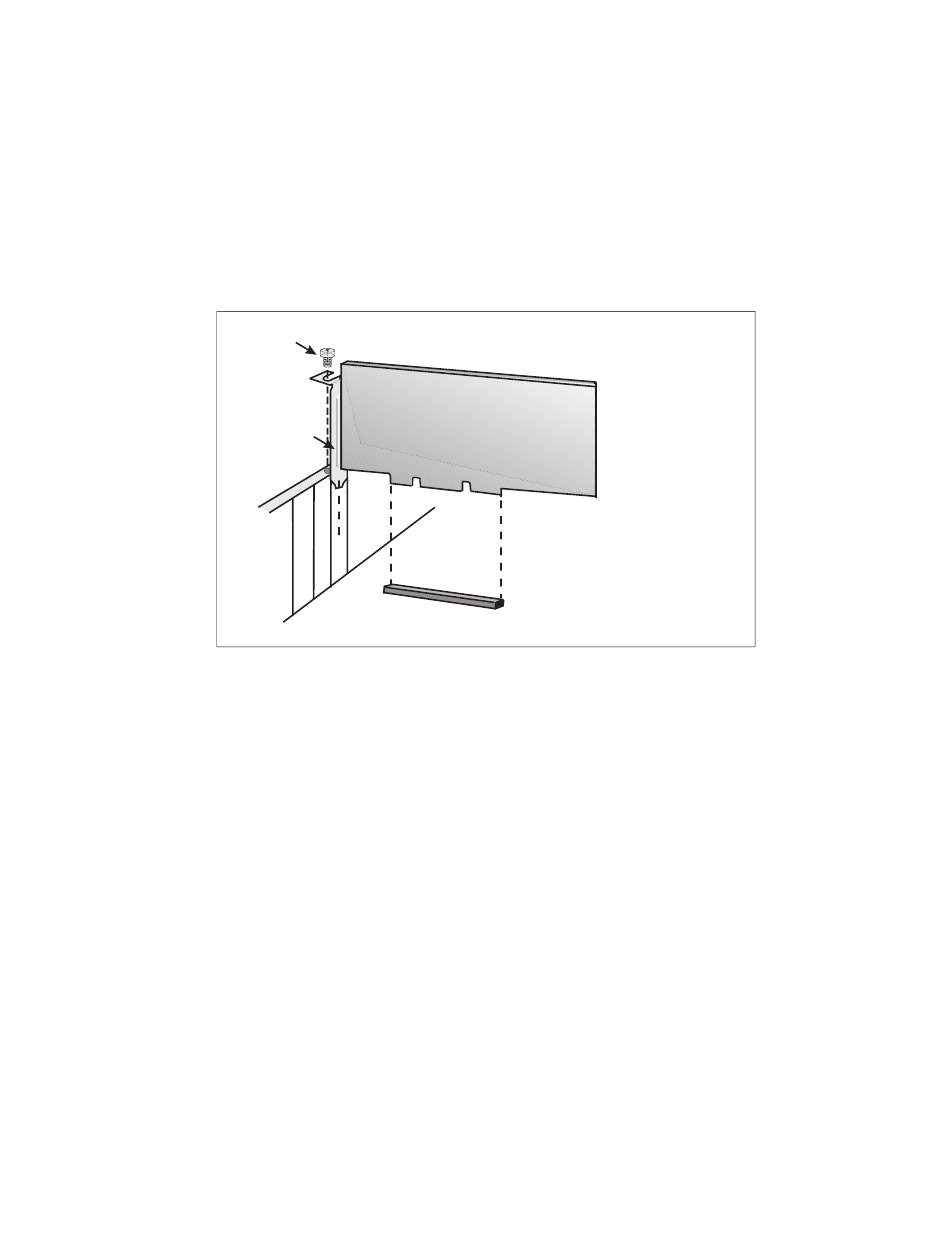

4. Carefully position Matrox Meteor-II in the selected PCI slot as illustrated below.
If you are using a tower computer, orient the board to suit the board slots in your
computer.
5. Once perfectly aligned with an empty slot, press the board firmly but carefully
into the connector.
6. Anchor the board by replacing the screw that you removed.
7. Replace the cover of your computer.
8. Connect your video sources. For details, see the Connecting external devices section.
9. Turn on your computer.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
SCREW
M A T R O X M
METAL
PLATE
32-BIT PCI BOARD SLOT
Installing Matrox Meteor-II /Standard
E T E O R - I I
PCI form factor
17
