Faber Matrix FMG3326F Instruction Manual page 62

Final Installation

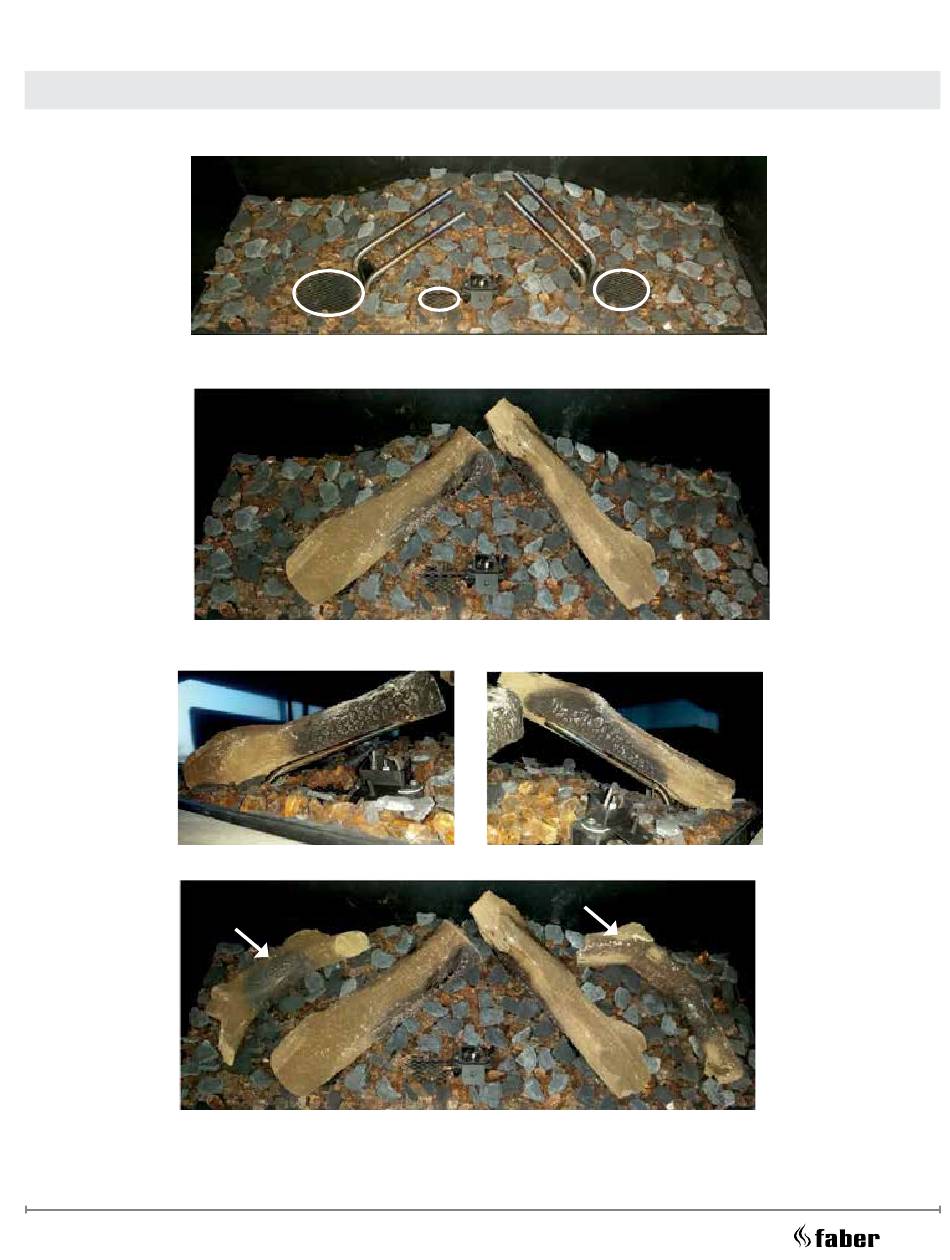

Media Arrangement
FMG4326F, FMG4726L, FMG4726R, FMG5126B
1 . Arrange fire glass in the above configuration . Ensure that glass is not placed in
circled areas .
2 . Install the two burner logs over the burners as shown above . Once placed,
ensure the logs do not move .
Closeup of proper installation position of the front two burner logs over the burners .
3 . Position two back side logs as shown above .
62
