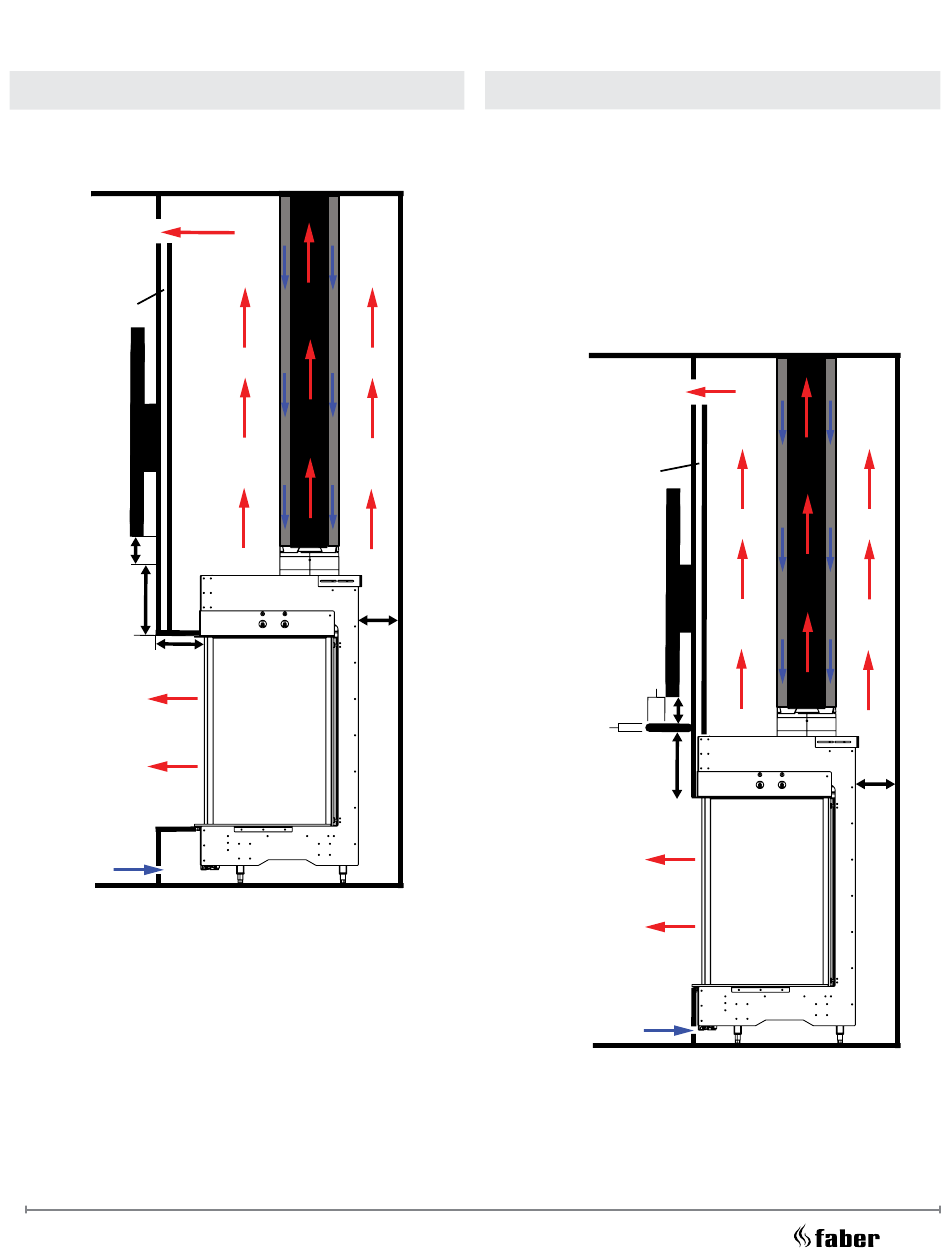

Television Installed Flush Above Fireplace
Heat Release Heat Release
TV cables can be TV cables can be
placed between placed between
noncombustible noncombustible
board layers board layers
2" 2"
51 mm 51 mm
203 mm 203 mm
8" 8"
127 mm 127 mm 5-¼" 5-¼"
maximum recess maximum recess
Air Intake Air Intake
* All measurements shown are
minimum requirements .

Television Install Without Recess

Minimum Requirements for Installing a Television
Without a Recess:
• The TV must be at least 11" (280 mm) total above
the glass of the fireplace .
• A mantel at least 1" (25 mm) thick and 6" (152 mm)
deep should be installed a minimum of 8" (203 mm)
above the glass .
• The TV must be at least 2" (51 mm) above the
mantel and 1" back from the edge of the mantel .
TV cables can be TV cables can be
placed between placed between
noncombustible noncombustible
board layers board layers
2" 2"
51 mm 51 mm
25 mm 25 mm
Heat Release Heat Release
25 mm 25 mm 1"
2" 2" 51 mm 51 mm
1"
203 mm 203 mm 8" 8"
Air Intake Air Intake
* All measurements shown are
minimum requirements .
2" 2"
51 mm 51 mm
