Electric and Control

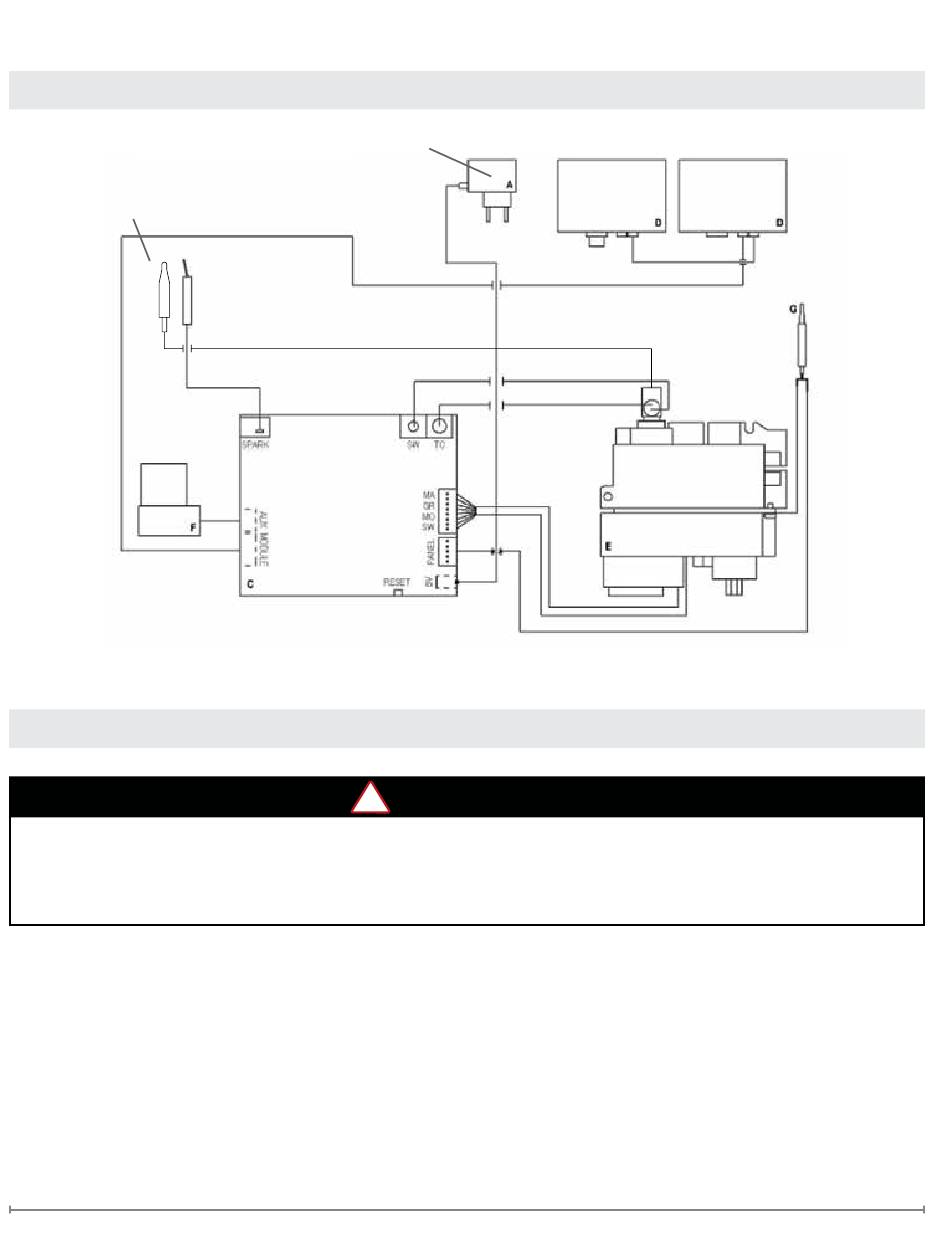

Wiring Diagram

Pilot Burner
Thermocouple
Ignitor
Latching
Valve

Power Source

This appliance must be electrically wired and grounded in accordance with local codes, or in the absence of local
codes, with National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code CSA C22 .1 . A 110–
120 V AC circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance
with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks .
The electrical system can be powered either by plugging the adaptor into a grounded outlet or by installing 4 AA
batteries (alkaline ONLY) . If a mains A/C adaptor is not used, battery replacement is recommended at the beginning
of each heating season as part of the yearly service check . The receiver box is equipped with a low battery indicator,
which will beep frequently for 3 seconds when the motor turns .
57
Main adaptor
(Optional -
Batteries can be
used instead)
Receiver Box
WARNING
!
LED Modules
Second
Thermocouple
Thermocouple
interrupter box
Gas Valve
