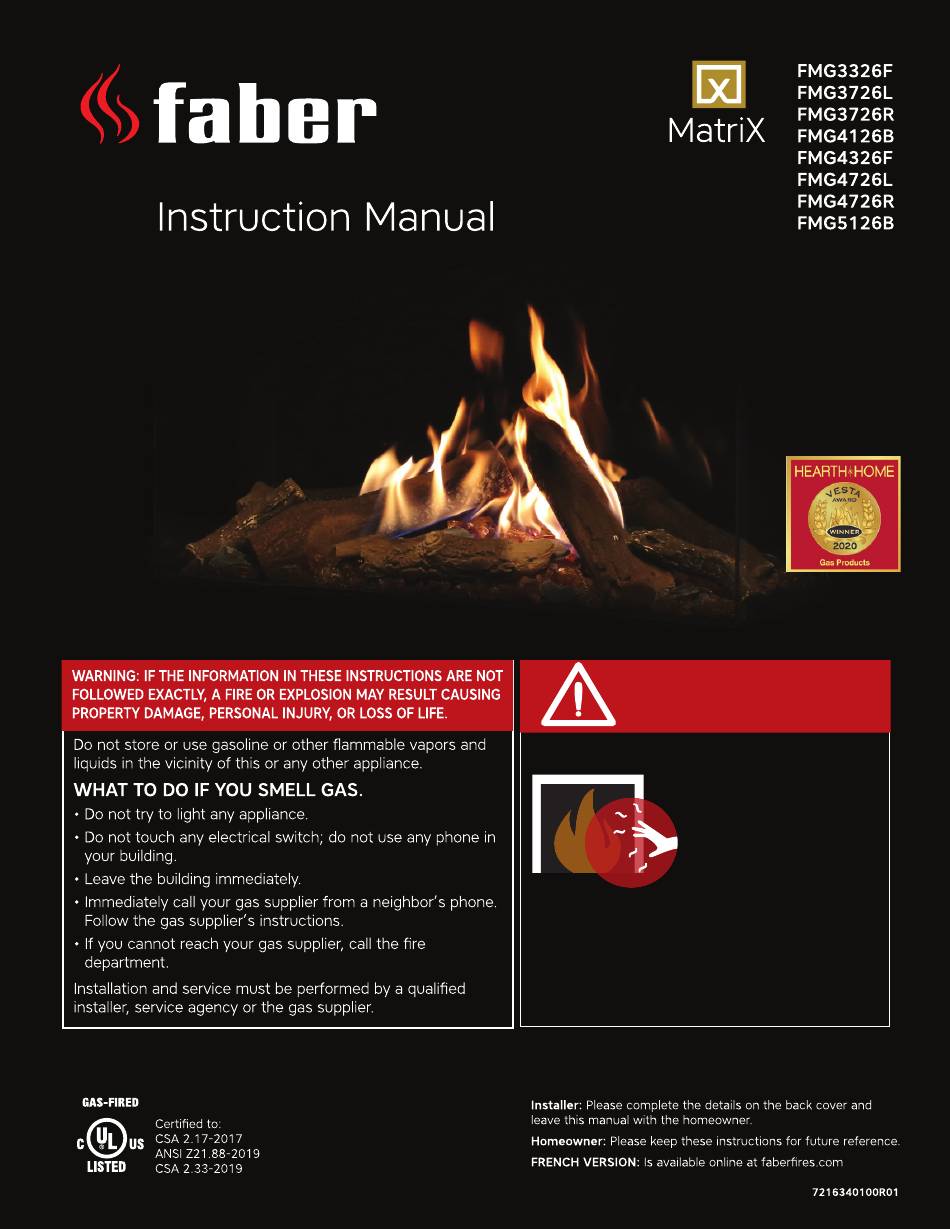

- Page 1 DANGER DANGER DANGER HOT GLASS WILL HOT GLASS WILL CAUSE BURNS. HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED. DO NOT TOUCH GLASS UNTIL COOLED. NEVER ALLOW CHILDREN UNTIL COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS.
-
Page 2: Table Of Contents
Table of Contents SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Fireplace Information . - Page 3 Table of Contents Heat Releases and Air Intakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Heat Releases .
-
Page 4: Safety Information
SAFETY INFORMATION WARNING • This appliance is hot when operated and can cause • Due to high temperatures, the appliance should be severe burns if contacted . located out of traffic and away from furniture and draperies . • Any changes or alterations to this appliance or its controls can be dangerous and is prohibited . - Page 5 SAFETY INFORMATION WARNING • Only optional fronts certified with the appliance are to • As with any combustion appliance, we recommend having your appliance regularly inspected and serviced be installed on the appliance . as well as having a Carbon Monoxide Detector •...
- Page 6 NFI-certified installer or a certified building . Faber installer . Installations that do not 4 . Close fireplace dampers . follow this instruction will not be covered 5 . Turn on clothes dryers and any appliance not by warranty or serviced .
-
Page 7: Fireplace Information
Fireplace Information With 175 years of craftsmanship, innovations, a visionary outlook and our passion, we have become the expert in fires . Faber is responsible for inventions that have become standard around the world, and they are our pride and passion! The fire makers of Faber develop the most beautiful ambient fires . -
Page 8: Installation Information
Installation Information IMPORTANT The following must be completed by the qualified installer and be left with the owner of the property . The model and serial number of the unit can be found on the label affixed to the fireplace . Unit Information Model Number Serial Number... -
Page 9: Fireplace Information
Fireplace Information Maintenance Log Service Date Notes FaberFires.com... -
Page 10: Label
Label Outer bottom trim and screen must be removed to access the label, which is attached by a chain and located in a dedicated slot under the grate in the location shown above . -
Page 11: Technical Dimensions Fmg3326F
Fireplace Information Technical Dimensions FMG3326F - Front-facing Built-in Gas Fireplace 1153 24 1/2" 24 1/2" 45 3/8" 22 1/2" 22 1/2" 8 1/4" 8 1/4" 1183 1110 1163 1089 46 5/8" 25 3/8" 43 11/16" 45 13/16" VIEWING 42 7/8" 25 3/4"... -
Page 12: Technical Dimensions Fmg3726L
Technical Dimensions FMG3726L - Left-facing Built-in Gas Fireplace 1153 1153 24 1/2" 45 3/8" 24 1/2" 45 3/8" 22 1/2" 22 1/2" 8 1/4" 8 1/4" 1183 1183 1110 1163 1110 1163 1089 46 5/8" 1089 25 3/8" 46 5/8" 25 3/8"... -
Page 13: Technical Dimensions Fmg3726R
Fireplace Information Technical Dimensions FMG3726R - Right-facing Built-in Gas Fireplace 1153 24 1/2" 45 3/8" 22 1/2" 8 1/4" 1183 1110 1163 1089 46 5/8" 25 3/8" 43 11/16" 45 13/16" VIEWING 25 3/4" 42 7/8" AREA 15 5/16" 35 1/4" VIEWING VIEWING AREA AREA... -
Page 14: Technical Dimensions Fmg4126B
Technical Dimensions FMG4126B - Bay Built-in Gas Fireplace 1153 24 1/2" 45 3/8" 22 1/2" 8 1/4" 1183 1110 1163 1089 46 5/8" 25 3/8" 43 11/16" 45 13/16" VIEWING 25 3/4" 42 7/8" AREA 1007 15 5/16" 39 5/8" VIEWING VIEWING AREA AREA... -
Page 15: Technical Dimensions Fmg4326F
Fireplace Information Technical Dimensions VENT 5" x 8" VENT 5" x 8" VENT 5" x 8" MIN. MIN. 2" 2" MIN. 2" VENT 5" x 8" MIN. 2" 6 5/8" 6 5/8" 6 5/8" 6 5/8" 26 1/16" 26 1/16" 26 1/16"... -
Page 16: Technical Dimensions Fmg4726L
Technical Dimensions VENT 5" X 8" VENT 5" X 8" VENT 5" X 8" MIN. 2" MIN. 2" MIN. 2" 6 5/8" 6 5/8" 6 5/8" VENT 5" X 8" MIN. 2" 6 5/8" 26 1/16" 26 1/16" 26 1/16" FMG4726L - Left-facing Built-in Gas Fireplace 1329 1329... -
Page 17: Technical Dimensions Fmg4726R
Fireplace Information Technical Dimensions VENT 5" X 8" MIN. 2" VENT 5" X 8" VENT 5" X 8" MIN. 2" MIN. 2" VENT 5" X 8" MIN. 2" 6 5/8" 6 5/8" 6 5/8" 6 5/8" 26 1/16" FMG4726R - Right-facing Built-in Gas Fireplace 26 1/16"... -
Page 18: Technical Dimensions Fmg5126B
Technical Dimensions MIN. 2" MIN. 2" VENT 8" X 5" 26 1/16" VENT 8" X 5" MIN. 2" 26 1/16" VENT 8" X 5" 26 1/16" 6 5/8" 6 5/8" 6 5/8" MIN. 2" VENT 8" X 5" 26 1/16" 6 5/8"... -
Page 19: Gas Fireplace Operation
Gas Fireplace Operation Remote Control Instructions Child Proof Time Signal Indicator Child Proof Time Signal Indicator Thermostatic Mode Thermostatic Mode Battery Status Battery Status Countdown Timer Countdown Timer Fahrenheit or Celsius Fahrenheit or Celsius Light Light Program Mode Program Mode Eco Mode Eco Mode Temperature... - Page 20 MANUAL MODE (HANDSET) DESIGNATED LOW FIRE AND HIGH FIRE NOTICE button. ▪ To go to low re, double-click ▪ is displayed. BEFORE OPERATING 1. Make sure MANUAL knob on the GV60 valve is in the NOTE: Flame goes to high re rst full counterclockwise position.
- Page 21 Gas Fireplace Operation MODES OF OPERATION PROGRAM MODE Thermostatic Mode The room temperature is measured and ▪ Press button. compared to the set temperature. The ▪ , or is displayed. 2 ON ame height is then automatically adjusted to achieve the set temperature. Program Mode PROGRAM 1 and 2, each can be 1.
- Page 22 PROGRAM MODE BURNER FEATURE selected The latching solenoid valve will open automatically after ignition or after switching the system OFF, so that the maximum ow of ON TIME SETTING (PROGRAM 1): gas is supplied to both burners assisting with the ignition process. , , ON is displayed, After pressing the button for the 2 Burner the motor will turn...
- Page 23 Gas Fireplace Operation LIGHT/DIMMER OPERATION ▪ Press button ( displayed). ▪ Light is ON at preset level. OFF : ▪ Press button ( disappears). SETTING: 1. Press button and hold until ashes. 2. To adjust light between 20…100% press button. To con rm setting either press button or wait ( is displayed).
-
Page 24: Receiver And Remote Batteries
UCTIONS FOR OEM USE ONLY Receiver and Remote Batteries Remote Control Batteries Receiver Batteries BURNER FEATURE • 2 × AAA (alkaline recommended) . • 4 × AA (alkaline ONLY) ME SETTING (PROGRAM 1): The latching solenoid valve will open automatically after ignition •... -
Page 25: Installation Steps
Installation Steps 1 . Prior to starting the installation, make sure you read and understand all WARNING information in this manual . Do not start the installation if you are unclear about any of the installation-related subjects . 2 . Determine the following: •... -
Page 26: Installation Preparation
Fireplace Unpacking and Contents Remove the outer protective crate from the pallet . The Faber MatriX fireplace is supplied with the following contents . Ensure all components are present before installation . All components may not be packed exactly as shown . -
Page 27: Fireplace Positioning
Installation Preparation Fireplace Positioning Once the fireplace has been set to the upright position, it can be moved to its final installation location . • Make sure the control unit is secure and not dragging on the floor during transport and positioning . •... -
Page 28: Vent Termination
Vent Termination These instructions should be used as a guideline and do not supersede local codes in any way. Install venting according to local codes, these instructions, the current National Fuel Gas Code (ANSl-2223.1) and/or Natural Gas and Propane Installation Code, CSA B149.1 Instructions 1 . -
Page 29: Minimum Combustible Clearances From Vent
Vent Termination Minimum Combustible Clearances from Vent • Horizontal Vent Clearances A minimum clearance of 3" (76 mm) to the top and 1" (26 mm) to the sides and bottom of the vent pipe on all horizontal runs to combustibles is required . -
Page 30: Minimum Clearances To Vent Termination
Minimum Clearances to Vent Termination Minimum Clearance Requirements Canada¹ USA² Clearance above grade, veranda, porch, deck, or balcony 12" (30 cm) 12" (30 cm) Clearance to window or door that may be opened 12" (30 cm) 9" (23 cm) Clearance to permanently closed window See note³... -
Page 31: Unit Installation With Horizontal Termination
Vent Termination Unit Installation with Horizontal Termination 5" x 8" venting (Rigid Vent Systems) Minimum Vent Clearances to Combustibles * Clearances noted must be maintained except when Horizontal Top* 3" (76 mm)* passing through a wall, ceiling or at the termination Horizontal Side 2"... - Page 32 Unit Installation with Horizontal Termination ! NOTE: a) The horizontal run of vent must be level, or have a ¼" rise for every 1 foot of run towards the termination . Never allow the vent to run downward . This could cause high temperatures and may present the possibility of a fire .
-
Page 33: Unit Installation With Vertical Termination
Vent Termination Unit Installation with Vertical Termination ! NOTE: A top clearance of 3" (76 mm) and side bottom clearance of 2" (51 mm) must be maintained, except when passing through a wall, ceiling, or at the termination where the use of a fire stop or wall thimble reduces the required clearance to 1-½"... - Page 34 Unit Installation with Vertical Termination Galvanized pipe is desirable above the roofline due to its higher corrosion resistance . Continue Minimum Vent Height to add pipe sections through the flashing until Roof Pitch the height of the vent cap meets the minimum Feet Meters height requirements specified in this manual or...
-
Page 35: Minimum Venting Requirements - Natural Gas
Vent Termination Minimum Venting Requirements Allowable Vent Configurations for Horizontal Vent Termination (For Models FMG3326F, FMG3726L, FMG3726R, FMG4126B ONLY) V+H ≤ 40 ft. 38 ½' H ≤ 20 ft. (462") V + H are measured from the centre of the vent elbows. Elbows are considered as 90°. - Page 36 Allowable Vent Configurations for Horizontal Vent Termination (For Models FMG4326F, FMG4726L, FMG4726R, FMG5126B ONLY) V+H ≤ 40 ft. 38 ½' H ≤ 20 ft. (462") V + H are measured from the centre of the vent elbows. Elbows are considered as 90°. Two 45°...
- Page 37 Vent Termination Allowable Vent Configurations for Vertical Vent Terminations ALL APPLIANCES (For All Models) (NATURAL GAS ONLY) V+H ≤ 40 ft. 0 elbow H ≤ 20 ft. zone V + H are measured from the centre of the vent elbows. Elbows are considered as 90°.
-
Page 39: Chase And Framing Installation And Planning
Chase and Framing Installation and Planning Non-Combustible Material Non-Combustible Material (⅝" Type X Fire Resistant (⅝" Type X Fire Resistant Drywall or ½" Cement Board) Drywall or ½" Cement Board) Metal Studs Wood Studs Non-Combustible Framing Combustible Framing A layer of non-combustible material (⅝" Type X fire A layer of non-combustible material (⅝"... - Page 40 FMG3326F Single-Sided Installation Wood framing Metal Framing Reference inches inches 44 1/4 1124 43 1/4 1099 33 3/4 33 3/4 28 1/2 27 1/2 G (min .) 7 1/4 7 1/4 FMG4326F Wood framing Metal Framing Reference inches inches 54 1/8 1375 53 1/8 1349...
- Page 41 Chase and Framing Installation and Planning Three-Sided Installation FMG4126B Wood framing Metal Framing Reference inches inches 51 1/2 1308 50 1/2 1283 28 1/2 27 1/2 23 1/8 22 5/8 G (min .) 7 1/4 7 1/4 FMG5126B Wood framing Metal Framing Reference inches...
-
Page 42: Clearances
Clearances Material Specifications Non-Combustible Materials Specification Non-combustible materials are those which will not ignite and burn . These are materials consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination thereof . Materials that are reported as passing ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750 °C shall be considered non-combustible materials . -
Page 43: Minimum Combustible Clearances From Vent Pipe
. Improper framing or mounting to unit will void product warranty . Please consult Faber directly for additional questions or concerns about framing options . -
Page 44: Chase Clearances
Chase Clearances WARNING All materials inside the chase and above the fireplace must be non-combustible or covered combustible only . FRONT VIEW Clearance to Metal Framing The minimum clearance to metal framing is ½" (13 mm) . Metal Studs Clearance to side stud: ½" (13 mm) Clearance to Non-Combustible Back Wall: 2"... -
Page 45: Additional Clearances
Clearances Chase Clearances Chase Ceiling The inner top portion of the chase must be covered with non-combustible material (firestop) . No exposed combustible materials are permitted inside the chase . Floor Clearance The minimum clearance to the floor is 4-¼" (108 mm), which is provided by the minimum height of the feet . Do not remove the feet or install the appliance in a manner that would bypass this minimum elevation . -
Page 46: Mantel Clearance
Mantel Clearance The necessary clearance for a mantel made of combustible materials (e .g ., wood) varies according to the mantel depth and height . Use the following table and illustration for information on mantel clearance requirements for mantels made of combustible material installed less than 10"... -
Page 47: Finishing Around Front Of The Fireplace
Clearances Finishing Around Front of the Fireplace Non-combustible finishing material (such as ½" cement board, brick, stone, tile, minimum 5/8" (13 mm) Type X fire rated drywall) MUST be used to finish around the front of the appliance . Covered combustible material, can be used to finish around the fireplace, if the proper distance from the fireplace is maintained . -
Page 48: Heat Releases And Air Intakes
Heat Releases and Air Intakes Heat Releases This fireplace requires one or more heat release outlet(s) located above the fireplace to allow warm air to flow back into the room and keep the fireplace wall cool . The total heat release outlet area must be at least 200 square inches (1290 cm²) . A larger heat release outlet area is recommended where the application permits it, as this will help reduce the temperature of surrounding wall . -
Page 49: Examples Of Heat Releases And Air Intakes
Heat Releases and Air Intakes Examples of Heat Releases and Air Intakes Classic Registers Drop Wall Shadow Line Openings at the front, sides, or back The wall does not reach the ceiling A recess hides the opening at the (pick one or more) can be covered and is left open on top . -
Page 50: Television Mounting Information
. Mounting a television above the fireplace is based on the owner’s decision and responsibility . Faber will not be held liable for any adverse effects on a TV, artwork or other equipment located near the appliance . -
Page 51: Flat With Recessed Tv
Television Mounting Information Flat with Recessed TV Recessed with recessed TV Heat Release Heat Release Heat Release Heat Release TV cables can be TV cables can be TV cables can be TV cables can be placed between placed between placed between placed between noncombustible noncombustible... -
Page 52: Television Install Flush Above Fireplace
Television Installed Flush Above Fireplace Television Install Without Recess Minimum Requirements for Installing a Television Without a Recess: • The TV must be at least 11" (280 mm) total above the glass of the fireplace . Heat Release Heat Release •... -
Page 53: Gas Installation
Gas Installation General WARNING RISK OF FIRE OR EXPLOSION! • All gas handling and installation should be performed by a qualified service technician or installer . • Gas build-up during line purge could ignite . Ensure adequate ventilation . Ensure there are no ignition sources, sparks, or open flames . -
Page 54: Gas Valve
Gas Valve Maxitrol GV60 Gas Valve Pilot Gas Adjustment Pressure Regulator Screw (turn with or Throttle − screwdriver) (remove plug first) Main Valve Knob MANUAL Knob Connection Piezo Igniter Tab 2 .8×0 .8 mm Side Inlet Magnet Unit Minimum Rate Orifice Inlet Pressure Tap Bottom Outlet Outlet Pressure Tap... -
Page 55: Installation At High Altitude
Gas Installation Installation at High Altitude This fireplace is tested and approved for installations at elevations of 0 - 4500 feet (0 - 1372 m) above sea level using the standard burner orifice sizes . At the time of installation, it must be determined if the appliance needs to be de-rated . -
Page 56: Commonwealth Of Massachusetts
Commonwealth of Massachusetts For all side wall horizontally vented gas fueled equipment 248 CMR 5 .08(2)(a)1 through 4 . installed in every dwelling, building or structure used in (b) EXEMPTIONS: The following equipment is exempt from whole or in part for residential purposes, including those 248 CMR 5 .08(2)(a)1 through 4: owned or operated by the Commonwealth and where 1 . -
Page 57: Electric And Control
Electric and Control Wiring Diagram Main adaptor LED Modules (Optional - Batteries can be Pilot Burner used instead) Thermocouple Ignitor Second Thermocouple Thermocouple interrupter box Latching Valve Gas Valve Receiver Box Power Source WARNING This appliance must be electrically wired and grounded in accordance with local codes, or in the absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code CSA C22 .1 . -
Page 58: Wall Switch - Optional
Wall Switch - Optional If you wish to install the wall switch option, you will need to purchase the GV60 Wall Switch Accessory Kit, as well as the 2nd thermocouple cable (G60-ZCTCR...) from your authorized gas fireplace dealer. The GV60 Wall Switch Accessory Kit can be purchased separately as an option to control the fireplace . -
Page 59: Final Installation
Final Installation Media Arrangement Faber Fireplaces has one of the most realistic log burners in the industry . Follow the instructions below for information on how to add and arrange media in your fireplace: • Do not place any type of media on the pilot or in front of the pilot . Keep 1" (25 mm) distance from the pilot to allow correct operation of the pilot . - Page 60 Media Arrangement Closeup of proper installation position of the front two burner logs over the burners . 3 . Install front log in the slot and pilot bracket front pin, as shown above . 4 . Position two back side logs as shown above . 5 .
- Page 61 Final Installation Media Arrangement 6 . Position the two front side logs . 7 . Position the back center log . Correct Incorrect Correct media placement versus incorrect placement of media around pilot assembly . FaberFires.com...
- Page 62 Final Installation Media Arrangement FMG4326F, FMG4726L, FMG4726R, FMG5126B 1 . Arrange fire glass in the above configuration . Ensure that glass is not placed in circled areas . 2 . Install the two burner logs over the burners as shown above . Once placed, ensure the logs do not move .
- Page 63 Media Arrangement 4 . Install front log in the slot and pilot bracket front pin, as shown above . 5 . Position the two front small logs as shown . 5 . Place the remaining logs as shown above . Correct Incorrect Correct media placement versus incorrect placement of media around pilot assembly .
-
Page 64: Sealing The Glass
Sealing the glass 5 mm ceramic glass front and side panels are provided . Contact Faber for replacement parts if required . Silicone comes included with fireplace for application to any glass-to-glass connections on both sides of the glass . -
Page 65: Feature Removal
Feature Removal Safety Screen Removal Follow the instructions below for safety screen removal . ! NOTE: Safety screen may be shipped separately from the appliance WARNING The barrier is designed to reduce the risk of burns from the hot viewing glass and is provided with this appliance . It must remain installed for the protection of children and other at-risk individuals . -
Page 66: Glass Removal
Glass Removal SAFETY PRECAUTIONS WARNING: Turn off the fireplace and allow time for the unit to cool before attempting to remove the glass . CAUTION: The ceramic glass is very fragile and should be handled with care . WARNING: Do not operate the appliance with glass removed, cracked or broken . Replacement of the panel(s) should be done by a licensed or qualified service person . -
Page 67: Replacement Parts
Replacement Parts Suction Cup (1) 9600820100RP Silicone in Small Tube 0800310000RP Matrix Log Set 0443080100RP Glass Beads, orange 10-20mm, 2 kg 1400160100RP Remote Control (918 Mhz Symax, 10-Button Blk) 3002230100RP 120V Power Adaptor 2100310100RP LED Glass Cover 5904020100RP SIT Natural Gas Pilot/Ignition Module with Thermocouple 1800020100RP Burner 1 0500200100RP... -
Page 68: Maintenance
. The glass should be cleaned when it starts looking cloudy . 3 . The fireplace is finished in a heat-resistant paint and should only be refinished with heat-resistant paint . Faber part number . -
Page 69: Yearly Service
Maintenance Yearly Service Failure to inspect and maintain the fireplace may lead to improper combustion and a potentially dangerous situation . We recommend the following procedures be done by a qualified technician . Glass Maintenance • Always use suction cups to remove the fireplace glass . Use the manual procedure for instruction on how to remove the fireplace glass . -
Page 70: Flame Pattern
Correct main burner flame pattern Incorrect flame pattern will have small, probably yellow flames, not coming into proper contact with the rear burner or flame sensor . NOTE: If you have an incorrect flame pattern, contact your Faber dealer for further instructions . -
Page 71: Log Replacement
Glass Your Faber fireplace is supplied with safety screen and a 5 mm ceramic inner glass . If your glass requires cleaning, we recommend using an approved ceramic glass cleaner available at all authorized fireplace dealers . Do not use abrasive materials or cleaners . -
Page 72: Glass Replacement
Glass Replacement In the event that you break your glass by impact, purchase your replacement from an authorized dealer only . Reinstall as per instructions provided with replacement . • Check for evidence of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, continuous condensation can cause corrosion of caps, pipe, and fittings . -
Page 73: Troubleshooting Guide
Troubleshooting Guide Unit does not power on using the remote control Remote must learn new code Press and hold the receiver’s reset button until you hear 2 acoustic signals . After the second longer acoustic signal, release the reset button and within the subsequent 20 seconds, press (down arrow) and hold on the remote handset until you hear an additional long... - Page 74 No Pilot Flame and control continues to spark Air in the pilot line . Purge the line (start ignition several times .) Check spark gap; Check for spark in location along cable . No spark at pilot burner . Check spark on the receiver by disconnecting the spark cable from the receiver .
-
Page 75: Warranty
Warranty Limited Lifetime Warranty Faber extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation . The items covered by this limited warranty and the period of such coverage is set forth in the table below . - Page 76 Faber . Alternatively, installation by an unqualified installer, incorrect chimney Faber may at its own discretion fully discharge all of its components (including but not limited to cap size or obligations under the warranty by refunding the verified type), operator error, abuse, misuse, use of improper purchase price of the product to the original purchaser .
- Page 77 . In the event the authorized selling dealer is unable to provide warranty service, please contact Faber by mail at the address listed below . Please include a brief description of the problem and your address, email and telephone contact information . A representative will contact you to make arrangements for an inspection and/or warranty service .
- Page 78 BRANDS OF GLEN DIMPLEX AMERICAS ® Social icon Social icon Circle Social icon Circle Circle Only use blue and/or white. Only use blue and/or white. Only use blue and/or white. For more details check out our For more details check out our Brand Guidelines.
