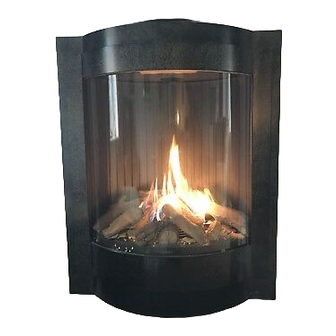

Faber SILENCE Installation Manual And User's Manual

Room-sealed built-in gas-fireplace
Hide thumbs Also See for SILENCE:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Enlarged version
Saturnus 8
NL-8448 CC Heerenveen
Postbus 219
NL-8440 AE Heerenveen
T. +31(0)513 656500
F. +31(0)513 656501
room-sealed built-in gas-fireplace
installation guide and user manual
"Log Burner Technology"
SILENCE
FEELING
WHISPER
SPECTRA NOVA
CADRA NOVA
MISTY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILENCE and is the answer not in the manual?

Questions and answers

Related Manuals for Faber SILENCE

Summary of Contents for Faber SILENCE

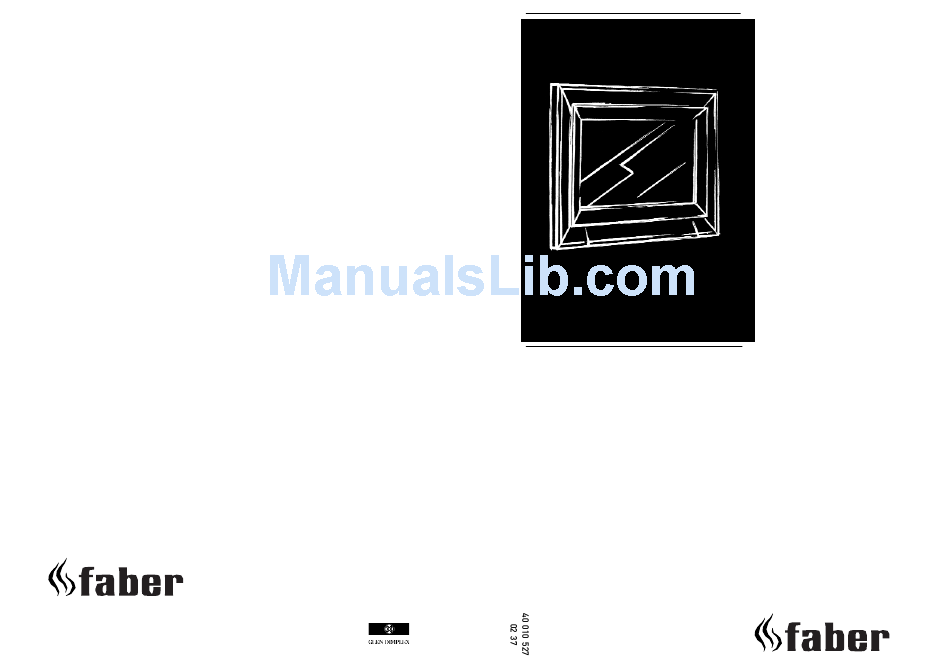

  • Page 1 SILENCE FEELING WHISPER SPECTRA NOVA CADRA NOVA MISTY room-sealed built-in gas-fireplace installation guide and user manual “Log Burner Technology” Saturnus 8 NL-8448 CC Heerenveen Postbus 219 NL-8440 AE Heerenveen T. +31(0)513 656500 F. +31(0)513 656501...

  • Page 2: Table Of Contents

    UK/IRL CONTENTS 1. INTRODUCTION 2. SAFETY INSTRUCTIONS 3. INSTALLATION REQUIREMENTS 3.1 Builders opening and surround 3.2 Requirements outlet and exhaust 4. INSTALLATION-INSTRUCTIONS 4.1 Gas connection 4.2 Preparation of the appliance 4.3 Fitting the firebox 4.4 Placing of the wood set 5.

  • Page 3: Introduction

    (identification of the type of gas and pressure) and the adjustment of This guide is concerning the following types of appliances: the appliance are compatible. Widescreen interior: Types Silence and Feeling This gas appliance is factory set and shall not be adjusted by the Roundscreen interior: Type Misty installer.

  • Page 4: Safety Instructions

    UK/IRL UK/IRL 3. INSTALLATION REQUIREMENTS Building Regulations and Standards issued as relevant by the Department of the Environment or the Scottish Development Note: Department. Since the appliance is a source of heat, circulation of air occurs. Therefore it is of importance that you do not use the appliance In the Republic of Ireland installation should be carried out in shortly after a renovation of the home.
  • Page 5 (min. 100 °C temperature resistant). fig. 1 If the appliance is to be fitted against a wall with combustible Builders opening (mm) Feeling Silence Whisper Spectra Cadra Misty cladding, the cladding must be removed from the area covered by the...
  • Page 6 UK/IRL UK/IRL 3.2 Flue requirements Flue restrictor The appliance is of the type C11/C31. The appliance will need to be If applicable, in the table is also stated the size of a flue restrictor. supplied with the approved flue pipes and terminal, it is not possible to This restrictor needs to be fitted in the combustion chamber when supply your own.
  • Page 7 UK/IRL UK/IRL Table Silence and Feeling with interior Widescreen Example calculation 1 Determine according to the table 2 the right total horizontal- and vertical length. Calculati0n horizontal extension fig. 2a: When meeting an X, and when the values are outside the table, the combination is not allowed.
  • Page 8 UK/IRL UK/IRL Table Cadra Nova with interior MV150 3.2 Flue requirements (continuing) Determine according to the table 4 the right total horizontal- and vertical length. When meeting an X, and when the values are outside the table, the combination is not 3.2.1 Terminal position allowed.
  • Page 9 UK/IRL UK/IRL Flue terminal positions Table 6 Dimension Terminal position Balanced flue room sealed (kW input 7.5 kW expressed in net) Natural draught Direct below an opening, airbrick, 300 mm opening windows, etc. Above an opening, airbrick, 300 mm opening window ect. Horizontally to an opening, airbrick, 300 mm opening window etc.

  • Page 10: Gas Connection

    1. Open the ashtray door by pushing on the right side for the min. 150 x 150 mm. Silence/Feeling and on the left side for the Whisper. Remove the - The chimney needs to be intact and well looked after.
  • Page 11 UK/IRL UK/IRL 4.2 Preparing the appliances Widescreen and Whisper (continuing) 4.2 Preparing the appliances Widescreen and Whisper (continuing) fig. 8 fig. 6 4. Take the box with the log set out of the combustion chamber. Remove the back panel by loosening the screws B (see fig. 6). 5.
  • Page 12 UK/IRL UK/IRL 4.3 Preparing the appliance Misty 4.3 Preparing the appliance Misty (continuing) 4. Take the box with the log set out of the combustion chamber. 5. Place the right flue restrictor in the combustion chamber. To determine the right flue restrictor, see chapter 3. fig.
  • Page 13 UK/IRL UK/IRL 4.4 Preparing the appliances Spectra Nova/Cadra Nova 4.4 Preparing the appliances Spectra Nova/Cadra Nova (continuing) 4. Take the box with the log set out of the combustion chamber. 5. Place the right flue restrictor in the combustion chamber. To determine the right flue restrictor, see chapter 3.

  • Page 14: Fitting The Firebox

    UK/IRL UK/IRL 4.5 Fitting the firebox 4.5 Fitting the firebox (continuing) Points of attention for placement: ceramic - If possible, first locate the appliance before assembling the flue. blanket ceramic - If this is not possible then always use an extendible pipe before blanket connection onto the appliance.

  • Page 15: Installation Of The Flue

    5.1 Connections with use of concentric duct material To guarantee good combustion, the log set may only be installed in the way specified by Faber International. Any other arrangement can - Build the system starting from the appliance on. lead to soot on logs or window. Do not use the fire with broken or missing logs.
  • Page 16 UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL 5.2 Connection onto an existing chimney 5.2 Connection onto an existing chimney (continuing) You can connect the appliance onto an existing chimney. The existing chimney then functions as air supply, where a flexible stainless steel liner (to BS715) of 100 mm 5.

  • Page 17: Remote Control

    UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL 5.3 Remote control (if applicable) The remote control is only meant to regulate the flames, it functions only when the pilot burner is ignited. It is therefore not possible to ignited the appliance with the remote control or to shut-off the pilot- flame.

  • Page 18: Commisioning

    UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL 6. COMMISSIONING (functional checks) 6.3 Functional balanced flue check 1. Set the appliance on max. input. 6.1. Check pilot ignition 2. Verify the flame picture, this means no flames against the window, the flame have to come besides the logs, if not check 1.

  • Page 19: Handing Over

    UK/IRL UK/IRL UK/IRL UK/IRL 7. HANDING OVER 8. SERVICING (final check and customer briefing) To ensure safe, efficient operation of the appliance, it is necessary to Instruct the customer on the full operation of the appliance. carry out routine servicing at regular intervals. 7.2.1 Advise the customer how to clean the appliance including the It is recommended, that the fire is inspected/serviced by a competent glass.
  • Page 20 UK/IRL UK/IRL 8.1.1 Cleaning the glass 8.1.4 Burner tray assembly Depending on the intensity of use, you can get a deposit on the 1. Remove the front, glass, log set, grid and burner tray cover. glass. This can be removed with a special ceramic glass cleaner 2.
  • Page 21 UK/IRL UK/IRL UK/IRL UK/IRL 8.1.7 Combustion test 8.1.6 Gas control block A BS7967 combustion analysis check should be carried out using an analyser to BS7927 positioned in the flue outlet. A Ratio of CO/CO2 should be less than 0.01 within 30 minutes. (100ppm CO per 1% CO2).
  • Page 22 UK/IRL UK/IRL 8.2 LIST OF SPARE PARTS 8.3 TECHNICAL DATA Widescreen Silence en Feeling C11/C31 Country UK/IRL UK/IRL Whisper Feeling Silence Misty Spectra Cadra Category 2H3+ 2H3+ Nova Nova Model type C11 0f C31 C11 0f C31 Description Company Company Company Company Company Company...
  • Page 23 UK/IRL UK/IRL 8.3 TECHNICAL DATA 8.3 TECHNICAL DATA MV100 Whisper and Spectra Nova MV150 Cadra Nova Country UK/IRL UK/IRL Country UK/IRL UK/IRL Category Category 2H3+ 2H3+ 2H3+ 2H3+ Model type C11 0f C31 C11 0f C31 Model type C11 0f C31 C11 0f C31 Heat input Hi Heat input Hi...

  • Page 24: User Guide

    UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL 8.3 TECHNICAL DATA Roundscreen Misty Country UK/IRL UK/IRL Category 2H3+ 2H3+ Model type C11 0f C31 C11 0f C31 Heat input Hi Efficiency class NOX class Type of gas USER GUIDE Inlet pressure mbar 30 / 37 Gas rate 15 °C / 1013 mbar m3/h kg/h...

  • Page 25: Safety Instructions For The User

    UK/IRL UK/IRL 9. SAFETY INSTRUCTIONS FOR THE IMPORTANT A suitable Fireguard conforming to BS6539 and BS6778 should be used USER with this appliance to protect children, the elderly or infirm. Care should also be taken with pets. 9.1 General safety instructions In your own interest and that of safety, all gas appliances must be If a gas leak is found or suspected, turn off the gas supply at the installed by competent persons.

  • Page 26: Controling The Appliance

    Open the ashtray door by pushing on the right side for the heated the flame supervision thermocouple sufficiently to operate a hold- Silence/Feeling and on the left side for the Whisper. on magnet within the valve. Now turn the control knob A to the position.
  • Page 27 UK/IRL UK/IRL 10.3 To extinguish 10.4.1 To light 1. Push in and turn the control knob (A) from { anticlockwise to 1. For the main burner turn the control knob B clockwise to the setting (small flame). You will hear a ignition click. Check position {.
  • Page 28 UK/IRL UK/IRL 10.4.3 Setting the right transmission code 10.4.4 Changing the batteries he receiver has to learn the code from the transmitter, which is already There is no risk of electric shock as the low voltage supply is similar done at the factory. However the code disappears if the receiver is to that used in torches.

  • Page 29: Cleaning And Service Instructions

    UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL UK/IRL 12. DISPOSAL OF THE PACKAGING 11. CLEANING AND SERVICE AND THE APPLIANCE INSTRUCTIONS The appliance packaging is recyclable. The packaging could include Important: the following materials: Turn off the fire and allow it to cool down before - cardboard;...
