Faber PURE BF80S Installation Manual And User's Manual

Room-sealed built-in gas-fireplace
Hide thumbs Also See for PURE BF80S:
Table of Contents

Advertisement

Quick Links

See also: User Manual
PURE
(BF80S)
SILENCE
FEELING
SENSE
WHISPER
SPECTRA NOVA
CADRA NOVA
MISTY
Room-sealed built-in gas-fireplace with "Log Burner Technology"
Installation guide and user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURE BF80S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Faber PURE BF80S

Summary of Contents for Faber PURE BF80S

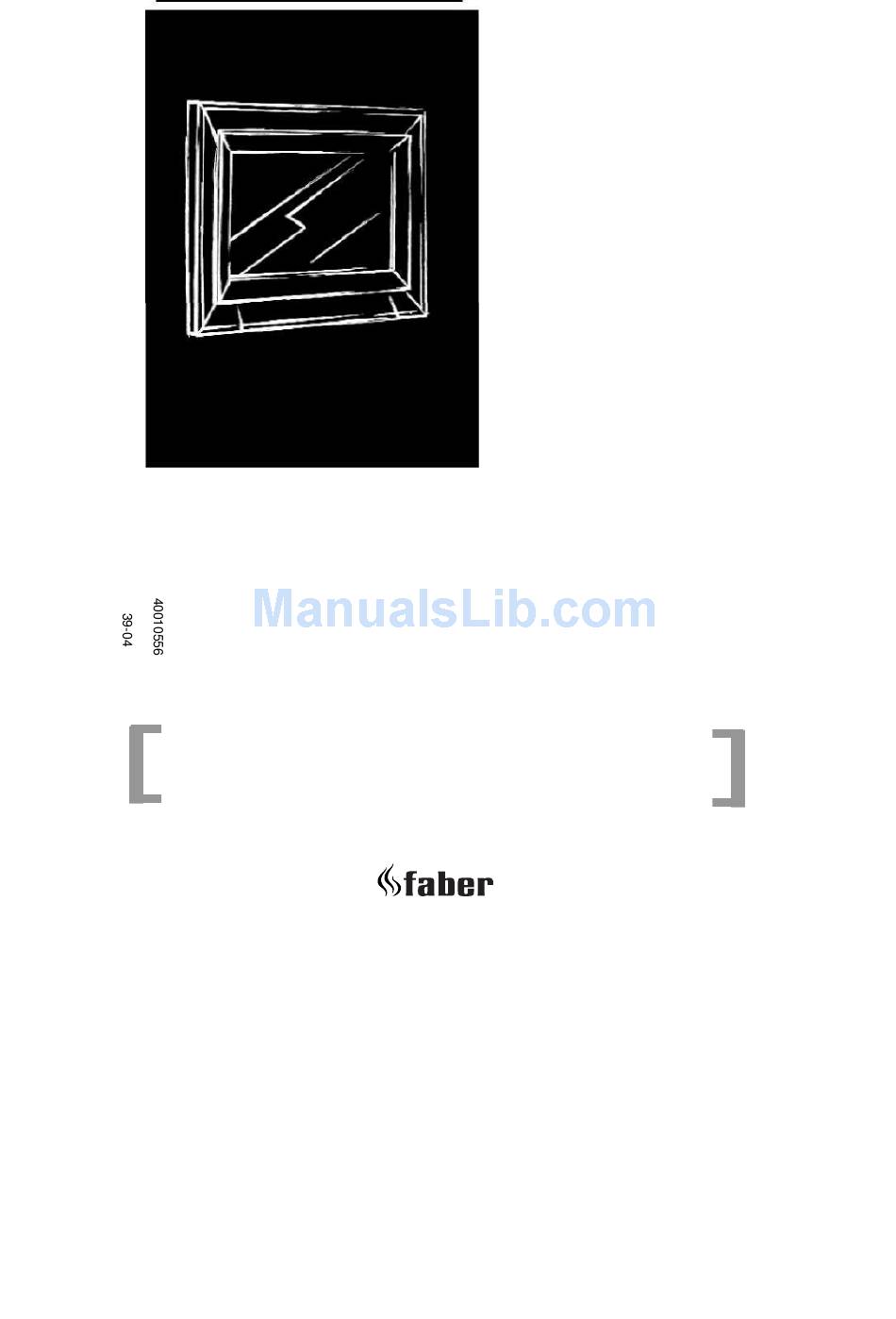

  • Page 1 PURE (BF80S) SILENCE FEELING SENSE WHISPER SPECTRA NOVA CADRA NOVA MISTY Room-sealed built-in gas-fireplace with “Log Burner Technology” Installation guide and user manual...
  • Page 2 UK/IRL < < < <...

  • Page 3: Table Of Contents

    5.2.3 Preparing the Sense ................. 19 5.2.4 Preparing the Widescreen and Whisper ..........19 5.2.5 Preparing the Pure (BF80S)..............21 5.2.6 Preparing the Misty................22 5.2.7 Preparing the Spectra Nova and Cadra Nova ..........24 Placing the appliance ............25 Placing the log set ............
  • Page 4 UK/IRL 10.4.2 Setting the right transmission code ............51 10.4.3 Changing the batteries..............52 Cleaning and service instructions........... 53 Disposal of packaging and appliance ..........54 < < < <...
  • Page 5 UK/IRL 2 Introduction Note: these instructions should be read carefully and retained for future reference. Please leave these instructions with the user. This guide is concerning the following types of appliances: • Widescreen interior: Types Silence and Feeling • Roundscreen interior: Type Misty •...

  • Page 6: Safety And General Information

    UK/IRL 3 Safety and general information • Before installation, ensure that the local distribution conditions (identification of the type of gas and pressure) and the adjustment of the appliance are compatible. • This gas appliance is factory set and shall not be adjusted by the installer.
  • Page 7 UK/IRL In the Republic of Ireland installation should be carried out in accordance with IS813, ICP3, IS327, Building Regulations, Codes of Practice, the manufacturers instructions and any other rules in force. Failure to comply with the above could leave the installer liable to prosecution and invalidate the appliance warranty.

  • Page 8: Installation Requirements

    UK/IRL 4 Installation requirements Note: Since the appliance is a source of heat, circulation of air occurs. Therefore it is of importance that you do not use the appliance shortly after a renovation of the home. Because of the natural circulation of air, moist and volatile components from paint, building materials, carpet etc.
  • Page 9 UK/IRL Builders opening (mm) Feeling Sense Silence Pure Whisper Spectra Cadra Misty (BF80S) Nova Nova Builders opening (mm) A Opening width B Opening height C Opening depth (min.) Shelf dimensions Minimum height shelf from top frame E Depth shelf Dimensions of the appliance (mm)

  • Page 10: Flue Requirements

    UK/IRL If the builders' opening is constructed out of non-combustible composition board (Fibrelux) and you install the appliance without a mantel then: • Ventilate the space above the appliance (min. 1000 mm2 ). • Always fit the DC convection set. •...
  • Page 11 UK/IRL Determine on the base of the table 2 and 3, depending on the type and terminal position, if the desired situation is possible. To establish this you will need to calculate: • The effective height (this is the real difference in height between the upper side of the appliance and the terminal).

  • Page 12: Tables For Determining The Right Flue Restrictor

    UK/IRL restrictor. Remove the flue restrictor! When calculating on basis of theMV150 table nr. 4: Allowed but without flue restrictor. Remove the flue restrictor! When calculating on basis of the Roundscreen table nr. 5: Allowed but without flue restrictor. Remove the flue restrictor! Example calculation 2 Calculation horizontal extension fig.
  • Page 13 Combination NOT allowed remove flue restrictor Table 3: MV200 (Pure (BF80S), Spectra Nova, Whisper) Horizontal length in m 0/X* The numbers in the table represent the width in mm of the...
  • Page 14 UK/IRL Tabel 4: binnenwerk MV150 (Cadra Nova) Horizontal length in m The numbers in the table represent the width in mm of the flue restrictor Combination NOT allowed remove flue restrictor Tabel 5: binnenwerk Roundscreen (Misty) Horizontal length in m The numbers in the table represent the width in mm of the flue restrictor...

  • Page 15: Terminal Position

    UK/IRL 4.3.1 Terminal position Verify if the required terminal position meets the local installation regulations regarding disturbance, good functioning and ventilation. (Also see: safety requirements). Note: The terminal must be located so that the outlet is not obstructed. If the flue terminal is located within 2 meters of a footway, path or where people could come into contact with it then a suitable terminal guard must be fitted.
  • Page 16 UK/IRL Flue terminal Fig. 3 Tabel 6 Dimension Terminal position Balanced flue (kW input 7.5 kW expressed in net) room sealed Natural Draught Direct below an opening, airbrick, opening windows, etc. Above an opening, airbrick, opening window, etc. Horizontally to an opening, airbrick, opening window, etc.
  • Page 17 UK/IRL Example of how terminal position is measured Fig. 4 4.3.2 Using an existing chimney as air inlet You can connect the appliance onto an existing chimney. The existing chimney then functions as air supply, where a flexible stainless steelliner (to BS715) of 100 mm performs the flue function.

  • Page 18: Gas Connection

    UK/IRL 5 Instructions for installation Gas Connection Installation pipes should be in accordance with BS 6891. Pipe work from the meter to the appliance must be of adequate size. The complete installation including the meter must be tested for soundness and purged as described in the above code. A means of isolation must be provide in the supply to facilitate servicing.

  • Page 19: Preparing The Sense

    UK/IRL 5.2.3 Preparing the Sense Pull the underside of the inner frame towards you. Push the blocking strips up. Lift the inner frame and remove it. 5.2.4 Preparing the Widescreen and Whisper Open the ashtray door by pushing on the right side for the Silence/Feeling and on the left side for the Whisper.
  • Page 20 UK/IRL Take the box with the log set out of the combustion chamber. Fig. 5 Place the right flue restrictor in the combustion chamber. To determine the right flue restrictor, see paragraph 4.2 and 4.3. Fig. Attention: If possible, first install the appliance before building up the false chimney breast.

  • Page 21: Preparing The Pure (Bf80S)

    UK/IRL 5.2.5 Preparing the Pure (BF80S) Remove the frame by lifting it up from its support and taking it away. Remove the glass by removing the glass clamps C (see fig. 7), e.g. with a screwdriver. Careful when removing the glass! Wear gloves! Before placing the glass back, be sure that there are no fingerprints on the glass, it is not possible to remove them when they are burnt in.

  • Page 22: Preparing The Misty

    UK/IRL Attention: If possible, first install the appliance before building up the false chimney breast. If possible, install the the appliance, before installing the flue. If this is not possible, a slidable piece of pipe should be used as connection. Leave a gap between the frame and wall, to ease the lifting and removal of the frame.
  • Page 23 UK/IRL To open the door, remove the screws C (see fig. 11). The door opening is limited; Remove the door for more space (lift and pull forward). Be sure that there are no fingerprints on the glass! It is not possible to remove those prints once they are burned in the glass.
  • Page 24 UK/IRL Attention: If possible, first install the appliance before building up the false chimney breast. If possible, install the the appliance, before installing the flue. If this is not possible, a slidable piece of pipe should be used as connection. 5.2.7 Preparing the Spectra Nova and Cadra Nova To open the door, remove the screws A (see fig.
  • Page 25 UK/IRL Take the box with the log set out of the combustion chamber. Like in the previous models, place the right flue restrictor in the combustion chamber (see fig. 13). To determine the right flue restrictor, see paragraph 4.2 and 4.3. Fig.15 Attention: •...
  • Page 26 UK/IRL Assemble the flue system onto the firebox (see chapter 5). Check if applicable that the safety hatch seals the combustion chamber properly. Do not fasten it at all! If you fasten it, this explosion safety hatch won’t function properly! Fig.16: Safety hatch If necessary, place the DC convection system (also consult the instruction belonging to the DC construction set).
  • Page 27 Never place extra elements of any kind into the combustion chamber. To guarantee good combustion, the log set may only be installed in the way specified by Faber International. Any other arrangement can lead to soot on logs or window. Do not use the fire with broken or missing logs.
  • Page 28 UK/IRL Fig. 20: Log set Widescreen Fig. 21: Log set Spectra Nova/Whisper Fig. 22: Log set Cadra Nova Fig. 23: Log set Misty On the bottom of the logs is an identification: • L location on the left side resting on the rear log. •...

  • Page 29: Connection With Use Of Concentric Duct Material

    UK/IRL 6 Installation of the flue Connection with use of concentric duct material Build the system starting from the appliance on. Make a hole of ø 153 mm for the wall or roof mounted terminal. Make sure you place the pipes in the right direction, the narrow end towards the appliance.
  • Page 30 UK/IRL • The chimney only supply’s air to this appliance; • The existing chimney needs to be clean and very well swept; • The existing chimney needs to be airtight; • The existing chimney needs to have an opening of min. 150 x 150 mm. Parts needed for this kind of installation: •...
  • Page 31 UK/IRL Install the appliance. Connect the flexible stainless steel liner onto the appliance using the 100mm pipe (F) as adapter. If the distance from the flue outlet to the sealing plate is bigger then 300 mm, you have to use a concentric pipe first. Slide the outside pipe onto the appliance or concentric extension so that you have a air tight connection.

  • Page 32: Installation Remote Control

    UK/IRL fig. 21 fig. 22 Installation remote control 6.3.1 1. Connect the mains adapter to the receiver box. The adapter is set to the correct voltage in the factory: 4.5 V. 2. Slide the receiver box into the holder. 3. Connect the wires to the gas valve (see fig. 22). 4.

  • Page 33: Check Pilot Ignition

    UK/IRL 7 Commisioning (functional checks) Check pilot ignition 1. Push in and turn the control knob A from anticlockwise to the (small flame) setting. You will hear a tick meaning there is ignition. Hold the knob in and wait for a few seconds while the air is purged. 2.

  • Page 34: Functional Balanced Flue Check

    UK/IRL Functional balanced flue check 1. Set the appliance on max. input. 2. Verify the flame picture, this means no flames against the window, the flame have to come besides the logs, if not check the log layout. 3. Check if the flames are yellow after 10 minutes of operation. If you still have a blue flame or the appliance goes out, check: If the flue pipes are fitted correctly (no leakage);...
  • Page 35 UK/IRL Measuring the reference pressure: 1. Turn off the gas valve on the appliance; 2. Turn the Inlet pressure test point C (see fig. 22) some and apply the (meetslang); 3. Check if the measured pressure is the same as the prescribed pressure; 4.

  • Page 36: Final Check And Handing Over

    UK/IRL 8 Final check and handing over Instruct the customer on the full operation of the appliance. Advise the customer how to clean the appliance including the glass. Instruct the customer on the operation of the remote control, including the replacement of batteries and how to set the right transmissions code.

  • Page 37: Cleaning The Glass

    UK/IRL 9 Final check and handing over To ensure safe and efficient operation of the appliance, it is necessary to carry out routine servicing at regular intervals. It is recommended, that the fire is inspected/serviced by a competent person at least once a year. Important: turn off the gas supply before commencing any servicing.

  • Page 38: Cleaning The Combustion Chamber And Burner

    UK/IRL • Important: be sure that there are no fingerprints on the glass. It is not possible to remove those prints after you burn the appliance for a while (they are burnt in). 9.1.2 Cleaning the combustion chamber and burner 1.

  • Page 39: Propane Conversion

    UK/IRL 9.1.4 Gas control block 1. Unscrew the pilot system from the support; 2. Unscrew and remove the pilot system from the burner plate; 3. Disconnect the ignition/spark cabel (bougiekabel); 4. Disconnect the thermocouple from the pilot system; 5. Disconnect the gas connection from the pilot system. Mind the injector: it is unattached;...

  • Page 40: List Of Spare Parts

    UK/IRL List of spare parts Whisper Pure Feeling Sense Silence Spectra Cadra (BF80S) Nova Nova Description Surround A9271453 90847748 A92700xx A92766xx A92766xx A92741xx A92700xx Glass 04508200 04510600 04508300 04508300 04508300 04509500 04509300 Glas below 04509600 04509400 Burner NG 20521405 20521808 20525905 20525705 20525905 20521405 20522605...
  • Page 41 UK/IRL Silence/Feeling Country UK/IRL UK/IRL Category II2H3+ II2H3+ Type C11 of C31 C11 of C31 Type of gas Heat input Hi (net) [kW] Efficiency class NOX class Inlet pressure [mbar] 20 30/37 gas rate ( 15º C en 1013 mbar) [l/h] (Bij 15º...
  • Page 42 UK/IRL MV 100 Whisper / Spectra-nova / Pure (BF80S) Country UK/IRL UK/IRL Category II2H3+ II2H3+ Type C11 of C31 C11 of C31 Type of gas Heat input Hi (net) [kW] Efficiency class NOX class Working pressure [mbar] 30/37 gas rate ( 15º C en 1013 mbar) [l/h] (Bij 15º...
  • Page 43 UK/IRL MV 150 Cadra Nova Country UK/IRL UK/IRL Category II2H3+ II2H3+ Type C11 of C31 C11 of C31 Type of gas Heat input Hi (net) [kW] Efficiency class NOX class Working pressure [mbar] 20 30/37 gas rate ( 15º C en 1013 mbar) [l/h] (Bij 15º...
  • Page 44 UK/IRL Roundscreen Misty Country UK/IRL UK/IRL Category II2H3+ II2H3+ Type C11 of C31 C11 of C31 Type of gas Heat input Hi (net) [kW] Efficiency class NOX class Working pressure [mbar] 20 30/37 gas rate ( 15º C en 1013 mbar) [l/h] (Bij 15º...

  • Page 45: User Guide

    UK/IRL User guide > > > >...
  • Page 46 UK/IRL < < < <...

  • Page 47: Safety Instructions For The User

    UK/IRL 10 Safety instructions for the user 10.1 General safety instructions • These instructions should be read carefully and retained for future reference. • Do not place flamable materials in the combustion chamber. • If a gas leak is found or suspected, turn off the gas supply at the meter and contact your installer or gas emergency service.
  • Page 48 UK/IRL IMPORTANT A suitable Fireguard conforming to BS6539 and BS6778 should be used with this appliance to protect children, the elderly or infirm. Care should also be taken with pets. In your own interest and that of safety, all gas appliances must be installed by competent persons.

  • Page 49: General

    UK/IRL 11 Controlling the appliance 11.1 General If the main burner or pilot light are extinguished for any reason, do not attempt to relight the pilot within 5 minutes. Contact a qualified installer when the appliance goes off regularly. With control button A you can light the pilot. With the control button B you can adjust the height of the flames (see figure).

  • Page 50: To Light

    UK/IRL Knob B is the OFF position preventing gas entering the main burner if the pilot is lit. The knob should be turned slowly anticlockwise. This allows gas to enter the burner and be ignited by the pilot flame. Once ignition has taken place, the fire may be set to any level between min.
  • Page 51 UK/IRL 11.4 Remote control versions The remote control is only meant to regulate the flames from ‘off’ till ‘max.’. It functions only when the pilot burner is ignited and knob A is in (big flame) position. It is therefore not possible to ignite the pilot flame with the remote control or to extinguish the pilot flame.
  • Page 52 UK/IRL 3. The green control lamp will light up and stay on. Repeat this step if it doesn't; 4. Push a button on the remote control. The control lamp on the receiver should now go out; fig. 27 Rear of 5.

  • Page 53: Cleaning And Service Instructions

    UK/IRL 12 Cleaning and service instructions Important: Turn off the fire and allow it to cool down before commencing cleaning. It is recommended that the fire is inspected/serviced, by a competent person at least once a year. To maintain the finish on the trim wipe with soft damp cloth only.

  • Page 54: Disposal Of Packaging And Appliance

    UK/IRL 13 Disposal of packaging and appliance The appliance packaging is recyclable. The packaging could include the following materials: • Cardboard; • CFC-free foam (soft); • Wood; • Plastic; • Paper; • Batteries. These materials should be disposed responsibly and in conformity with government regulations.
  • Page 55 UK/IRL > > > >...
  • Page 56 UK/IRL Saturnus 8 NL - 8448 CC Heerenveen P.O. Box 219 NL - 8440 AE Heerenveen +31(0)513 656500 +31(0)513 656501 < < < <...
