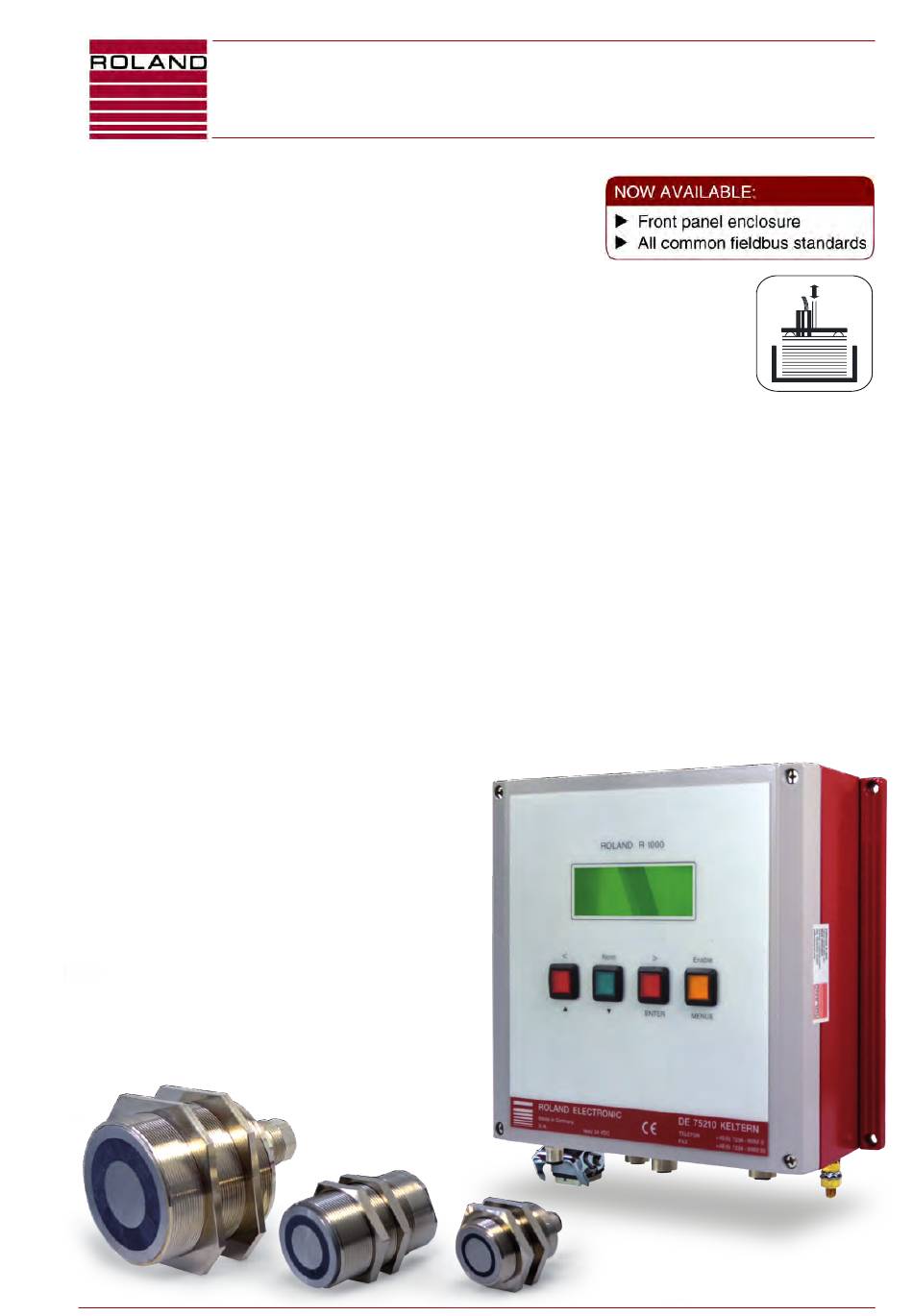

Double Sheet Detector
R1000-series E20
with integrated fieldbus interface
Pos : 1 /D oppelbl ec h/Geräte/E20/Dec kbl att/D ec kbl att @ 0\mod_1173195768953_501.doc @ 3188
Electro magnetic principles –
microcontroller based
Single – sided contact double sheet control of ferrous materials
No force after measurement
4 exchangeable sensors for double sheet control of 0.1 – 12 mm (.004 - .472 inch) sheet
thickness
Optional version 4P allows connection of up to four identical sensors
►
Programmable for 255 different sheet thicknesses and materials
►
Calibration without sheet samples
►
Digital display of sheet thickness and operational parameters
►
Monitoring of over-gauge and under-gauge limit
►
Monitoring of operating voltage and sensor gap
►
Galvanically isolated 3-bit input interface and 5-bit output interface
►
Integrated fieldbus interface with process and parameter interface
− Profibus DP
− ControlNet
− DeviceNet
− Interbus-S
− CanOpen
− ProfiNet IO
− CC-Link
− EtherNet/IP
− EtherCAT
DOUBLE SHEET CONTROL E20
