DOUBLE SHEET CONTROL R1000 SERIES E20
Pos : 1 /D oppelbl ec h/Geräte/E20/Dec kbl att/D ec kbl att @ 1\mod_1192448868578_501.doc @ 5029

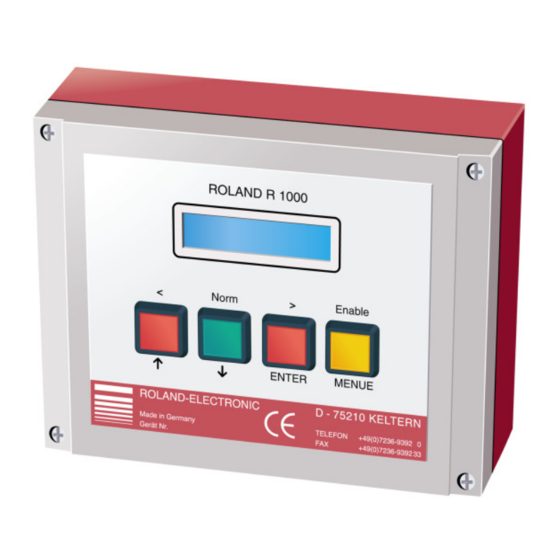

Double Sheet Detector E20
R1000 series
Electro magnetic principles –
microcontroller based
Single – sided contact double sheet control of ferrous materials
No force after measurement
Double sheet control of 0.1 to 6.5 mm (.004 to .255 in.) sheet thickness
6 exchangeable sensors for double sheet control
Optional version 4P allows connection of up to four identical sensors
►
Programmable for 255 different sheet thicknesses and materials
►
Digital display of sheet thickness and operational parameters
Monitoring of over-gauge and under-gauge limits
►
►
Monitoring of operating voltage and measuring time
►
Opto-coupled 9-bit resp. 11-bit input interface
Selectable interfaces:
►
Data communication and parameter backup via optional opto-coupled RS232 interface
Relay or opto-coupled outputs for under gauge, nominal gauge, over gauge and enable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Roland R1000 Series

Summary of Contents for Roland R1000 Series

  • Page 1 DOUBLE SHEET CONTROL R1000 SERIES E20 Pos : 1 /D oppelbl ec h/Geräte/E20/Dec kbl att/D ec kbl att @ 1\mod_1192448868578_501.doc @ 5029 Double Sheet Detector E20 R1000 series Electro magnetic principles – microcontroller based Single – sided contact double sheet control of ferrous materials No force after measurement Double sheet control of 0.1 to 6.5 mm (.004 to .255 in.) sheet thickness...
  • Page 2 2007 ROLAND ELECTRONIC GmbH Otto-Maurer-Str. 17 DE 75210 Keltern All rights on this document are at Roland Electronic GmbH. Reproduction (also partly), electronical coverage, translation, transmission to third parties, only with our prior permission. Subject to change without further notice.

  • Page 3: Table Of Contents

    Spring mounted sensor holder SHX42 ..................55 4.3.5 Spring loaded sensor bracket SHS42G-FB (with bellow suction cup) ........58 4.3.6 Clamping bracket SHK .......................59 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 4 External zero adjust (via PLC inputs)..................89 6.3.6 External Teach-In (via PLC inputs) .................... 91 6.3.7 Typical measurement cycle for unit in destacking application ........... 93 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 5 Replacement of sensors .......................123 10.2 Exchange of control unit........................125 10.3 Replacement of fuses ........................125 10.4 Data back up via the serial interface.....................126 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 6 Other accessories ........................132 Appendix .............................133 13.1 Sensor data (Measuring time) of older hardware versions 1…4..........133 13.2 System configuration form......................136 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 7: Declaration Of Conformity According To Ec Directives

    The safety instructions and warnings must be observed. ISO 9001 : 2008 Reg.-no. 5152 QM08 Pos : 3 /Komponenten allgemein/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 8 B0046991 / Rev. 1.6 Safety advices Blank page Pos : 4 /Kapitelübersicht/01. Sic herheits hinweise @ 0\mod_1121421059859_501.doc @ 505 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 9: Safety Advices

    Useful reference to an application or deepening information. Pos : 7 /D oppelbl ec h/Geräte/E20/1 Sic herheits hinweise/Besti mmungsgemäß er Gebrauch @ 0\mod_1192448571906_501.doc @ 4694 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 10: Intended Use

    Pos : 8 /Kapitelübersicht/02. Technisc he Daten @ 0\mod_1121421119875_501.doc @ 506 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 11: Technical Data

    Emitter and Collector − max. switching voltage: 50 VDC − max. switching current: 150 mA − max. switching power: 100 mW ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 12 Pos : 10 /D oppel blech/Geräte/E20/2 T ec hnische D aten/Varianten des Aus werteg erätes E20 @ 1\mod_1216127949937_501.doc @ 6489 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 13: Versions Of The Control Unit E20

    Pos : 11 /D oppel blech/Geräte/E20 Bus/2 T ec hnisc he D aten/Sensor en @ 0\mod_1173874548734_501.doc @ 3902 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 14: Sensors

    Related to single sheet thickness Pos : 13 /D oppel blech/Sensor en/P-Sensor en/P42AGS/P42AGS T ec hn. D aten @ 1\mod_1304516447682_501.doc @ 9130 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 15: Sensor P42Ags

    Related to single sheet thickness Pos : 14 /D oppel blech/Sensor en/P-Sensor en/P75/P75VGS Techn. D aten @ 0\mod_1138636403405_501.doc @ 1248 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 16: Sensor P75Vgs

    Pos : 15 /D oppel blech/Geräte/E20/2 T ec hnische D aten/Sensor daten @ 1\mod_1216127886437_501.doc @ 6471 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 17: Sensor Performance Data (Measuring Time)

    The advantage in measuring time is significant, if the thickness of material Note is considerably lower than the measuring range of the sensor. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 18 120 % 3 sensors 2 sensors 1 sensor Single sheet thickness (Nominal thickness) [mm] Standard working range Fig. 5: System reaction time P30GS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 19 120 % 3 sensors 2 sensors 1 sensor Single sheet thickness (Nominal thickness) [mm] Standard working range Fig. 6: System reaction time P42AGS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 20 1000 2 sensors 1 sensor Single sheet thickness (Nominal thickness) [mm] Standard working range with restriction Fig. 7: System reaction time P75VGS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 21 The data apply for a set upper limit of 120%. Pos : 16 /D oppel blech/Geräte/E20/2 T ec hnische D aten/Sensor kabel @ 1\mod_1216127933828_501.doc @ 6483 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 22: Sensor Cables

    2 x 1 mm² cable must be used. The cable length can be to up to 50 m. Following the rule "the shorter the better" generally leads to better measuring results. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 23 Pull cable back until the shield and the contact springs inside the PG-gland connect. • Close PG-gland 20mm Kabelabschirmung Cable shield Fig. 8: Connecting cable to PC-gland ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 24: Sensor Cables For Direct Connection Of Sensor

    The cable is drag cable suitable and oil resistant. Cable type: • Oilflex FD810CY 2 x 1mm • Unitronic FDCP (TP) plus 1 x 2 x 1mm (UL / CSA) ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 25 The cable is drag cable suitable and oil resistant. Cable type: • Oilflex FD810CY 2 x 1mm • Unitronic FDCP (TP) plus 1 x 2 x 1mm (UL / CSA) ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 26: Sensor Cable Extensions

    The cable is drag cable suitable and oil resistant. Cable type: • Oilflex FD810CY 2 x 1mm • Unitronic FDCP (TP) plus 1 x 2 x 1mm (UL / CSA) ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 27 Unitronic FDCP (TP) plus 1 x 2 x 1mm (UL / CSA) Pos : 17 /Kapitelübersic ht/03. Sys tembeschr eibung @ 0\mod_1121421150062_501.doc @ 507 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 28 Manual Double Sheet Detector R1000 series E20 B0046991 / Rev. 1.6 Technical data Blank page ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 29: System Description

    Pos : 20 /D oppel blech/Geräte/E20 Bus/3 Systembesc hrei bung/Hi nweis e z ur Proz esssic herheit @ 1\mod_1195739072046_501.doc @ 5234 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 30: General Hints For Process Security

    In case of double sheet fatal consequences could then result. Pos : 21 /D oppel blech/Geräte/E20/3 Sys tembeschr eibung/Aus werteg erät @ 0\mod_1192448590312_501.doc @ 4706 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 31: Control Unit

    Pos : 22 /D oppel blech/Geräte/E20/3 Sys tembeschr eibung/Parameter des Aus wer teger ätes @ 1\mod_1192534880062_501.doc @ 5043 @ 233 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 32: Parameters Of The Control Unit

    0.5 seconds for P42, P30, P42A, P75V; 1 second for P36; 2 seconds for P75. “Baud rate“ Baud rate of the RS232 interface for data communication. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 33 “E20-x-x(1)“ or E20-4P-x-x(x) “SW:xx HW:xx“ Identification of unit. Needs to be at hand for telephone support. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 34: Program Parameters

    Extending the 1-sheet range is commonly considered due to mechanical problems (air gap, uneven sheets). This measure prevents the machine from standstill, until the mechanical problem is solved. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 35 Pos : 23 /D oppel blech/Geräte/E20/3 Sys tembeschr eibung/Anwendungsbeis piel e @ 0\mod_1192448588625_501.doc @ 4700 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 36: Application Samples

    (sequencing) can be made as follows: a) by program switching b) by external sensor selection A/B c) with the so-called sequencer mode ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 37 11. Measuring program 4 12. Anal y sis result of program 4 Sensor selection via "program" must be selected in the system Note configuration. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 38 12. Anal y sis result of program 4 Sensor selection via "external (inputs A and B)" must be selected in the Note system configuration. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 39 A separate selection of the "sequencer mode" is not required. The sequence of addressing the sensors is done in the program parameters section under "sensor number". ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 40 Pos : 24 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 Pos : 25 /Kapitelübersic ht/04. M ontage @ 0\mod_1121421173015_501.doc @ 508 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 41: Mounting

    In case of panel or operator consoles the front panel version should be used. Pos : 27 /D oppel blech/Geräte/E20/4 M ontage/Abmess ung en des Gerätes @ 0\mod_1192448643640_501.doc @ 4766 @ 233 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 42: Dimensions Of The System

    M4 102,75 All dimensions are in mm. Tolerance: ±0.2 mm Fig. 14: Dimensions of the wall mount enclosure - connection view ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 43 M4 All dimensions are in mm. Tolerance: ±0.2 mm Fig. 15: Dimensions of the wall mount enclosure - front view ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 44: System With Enclosure For Front Panel Mounting

    Philips head screw M4 DIN 74 All dimensions are in mm. Tolerance: ±0.2 mm Fig. 16: Dimensions of the front panel enclosure -front view ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 45 Fig. 17: Dimensions of the front panel enclosure -lateral view Pos : 28 /D oppel blech/Geräte/E20 Bus/4 M ontage/Sensor montag e @ 0\mod_1173693761984_501.doc @ 3414 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 46: Mounting Of Sensors

    Pos : 29 /D oppel blech/Sensor en/Allgemein/C hec kliste z ur M ontage kontaktier ender Sens or en @ 1\mod_1223292024109_501.doc @ 7533 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 47: Checklist For Mounting Of Contacting Sensors

    Pos : 30 /D oppel blech/Sensor en/Sens or halterungen/Gefederte Sensor halterung SH42GS + SH 75GS @ 1\mod_1215005512578_501.doc @ 6405 @ 34 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 48: Spring Loaded Sensor Bracket

    Ideally the spring mounted bracket should be pre-loaded in order to ensure that the sensor is presented perpendicular to the sheet even under dynamic conditions. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 49 Manual Double Sheet Detector R1000 series E20 B0046991 / Rev. 1.6 Mounting Fig. 18: Overview Sensor bracket ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 50 View in direction "A" without sensor ø20.5 All Dimensions are in mm. Tolerance: ±0.4 mm. Fig. 19: Spring loaded sensor bracket SH42GS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 51 Pos : 31 /D oppel blech/Sensor en/Sens or halterungen/Gefederte Sensor halterung SHS42GS + SHS75GS mit Fl ac hsauger @ 1\mod_1215005515656_501.doc @ 6417 @ 344 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 52: Spring Loaded Sensor Bracket With Flat Suction Cup

    Spring travel of SHS42GS and SHS75GS ausgefedert (Zug) unbelastet eingefedert (Druck) extracted (pull) unstressed retracted (pressure) Fig. 21: Spring travel for SHS42GS and SHS75GS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 53 View in direction "A" Rubber nipples without clamping bracket Sensor edge Connection 1/4" ø20.5 Fig. 22: Spring loaded sensor bracket SHS42GS with flat suction cup ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 54 Fig. 23: Spring loaded sensor bracket SHS75GS with flat suction cup Pos : 32 /D oppel blech/Sensor en/Sens or halterungen/Gefederte Sensor halterung SHX42 @ 1\mod_1215005516500_501.doc @ 6422 @ 34 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 55: Spring Mounted Sensor Holder Shx42

    The holder may not carry loads. Only small, light weighted parts can be directly transported with the sensor holder. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 56 Pull the rubber disc over the lower edge. Pay attention for undamaged sealing lips at the inner and outer edge as well as for uniform projection of the sealing edge. The gasket can be bilaterally used. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 57 Pos : 33 /D oppel blech/Sensor en/Sens or halterungen/Gefederte Sensor halterung SHS42G-FB mit F altenbalgs aug er @ 1\mod_1215005514906_501.doc @ 6410 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 58: Spring Loaded Sensor Bracket Shs42G-Fb (With Bellow Suction Cup)

    Abb. 27: Sensor bracket SHS42G-FB Pos : 34 /D oppel blech/Sensor en/Sens or halterungen/Klemmvorrichtung SH K @ 1\mod_1215005517687_501.doc @ 6429 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 59: Clamping Bracket Shk

    Pos : 35 /D oppel blech/Geräte/E20 Bus/4 M ontage/F ehl erhafter Einbau der P- Sens oren @ 0\mod_1173692370656_501.doc @ 3394 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 60: Incorrect Mounting Of The P Sensors

    Fig. 29: incorrect mounting of the p sensors Pos : 36 /D oppel blech/Geräte/E20 Bus/4 M ontage/El ektr omag netische Störungen @ 0\mod_1173692244625_501.doc @ 3389 @ 3 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 61: Electromagnetic Interference

    The sensor cables should not be placed directly adjacent to cables with large interference potential, e.g. power supply cable. This applies especially to longer cable lengths. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 62 B0046991 / Rev. 1.6 Mounting Blank page Pos : 37 /Kapitelübersic ht/05. Elektrische Install ati on @ 0\mod_1121421905234_501.doc @ 509 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 63: Electrical Installation

    Allocation of connectors at the E20 RS232 SPS / PLC Power Sensor PG16 PG11 EMV Fig. 30: Allocation of connectors at the E20 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 64: Allocation Of Connectors At The E20-4P

    Pos : 41 /D oppel blech/Geräte/E20/5 Elektrisc he Installati on/Verdr ahtungspl äne und Kl emmenbeleg ung @ 1\mod_1192448670343_501.doc @ 4820 @ 2333333 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 65: Wiring Diagrams And Pin Configurations

    The highlighted areas are relevant only for the 4P versions. The positive supply voltage +24 VDC should not be connected to Attention machine ground. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 66: Pin Configuration E20 - Version B, Relay Outputs

    1mm² (up to 20 m length) Central machine grounding min. 1,5 mm² The positive supply voltage +24 VDC should not be connected to Attention machine ground. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 67 / brown The pin 5 is only present at the cable connector of the sensor cable. The sensor has no pin 5 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 68: Wiring Diagram Version B, Opto Coupler Outputs

    The highlighted areas are relevant only for the 4P versions. The positive supply voltage +24 VDC should not be connected to Attention machine ground. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 69: Pin Configuration E20 - Version B, Opto Coupler Outputs

    1mm² (up to 20 m length) Central machine grounding min. 1,5 mm² The positive supply voltage +24 VDC should not be connected to Attention machine ground. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 70 / brown The pin 5 is only present at the cable connector of the sensor cable. The sensor has no pin 5 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 71: Wiring Diagram Version C, Opto Coupler Outputs

    The highlighted areas are relevant only for the 4P versions. The positive supply voltage +24 VDC should not be connected to Attention machine ground. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 72: Pin Configuration E20 - Version C, Opto Coupler Outputs

    1mm² (up to 20 m length) Central machine grounding min. 1,5 mm² The positive supply voltage +24 VDC should not be connected to Attention machine ground. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 73 The sensor has no pin 5 Pos : 42 /D oppel blech/Geräte/E20/5 Elektrisc he Installati on/Kabel-Ansc hlüs se @ 1\mod_1192448669500_501.doc @ 4814 @ 233 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 74: Cable Connections

    Pos : 43 /D oppel blech/Geräte/E20/5 Elektrisc he Installati on/Ansc hlus s P- Sens oren und Sens or kabel @ 1\mod_1193059331000_501.doc @ 5134 @ 233 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 75: Connectors Of The P-Sensors And The Sensor Cable

    Pos : 44 /D oppel blech/Geräte/E20/5 Elektrisc he Installati on/Ansc hlus spl äne @ 1\mod_1193144590328_501.doc @ 5153 @ 2333 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 76: Connecting Diagram - Examples

    (shield) Pin 5 black (1) [white] Pin 6 black (2) [brown] blank (shield) Fig. 33: Connecting diagram E20 with 1 sensor ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 77: Connecting Diagram E20 With One Sensor And Cable Extension

    Pin 5 black (1) [white] Pin 6 black (2) [brown] blank (shield) Fig. 34: Connecting diagram E20 with one sensor and cable extension ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 78: Connecting Diagram E20-4P With 4 Sensors

    Pos : 45 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 Pos : 46 /Kapitelübersic ht/06. Kommuni kation mit der SPS @ 0\mod_1121421968312_501.doc @ 510 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 79: Communication With The Plc

    2-sheet output Standard 24 V active (selectable in system configuration) OUT0 ENABLE output Standard 24 V active (not selectable, for safety reasons) ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 80: Explanation Of Summary Output 0-Sheet, 1-Sheet And 2-Sheet

    HIGH Level at the outputs means relay is closed respectively opto coupler is low resistant. LOW Level at the outputs means relay is open respectively opto coupler is high resistant. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 81: System Test

    Then switch input IN5 “System test“ to LOW. After >100 milliseconds output OUT0 “Enable“ has to been switched to HIGH, outputs OUT1-3 to LOW. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 82: Measurement Menu Selection

    Bit4 Bit5 Bit6 Bit7 OUT1, 2, 3 2-1-0-sheet min. 30ms max. 40ms >=0ms min. 40ms >=0ms max. 40ms complete switching time 110ms ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 83 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 … … … … … … … … … Not used ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 84: Sensor Selection Via External Inputs (4P Version Only)

    High Level at the outputs means relay closed respectively opto Note coupler low resistant. Low Level at the outputs means relay open respectively opto coupler high resistant. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 85: Measurement Start / Stop

    If the recovery time is less than twice the measuring time, the sensor will warm up and the measuring value will drift. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 86 After more than 30 milliseconds switch input IN0 “Measurement Start“ to LOW. Continue to interrogate the outputs OUT1-3 until (after the systems reaction time t ) the measurement result is available. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 87 "Measurement Start" has been recognized (For details refer to chapter 2.4). additional breaks • P30, P42, P42A, P75V 0.5 Seconds • 1.0 Second • 2.0 Seconds ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 88 The measurement is aborted, the last measurement result is now available at the outputs OUT1-3. The measurement result is frozen until a new cycle is initiated. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 89: External Zero Adjust (Via Plc Inputs)

    Note OUT0 Enable IN0-1, 3-10 Zero adjust OUT3 0-sheet OUT2 1-sheet OUT1 2-sheet > 30ms < 30ms < 7 sec. > 30ms ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 90 After 30 milliseconds check whether outputs 1-3 have been switched to HIGH. Now switch input IN2 to LOW. After >7 seconds check whether the outputs 1-3 have been switched to LOW. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 91: External Teach-In (Via Plc Inputs)

    Teach-in procedure. OUT0 Enable IN0-1, 3-10 Teach-In OUT3 0-sheet OUT2 1-sheet OUT1 2-sheet > 30ms < 30ms < 7 sec. > 30ms ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 92 After 30 milliseconds check whether outputs 1-3 have been switched to HIGH. Now switch input IN1 “teach-in“ to LOW. After >7 seconds check whether the outputs OUT1-3 have been switched to LOW. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 93: Typical Measurement Cycle For Unit In Destacking Application

    The refresh rate of the measurement is dependent on the sensor type: • P30, P42, P42A, P75V 1 Second • 2 Seconds • 4 Seconds ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 94: Serial Interface Rs232 (Version C Only)

    1 Stop bit (High) • 300 - 19200 Baud A parity bit as well as software and hardware handshakes are not available. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 95: Data Format And Commands (Version C Only)

    11=S1+S2+S3; 12=S1+S2+S4; 13=S1+S3+S4; 14=S2+S3+S4; 15=S1+S2+S3+S4 ** request sensor no. X *** The data written back from the R1000 have the same data format as for download. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 96 Byte Measurement value • Dimension Error status If no measured value is present, then it supplies: at mm: STX,0,M,+,-,-,.,-,-,-,-,M,M,QH,QZ,QE,ETX at inch: STX,0,M,+,-,.,-,-,-,-,-,I,N,QH,QZ,QE,ETX ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 97 Teach factor S3 • Teach factor S4 • Pos : 51 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 98 B0046991 / Rev. 1.6 Communication with the PLC Blank page Pos : 52 /Kapitelübersic ht/07. Inbetriebnahme @ 0\mod_1121421999890_501.doc @ 511 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 99: Start-Up

    Then the system switches into that measurement menu, which was active before the unit was switched off. Pos : 54 /D oppel blech/Geräte/E20/7 Inbetriebnahme/Bedi enung @ 1\mod_1192448717265_501.doc @ 4886 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 100: Operation

    Activates the menu level, for deleting a fault message and exiting the menu level. Menu Pos : 55 /D oppel blech/Geräte/E20/7 Inbetriebnahme/Konfigurations menü @ 1\mod_1192448720609_501.doc @ 4910 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 101: Configuration Menu

    Sensor 1 on / off Sensor 2 on / off Sensor 3 on / off Sensor 4 on / off Fig. 38: Sub structure „Program parameter“ ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 102: Sub Structure "System Parameter

    Fig. 39: Sub structure „System parameter“ Pos : 56 /D oppel blech/Geräte/E20 Bus/7 Inbetriebnahme/Par ameter ( Allgemei n) @ 0\mod_1173272854968_501.doc @ 3219 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 103: General Information Regarding The Configuration

    Each blinking digit can be changed with the arrow keys and confirmed with ENTER. After having entered the correct password, the following menu appears for the adjustment of the configuration mode. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 104 Pos : 58 /D oppel blech/Geräte/E20/7 Inbetriebnahme/Parameter (Pr ogramm-) @ 1\mod_1192448721875_501.doc @ 4922 @ 233 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 105: Program Parameters

    A change of the nominal thickness deletes the values determined Note during teach-in. A new teach-in is required. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 106 All connected sensors must be zero adjusted individually (each sensor is addressed individually for “on“ or “off“). • common: All sensors are zero adjusted at the same time. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 107 A sheet must be attached to the sensor without air gap. The position Attention of the sheet during teach-in must be the same as for normal operation. Otherwise the measurement result could be faulty. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 108 The Teach-In affects only the selected program. Pos : 59 /D oppel blech/Geräte/E20/7 Inbetriebnahme/Parameter (Sys tem-) @ 1\mod_1192448722578_501.doc @ 4928 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 109: System Parameters

    In addition, %mm and %inch are also available. system param. Dimension: Fig.. 56: Selecting the dimension for the display ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 110 System parameter 6: Deleting all measuring programs. system param. CLR param.: Fig.. 59: Deleting of measuring programs The deletion cannot be undone. Attention ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 111 Fig.. 63: Indication of system version, here 4P with 3 sensors, Version C, Opto coupler This factory setting must not be changed! ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 112 Advantage: faster sensor switching procedure. • Program: Switching of sensor is accomplished via program selection. A sensor is assigned to each program. Advantage: less programming effort. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 113: Data Storage Via Serial Rs232-Interface

    Parameter backup active Fig. 68: Status of data backup Pos : 61 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 114 Double Sheet Detector R1000 series E20 B0046991 / Rev. 1.6 Start-up Blank page Pos : 62 /Kapitelübersic ht/08. Betrieb @ 0\mod_1121422024046_501.doc @ 512 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 115: Operation

    Selects a parameter for changing and confirming the change Enter Activates the menu level, for deleting a fault message and exiting the menu level. Menu ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 116: Entering A Measurement Program

    Return into the measurement mode with the MENU key Pos : 65 /D oppel blech/Geräte/E20 Bus/8 Betrieb/Null abgl eich durchführen @ 0\mod_1173279413765_501.doc @ 3259 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 117: Zero Adjust

    The display value is now corrected to 1.92 mm. Pos : 67 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 118 B0046991 / Rev. 1.6 Operation Blank page Pos : 68 /Kapitelübersic ht/09. F ehler meldung en @ 0\mod_1121422043093_501.doc @ 513 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 119: Fault Messages, Causes And Remedies

    • Transmission faults (RS232) • Measuring operating faults • Keyboard faults • Operating voltage faults • PLC input faults • Other faults ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 120: Faults Concerning Memory

    Check sheet for correct thickness. front of the sensor or the sheet thickness is wrong. Repeat teach-in. If fault appears again, the sensor might be defective. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 121: Faults Concerning Rs232 Transmission

    (by simultaneously pressing all 4 operation keys) and setting the correct values. Only then the fault condition will be redressed. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 122: Faults Concerning Keyboard

    Pos : 70 /Kapitelübersic ht/10. Wartung @ 0\mod_1121422080015_501.doc @ 514 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 123: Maintenance

    Control unit shows “remove sheet”. Confirm with the ENTER key Control unit shows “zero adjust: active“, then “zero adjust: off“ Exit the programming with the MENU key ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 124 The display will show “zero adjust: active“, and then “zero adjust: off“ Exit the programming with the MENU key. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 125: Exchange Of Control Unit

    Spare fuse (5 A medium-blow) Terminal blocks Enclosure lid Cover View: upper part flipped downside Fig. 71: Position of fuses in the E20 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 126: Data Back Up Via The Serial Interface

    Whether a spare control unit should be kept in inventory has to be decided on individual basis. Pos : 76 /Kapitelübersic ht/11. T ec hnische U nterlagen @ 0\mod_1121422102859_501.doc @ 515 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 127: Technical Records

    B-versions of the E20 (e.g. E20-B-R). Pos : 78 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 128 B0046991 / Rev. 1.6 Technical records Blank page Pos : 79 /Kapitelübersic ht/12. Bestelldaten @ 0\mod_1121422152468_501.doc @ 516 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 129: Order Data

    Pos : 81 /D oppel blech/Geräte/E20/12 Bes tell daten/Sens oren, Kabel, Stec ker, Sons tiges Z ubehör @ 1\mod_1192448811421_501.doc @ 5024 @ 2222 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 130: Sensors And Accessories

    Spare rubber pad, for suction cup SP42GS and for sensor bracket SHS42GS and SHX42 2395109 Spare rubber lips, for sensor bracket SHS42 and SHX42 or suction cup SP42 2395110 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 131: Cables

    Cable for inserting a quick disconnect between E20 and P36GS, SM12CPS-GW 2 x 1 mm² P42GS, P75GS, P75VGS in conjunction with cable CPM12S-G. Angled cable plug for connecting the sensor. ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 132: Sensors And Accessories - Only For Changing Over From R1000 E10 To R1000 E20

    Program selector switch for manual selection of 10 programs PWSE10 Pos : 82 /Kapitelübersic ht/13. Anhang @ 1\mod_1216365152421_501.doc @ 6533 @ 1 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 133: Appendix

    120% 3 sensors 2 sensors 1 sensor Single sheet thickness (Nominal thickness) [mm] Standard working range Fig. 72: System reaction time P30GS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 134 120% 3 sensors 2 sensors 1 sensor Single sheet thickness (Nominal thickness) [mm] Standard working range Fig. 73: System reaction time P42AGS ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...
  • Page 135 Pos : 84 /D oppel blech/Geräte/E20/11 T ec hnisc he U nterlagen/F ormul ar Systemkonfigur ati on @ 1\mod_1192448791296_501.doc @ 5000 @ 2 @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

  • Page 136: System Configuration Form

    Pos : 85 /Komponenten allgemei n/Ende des Dokumentes @ 1\mod_1213366928796_501.doc @ 6363 @ @ 1 ---------- End of Document ---------- Pos : 86 /Komponenten allgemei n/Leers eite @ 0\mod_1165223317234_501.doc @ 2343 @ @ 1 ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33...

This manual is also suitable for:

E20

Table of Contents

Save PDF
