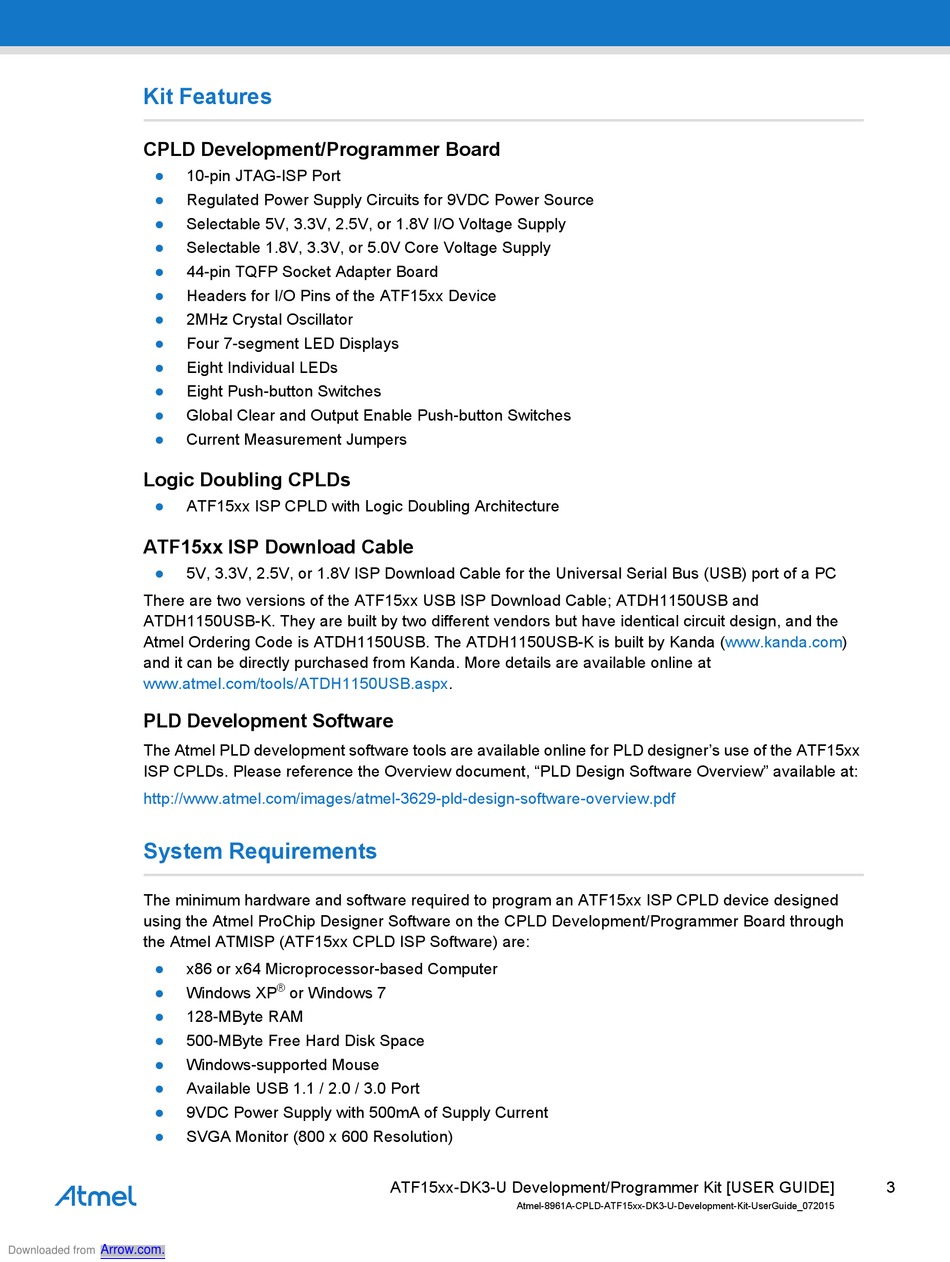

Kit Features

CPLD Development/Programmer Board

10-pin JTAG-ISP Port

Regulated Power Supply Circuits for 9VDC Power Source

Selectable 5V, 3.3V, 2.5V, or 1.8V I/O Voltage Supply

Selectable 1.8V, 3.3V, or 5.0V Core Voltage Supply

44-pin TQFP Socket Adapter Board

Headers for I/O Pins of the ATF15xx Device

2MHz Crystal Oscillator

Four 7-segment LED Displays

Eight Individual LEDs

Eight Push-button Switches

Global Clear and Output Enable Push-button Switches

Current Measurement Jumpers


Logic Doubling CPLDs

ATF15xx ISP CPLD with Logic Doubling Architecture


ATF15xx ISP Download Cable

5V, 3.3V, 2.5V, or 1.8V ISP Download Cable for the Universal Serial Bus (USB) port of a PC

There are two versions of the ATF15xx USB ISP Download Cable; ATDH1150USB and
ATDH1150USB-K. They are built by two different vendors but have identical circuit design, and the
Atmel Ordering Code is ATDH1150USB. The ATDH1150USB-K is built by Kanda (www.kanda.com)
and it can be directly purchased from Kanda. More details are available online at
www.atmel.com/tools/ATDH1150USB.aspx.

PLD Development Software

The Atmel PLD development software tools are available online for PLD designer's use of the ATF15xx
ISP CPLDs. Please reference the Overview document, "PLD Design Software Overview" available at:
http://www.atmel.com/images/atmel-3629-pld-design-software-overview.pdf

System Requirements

The minimum hardware and software required to program an ATF15xx ISP CPLD device designed
using the Atmel ProChip Designer Software on the CPLD Development/Programmer Board through
the Atmel ATMISP (ATF15xx CPLD ISP Software) are:
x86 or x64 Microprocessor-based Computer

Windows XP

128-MByte RAM

500-MByte Free Hard Disk Space

Windows-supported Mouse

Available USB 1.1 / 2.0 / 3.0 Port

9VDC Power Supply with 500mA of Supply Current

SVGA Monitor (800 x 600 Resolution)

Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
®
or Windows 7
ATF15xx-DK3-U Development/Programmer Kit [USER GUIDE]
Atmel-8961A-CPLD-ATF15xx-DK3-U-Development-Kit-UserGuide_072015
3
