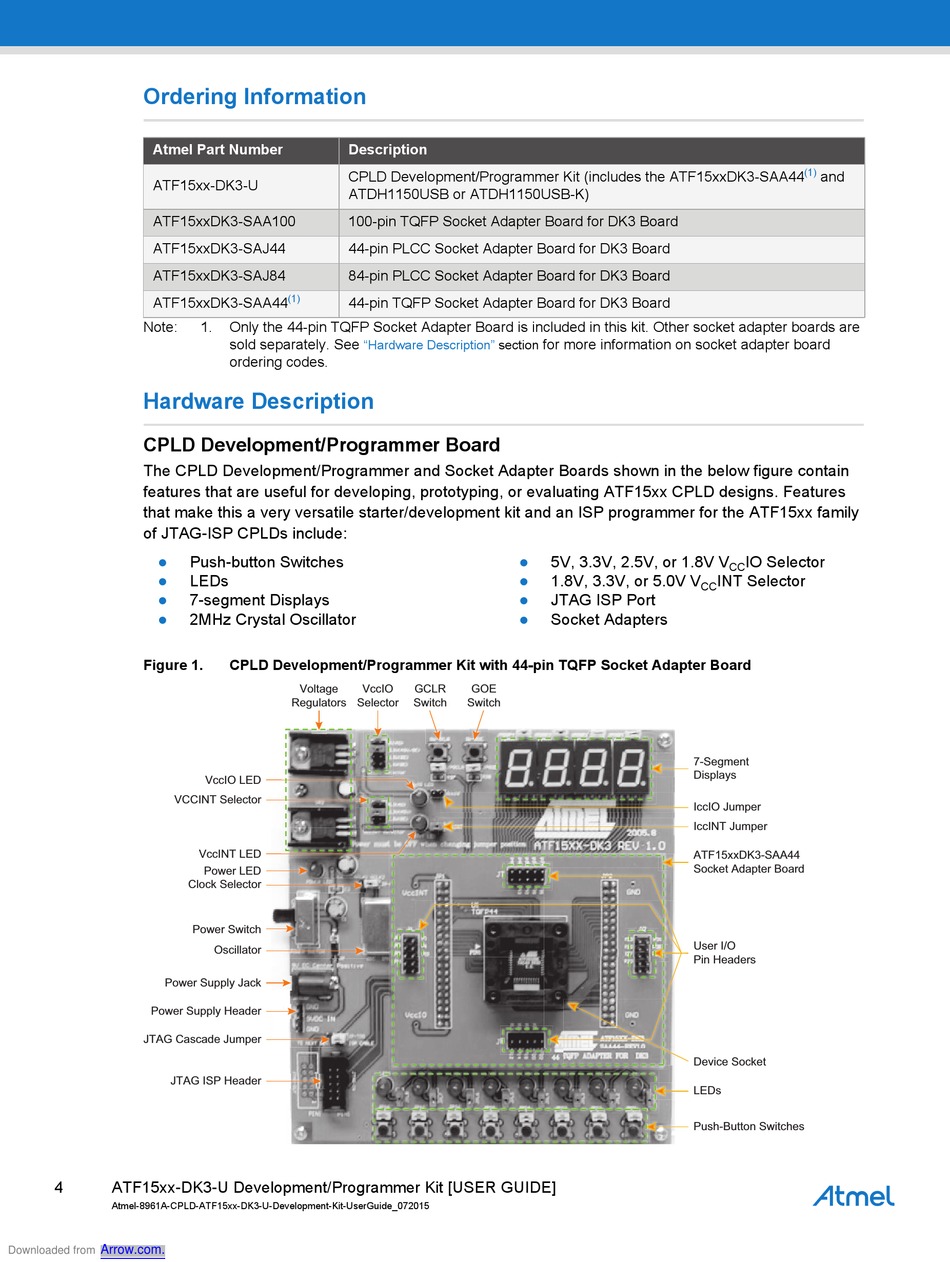

Ordering Information; Hardware Description; Cpld Development/Programmer Board - Atmel ATF15 DK3-U Series User Manual

Ordering Information

Atmel Part Number
ATF15xx-DK3-U
ATF15xxDK3-SAA100
ATF15xxDK3-SAJ44
ATF15xxDK3-SAJ84
ATF15xxDK3-SAA44
Note:

Hardware Description

CPLD Development/Programmer Board

The CPLD Development/Programmer and Socket Adapter Boards shown in the below figure contain
features that are useful for developing, prototyping, or evaluating ATF15xx CPLD designs. Features
that make this a very versatile starter/development kit and an ISP programmer for the ATF15xx family
of JTAG-ISP CPLDs include:




Figure 1.
VCCINT Selector
Power Supply Jack
Power Supply Header
JTAG Cascade Jumper
JTAG ISP Header
4 ATF15xx-DK3-U Development/Programmer Kit [USER GUIDE]
Atmel-8961A-CPLD-ATF15xx-DK3-U-Development-Kit-UserGuide_072015
Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from
Description
CPLD Development/Programmer Kit (includes the ATF15xxDK3-SAA44
ATDH1150USB or ATDH1150USB-K)
100-pin TQFP Socket Adapter Board for DK3 Board
44-pin PLCC Socket Adapter Board for DK3 Board
84-pin PLCC Socket Adapter Board for DK3 Board
(1)
44-pin TQFP Socket Adapter Board for DK3 Board
1. Only the 44-pin TQFP Socket Adapter Board is included in this kit. Other socket adapter boards are
sold separately. See
"Hardware Description"
ordering codes.
Push-button Switches
LEDs
7-segment Displays
2MHz Crystal Oscillator
CPLD Development/Programmer Kit with 44-pin TQFP Socket Adapter Board
Voltage VccIO
Regulators gula Selector
VccIO LED
VccINT LED
Power LED
Clock Selector
Power Switch
Oscillator
for more information on socket adapter board
section
5V, 3.3V, 2.5V, or 1.8V V

1.8V, 3.3V, or 5.0V V

JTAG ISP Port

Socket Adapters

GCLR GOE
Switch Switch
(1)
and
IO Selector
CC
INT Selector
CC
7-Segment
Displays
IccIO Jumper
IccINT Jumper
ATF15xxDK3-SAA44
Socket Adapter Board
User I/O
Pin Headers
Device Socket
LEDs
Push-Button Switches
