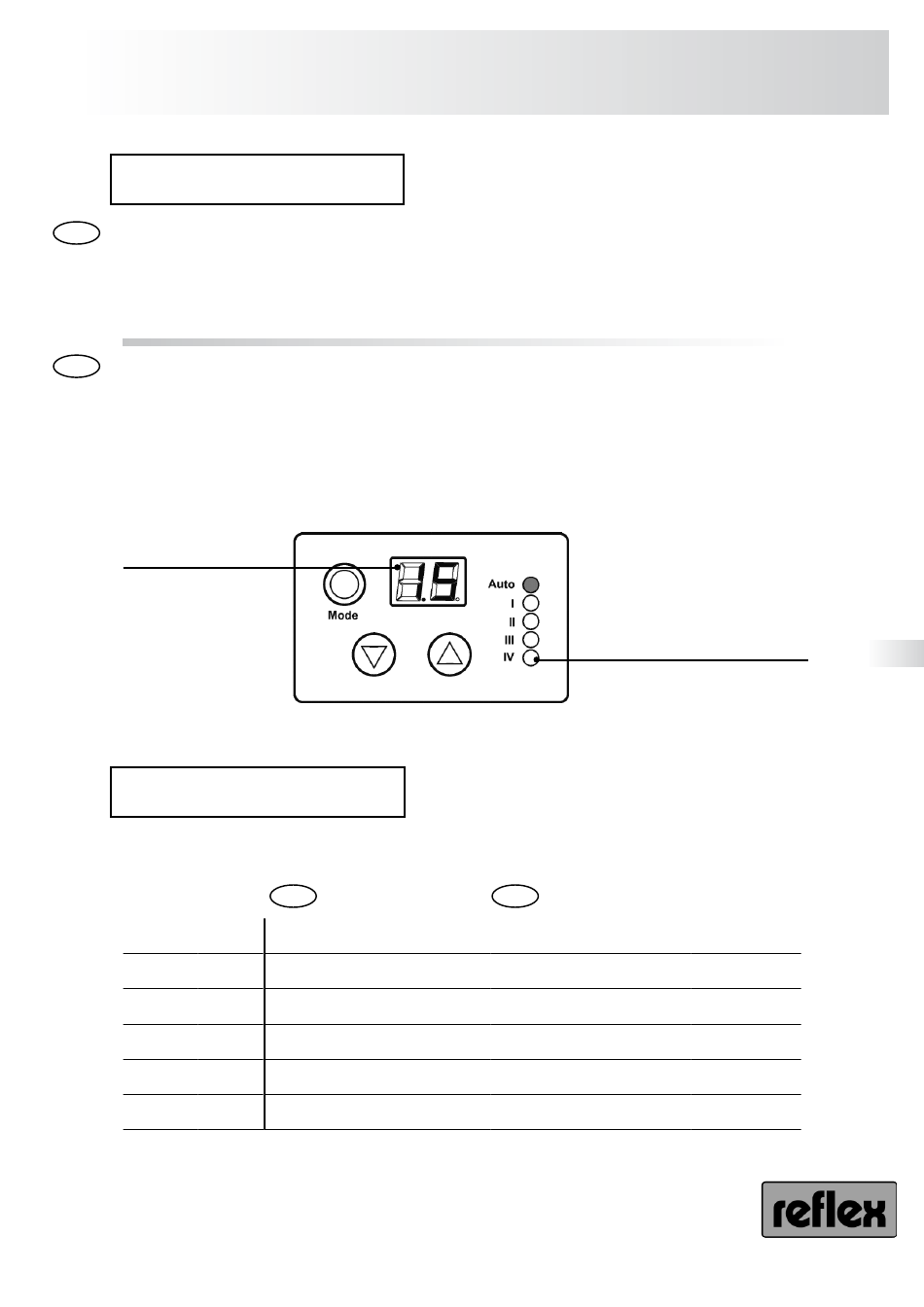

Automatikbetrieb/

Automatic mode

Die LED „Auto" leuchtet grün. In dem Display wird der Ist-Druck angezeigt. Während des Automatikbetriebes
D
speist die reflex 'fillcontrol' bei Unterschreiten des Sollwertes nach, bei Überschreiten des zweiten Sollwertes
wird die reflex 'fillcontrol' abgeschaltet (→ S.8).
Während der Nachspeisung leuchtet die LED „Auto" grün und gleichzeitig blinkt die LED "IV" rot. Die Lauf-
zeit und die Zyklenanzahl werden überwacht, bei Überschreitung verriegelt die reflex 'fillcontrol' und eine
entsprechende Störmeldung wird aktiviert.
GB
The LED „Auto" is green. The actual pressure is shown on the display. During automatic mode reflex 'fillcont-
rol' refills the system when the pressure falls below the setting value, if the second value is exceeded, reflex
'fillcontrol' is turned-off (→ p.8).
During the refill, the LED „Auto" is green and at the same time the LED "IV" is red. The operation time and
the number of cycles are monitored. If the corresponding values are exceeded, reflex 'fillcontrol' disconnects
and an accordant error message is activated.
Beispiel: 1.5 bar
Example: 1.5 bar
Werkseinstellungen im Servicemenü/

Default settings in the service menu

Di
e Parameter können nur vom Reflex Werksservicedienst verändert werden!
These parameters can only be changed by the Reflex Service!
Anzeige 1
LED "II"
Display 1
Anzeige 2
LED "III"
Display 2
Anzeige 3
LED "IV" Max. Nachspeisezeit
Display 3
Anzeige 4
Display 4
Anzeige 5
Display 5
Anzeige 6
Display 6
Die Erstinbetriebnahme ist an dieser Stelle abgeschlossen!
Initial start-up is completed at this point!
Erstinbetriebnahme/Initial start-up
D
Nachfüllzyklen
Füllzeit (Erstbefüllung)
Akustisches Signal
Schließpunkt der Hysterese (H)
Öffnungspunkt der Hysterese (h)
reflex 'fillcontrol'
Blinkt zusätzlich rot, wenn
nachgespeist wird.
Additionally flashes red while
replenishing.
GB
/
Refilling cycles
/
Filling time (initial filling)
/
Max. refill time
/
Acoustic signal
/
Hysteresis closing point (H)
/
Hysteresis opening point (h)
:
3 Zyklen/cycles
:
2 Stunden/hours
:
10 min
:
EIN/ON
:
0.3 bar
:
0.1 bar
