TLD5190IVREG-EVAL evaluation board
User Manual
Quick start procedure

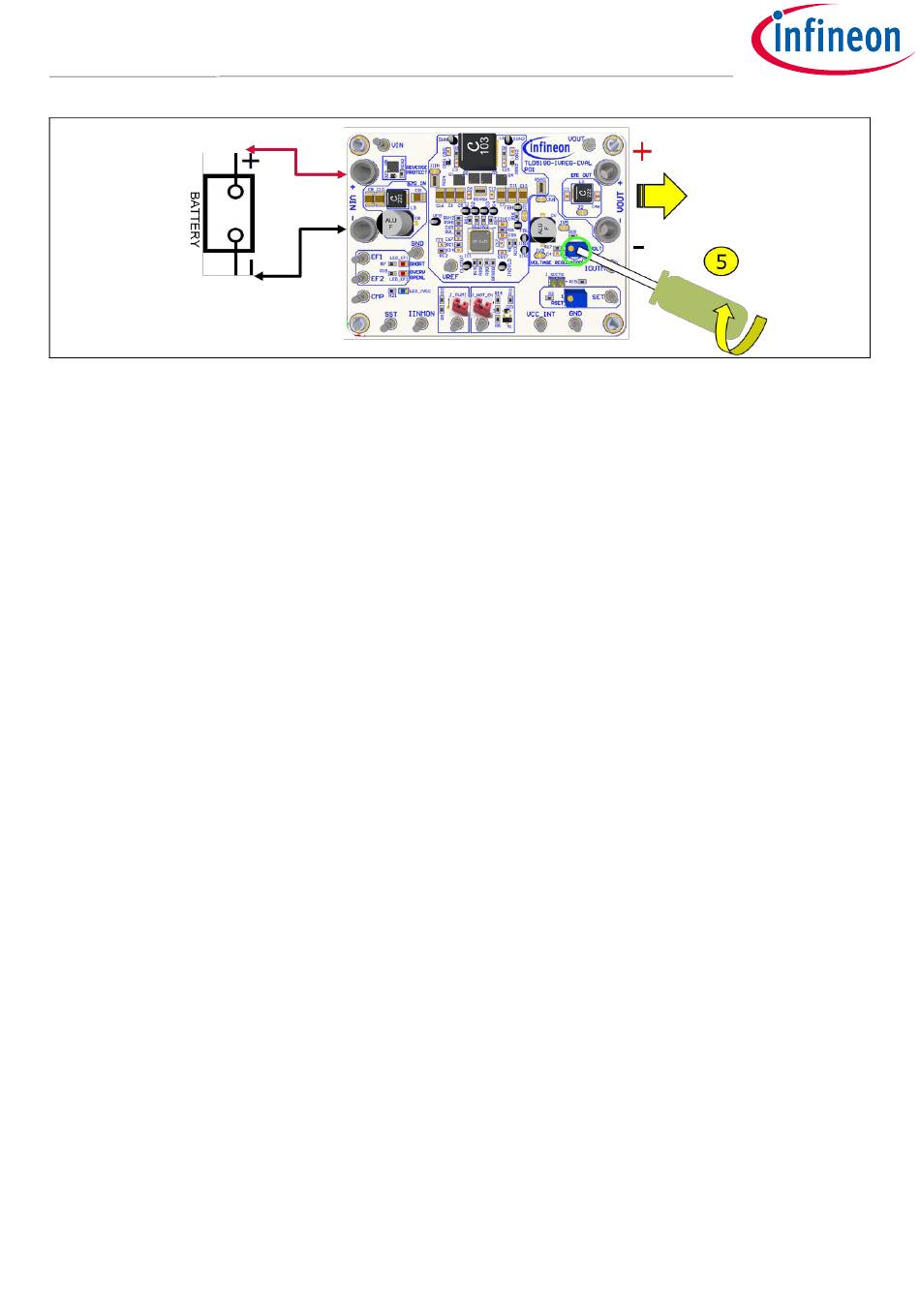

Figure 8
Adjust V
OUT
Connect the load
6.
NOTE:
It is possible to adjust output voltage from 0 to full scale (previously set by RVOLT) by rotating RSET, but the
best transient response is obtained when analog dimming is set to 100%.
User Manual
2020-07-22
using RVOLT
6 of 12
Rev.1.00
