Quick start procedure
3
Quick start procedure
Below, step-by-step procedures are laid out for setup and running the TLD5190IVREG-EVAL in all available
configurations.
3.1
Setup as LED driver

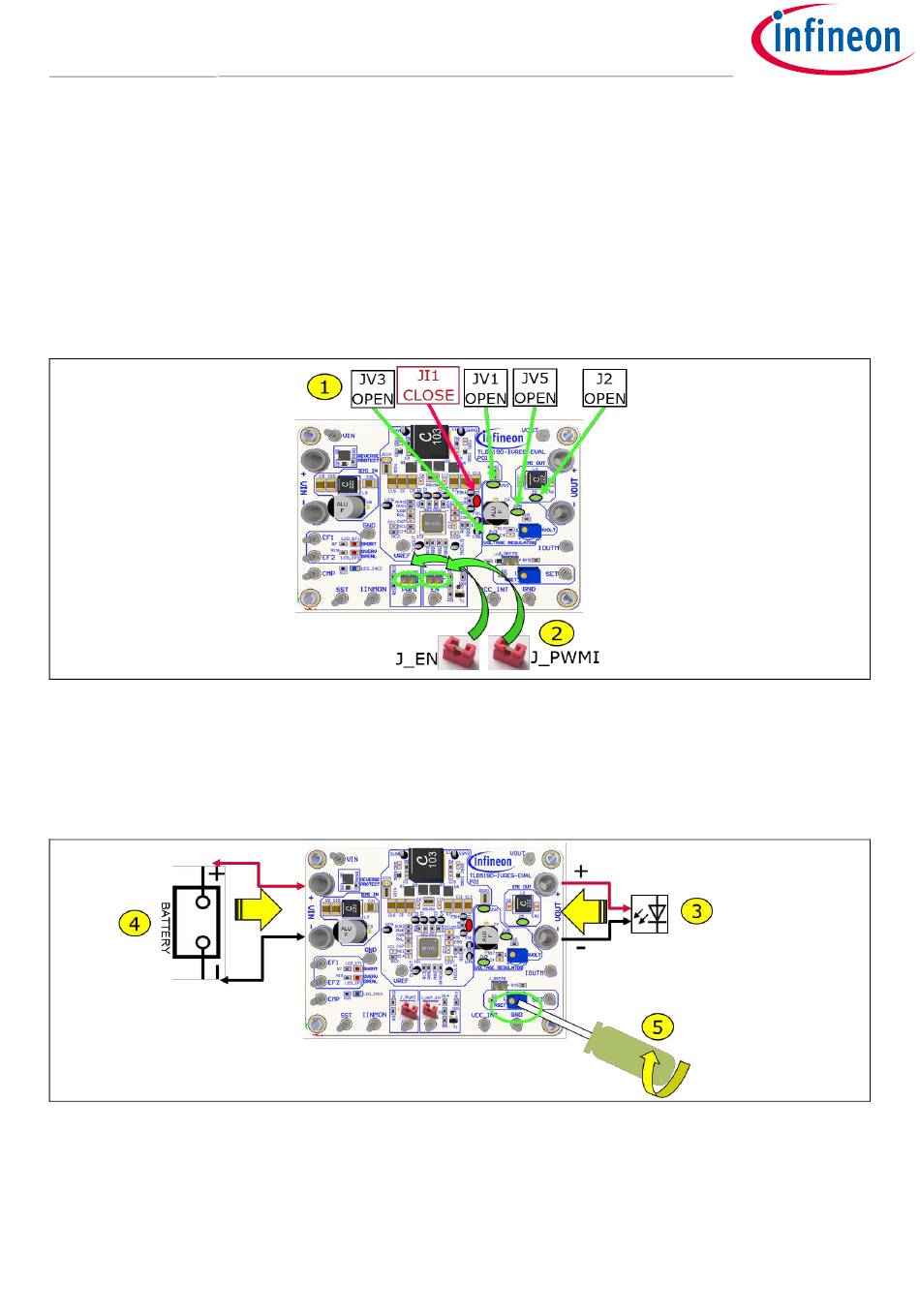

Configure solder jumper for LED driver configuration: Figure 4
1.
J_EN (Enable) and J_PWMI jumpers
2.
Figure 4
Connect loads and set jumpers
Connect the LED load
3.
Connect a 12 V power supply to the V
4.
Adjust I
with RSET (>150 mA suggested for better accuracy and transient response)
5.
OUT
Figure 5
Connect power supply and adjust LED current
User Manual
2020-07-22
connector → the blue LED should turn on indicating I
IN
4 of 12
present
VCC
Rev.1.00
