TLD5190IVREG-EVAL evaluation board
User Manual
Quick start procedure
3.2

Set up as voltage regulator

Configure solder jumper for VREG (Figure 6), if I
1.
Connect J_EN and PWMI jumpers
2.

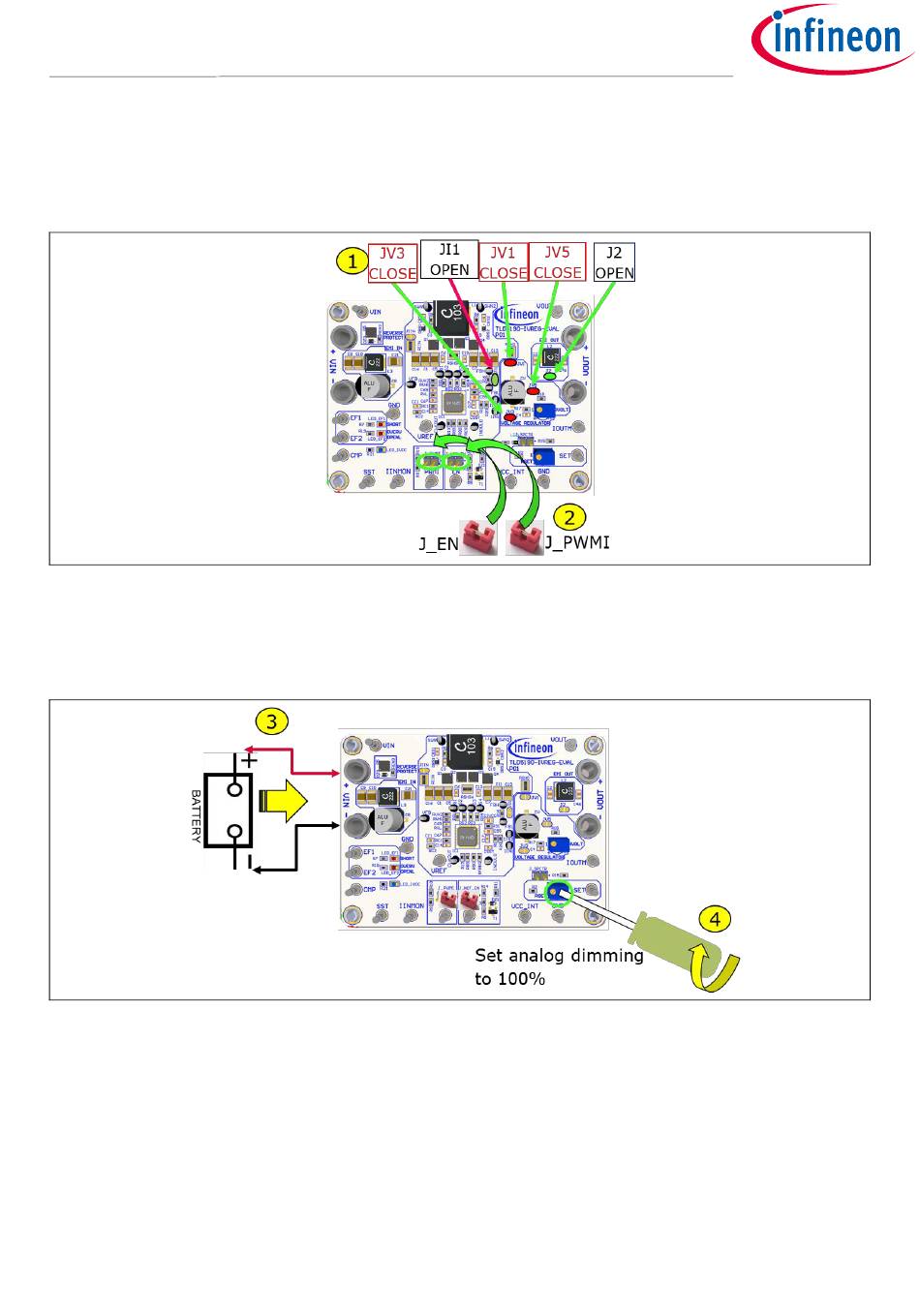

Figure 6 Voltage regulator: set EN jumpers, populate solder jumps
Connect a 12 V power supply to the V
3.
Rotate RSET trimmer fully clockwise (100% analog dimming, improves transient response and accuracy)
4.
Figure 7 Voltage regulator: connect power supply
Rotate RVOLT trimmer to obtain the desired V
5.
User Manual
2020-07-22
> 3 A bypass RSHO with a solder joint on the resistor top
OUT
connector
IN
OUT
