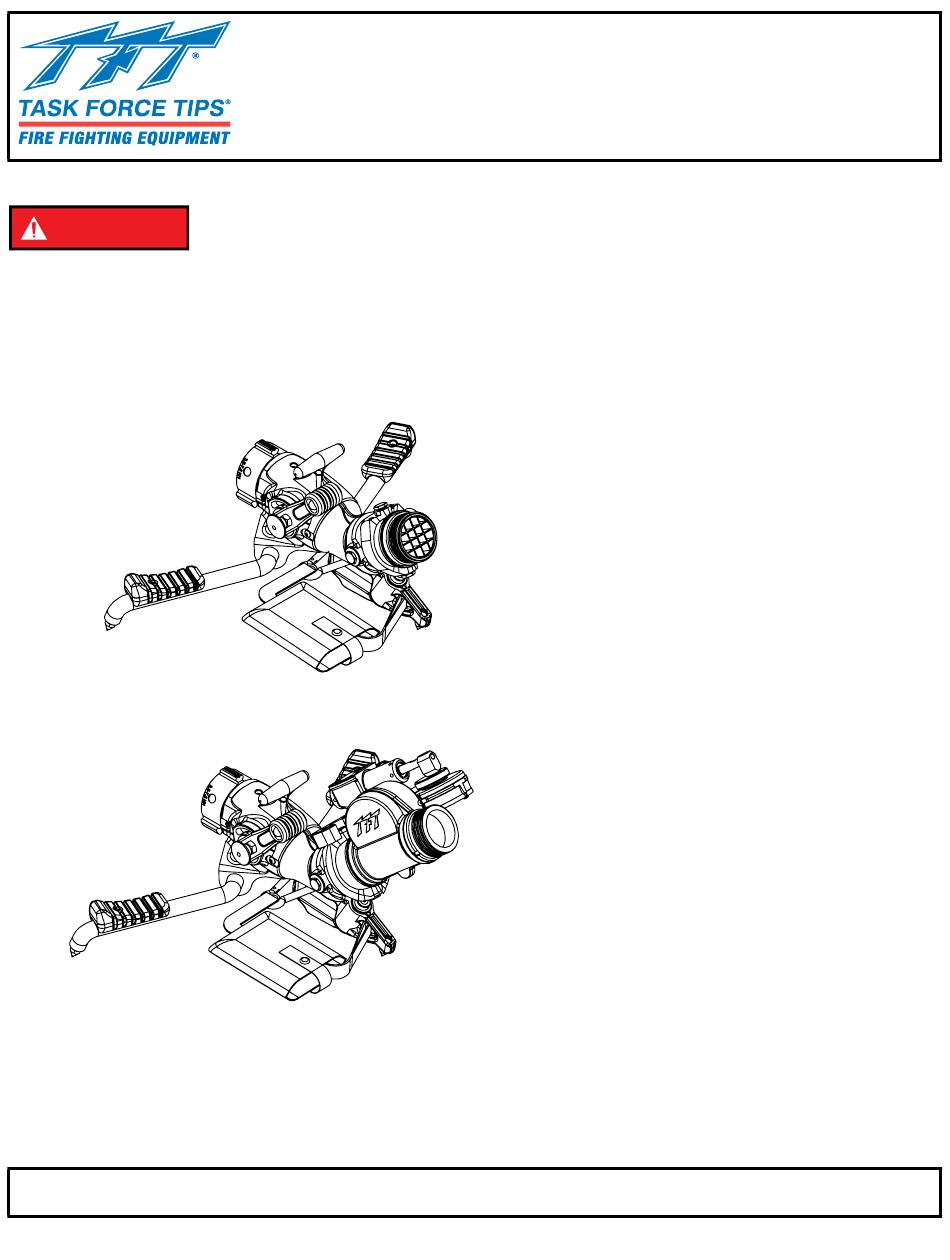

BlitzForce
™
Portable Monitor
INSTRUCTIONS FOR INSTALLATION, OPERATION, AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
DANGER
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
MAXIMUM FLOW
500 GPM @ 175 PSI
(2000 L/min @ 12 BAR)
HYDROSTATIC PROOF TEST
BlitzForce Portable Monitor
900 PSI (62 BAR) per NFPA 1964
BlitzForce OSC Portable Monitor
TASK FORCE TIPS LLC
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2006-2023
1
LIX-730 July 13,2023 Rev10
Advertisement
Table of Contents
Related Manuals for Task Force Tips BlitzForce XXLC-33-NH1
Summary of Contents for Task Force Tips BlitzForce XXLC-33-NH1
- Page 1 900 PSI (62 BAR) per NFPA 1964 BlitzForce OSC Portable Monitor TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10...
- Page 2 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2006-2020 LIX-735 November 30, 2020 Rev04 LIX-735 - BLITZFORCE XXL-B Storage Bracket ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10...
-
Page 3: Table Of Contents
7.2 GENERAL - OSCILLATOR 7.3 OSCILLATOR 7.4 OSCILLATION SPEED AND COVERAGE 8.0 STORAGE 9.0 WARRANTY 10.0 MAINTENANCE 10.1 SERVICE TESTING 10.2 REPAIR 11.0 EXPLODED VIEW AND PARTS LISTS 12.0 OPERATION AND INSPECTION CHECKLIST ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 4: Meaning Of Safety Signal Words
NFPA 1962, if dissimilar metals are left coupled together, an anti-corrosive lubricant should be applied to the connection and the coupling should be disconnected and inspected at least quarterly. To prevent mechanical damage, do not drop or throw equipment. ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 5: General Information
30 to 60° above horizon Horizontal Stream Range +/- 20° either side of centerline Materials used Aluminum 6000 series hard anodized MIL8625 class 3 type 2, stainless steel 300 series, nylon 6-6 Table 3.2 ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 6: Operating Envelope
In the unfolded position, the legs provide a stable base for operation of the monitor. Lack of stability WARNING can cause an out of control monitor resulting in injury or death. Do not operate as a portable monitor with one or both legs in the folded position. ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 7: Carbide Spikes
It may be adjusted. The mechanism releases when raising the nozzle so upwards drag from the mechanism is not felt. Avoid the use of long stream straighteners or heavy nozzles which may overcome the holding torque of the elevation mechanism. ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 8: Flow Characteristics
1600 2000 40.0 35.0 OSCILLATING BlitzForce 30.0 18 PSI LOSS AT 500 GPM 25.0 BlitzForce PORTABLE MONITOR 20.0 8 PSI LOSS AT 500 GPM 15.0 10.0 FLOW (GPM) Figure 4.5 ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 9: Deployment Of Blitzforce Portable Monitor
On a charged hose the BlitzForce Portable Monitor may be carried by holding the T-shaped handle located on top of valve body as shown. Shut-off valve handle should be locked in the closed position to keep the valve from inadvertently opening. Figure 5.2 ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 10: Pressure Gauge Port
The ability to keep one or more people’s weight on the monitor is subject to operator fatigue and may not be as reliable as other methods. Operating at limited flows will also reduce the risk of sliding. ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 11: Anchoring By Spike Holds
Anchoring by Hooking to a Wall or Door Frame GOOD POOR Nozzle reaction keeps leg hooked. Nozzle reaction tends to Hose hits wall and helps hold position. unhook the leg. Figure 6.4B ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 12: Oscillating Unit (Osc)
LIFT TO CHANGE SWEEP SETTING 40° PULL KNOB & TURN TO STOP OSCILLATION 30° 20° SLIDE TO CHANGE ANGLE SWEEP Figure 7.3 ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 13: Oscillation Speed And Coverage
Always properly deploy the monitor before flowing. ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10... -
Page 14: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase for mechanical components, and the two (2) year period from the date of purchase for electrical components. -
Page 15: Maintenance
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 16: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2006-2023 LIX-730 July 13,2023 Rev10...
