System Diagnostics

6. System Diagnostics
System diagnostics may be performed using the status and diagnostics indicators on the
control module and sensors, or by using the Diagnostics software routine, or a
combination of the two.

6.1 Diagnostics Indicators

NOTE: Status indicators appear to "freeze" if the controller has been configured for Gate
or Host mode (Section 5.3.2), and no signal is present to cause a scan update.
DIN-Rail-Mountable
Control Module
HIGH RESOLUTION MINI-ARRAY CONTROLLER
POWER
1 2 3 4 5 6 7 8
+12V COM DRN T/R T/R
F1
BR BU BK WH
+ –
16-30V dc
1A MAX
Diagnostics Indicator
150mA MAX
EMTR RCVR
DIAGNOSTICS
INDICATOR
ALIGNMENT
SWITCH
POWER
Alignment Button
Red Discrete Output #1 LED
Red Alarm (Discrete Output #2) LED
Red Gate LED
Green Align LED
RS-232 Port

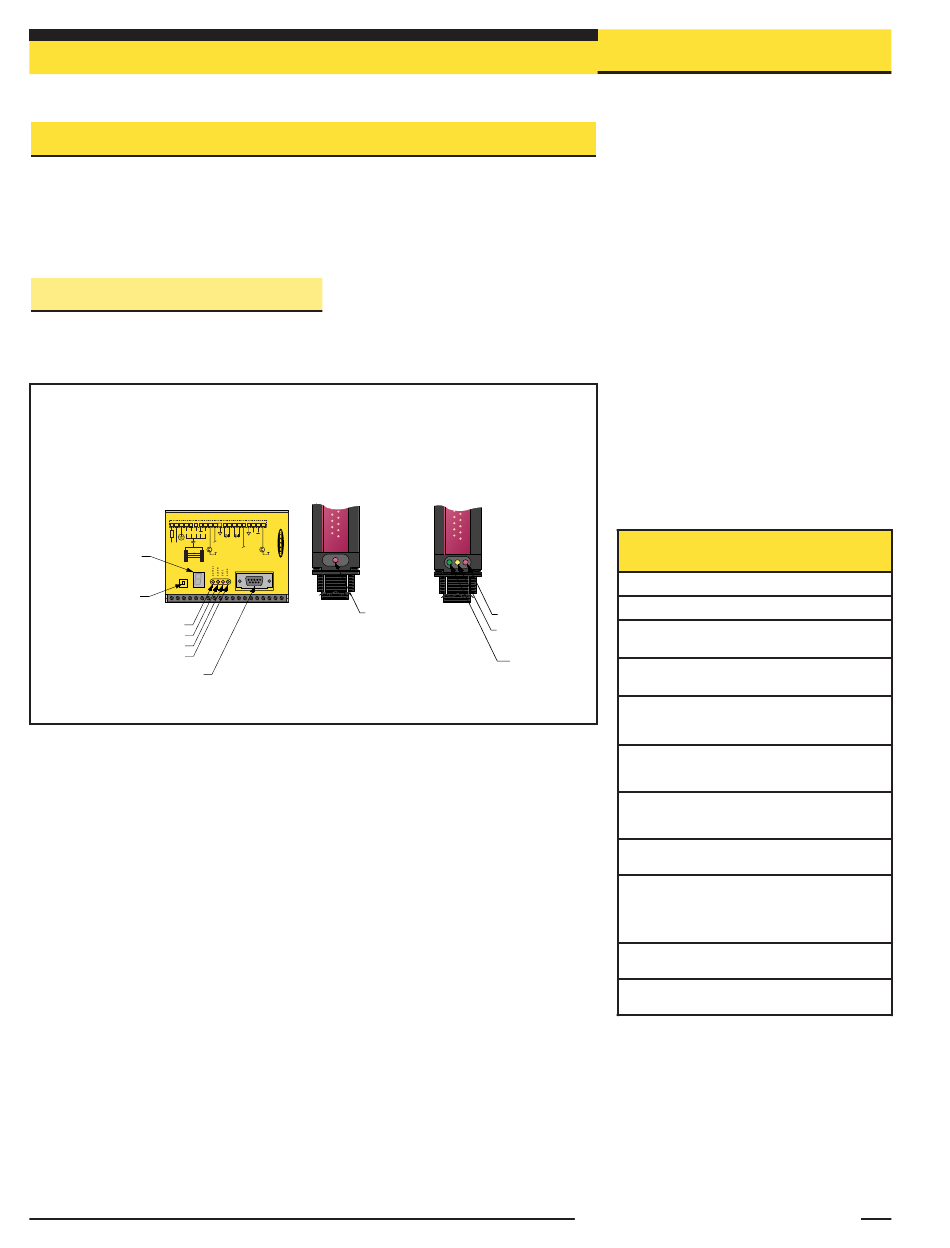

Figure 6-1. A-GAGE High-Resolution MINI-ARRAY System diagnostics and status indicators
Bright, easy-to-see LED indicators on both sensors and on the front panel of the
control module provide an ongoing display of the system's operating status.
Control Module:
OUTPUT: (red) displays the status of Discrete Output #1.
ALARM: (red) displays the status of Discrete Output #2. This output may be assigned
to an analysis mode, or it may be used as a System Diagnostics alarm or as a Trigger
alarm to gate another A-GAGE High-Resolution MINI-ARRAY System.
GATE: (red) displays the status of the Gate input.
ALIGN: (green) indicates proper emitter/receiver alignment and a clear, unblocked light
screen. This indicator is ON when either the green or both the green and yellow LEDs
of the receiver are ON.
32
P/N 64118 rev. B
High-Resolution
Emitter
MAHCVP-1
9 10 11 12 13 14 15 16 17 18 19 20
TX TX
+ +
– –
10-30VDC 10-30VDC
0-10VOLTS GATE ALIGN
25mA (MAX)
V OUT 1 0-10VOLTS
25mA (MAX)
+V +V
V OUT 2
D OUT 1 ALARM
150mA MAX
RS-232
2 - TX
3 - RX
5 - COM
Red
Operational
LED
High-Resolution
Receiver
Green Alignment LED
Red Blocked LED
Yellow Marginal
Alignment LED
