Mount the emitter and receiver in their brackets and position the red lenses of the two
units directly facing each other. The connector ends of both sensors must point in the
same direction. Measure from one or more reference planes (e.g. the building floor) to
the same point(s) on the emitter and receiver to verify their mechanical alignment. If
the sensors are positioned exactly vertical or horizontal to the floor, a carpenter's level
is useful for checking alignment. A straightedge or a string extended between the
sensors also helps with positioning. Also check "by eye" for line-of-sight alignment.
Make any necessary final mechanical adjustments, and hand-tighten the bracket
hardware. See Section 6 for information on alignment indicators and Section 5 for
information on the use of the alignment software which is supplied with the controller.
QD End
ø30.5 mm
(1.20")
ø13.2 mm
(0.52")
Slots have clearance
for M4 bolts (supplied)
and allow ±30° rotation
3.0 mm
(0.12")

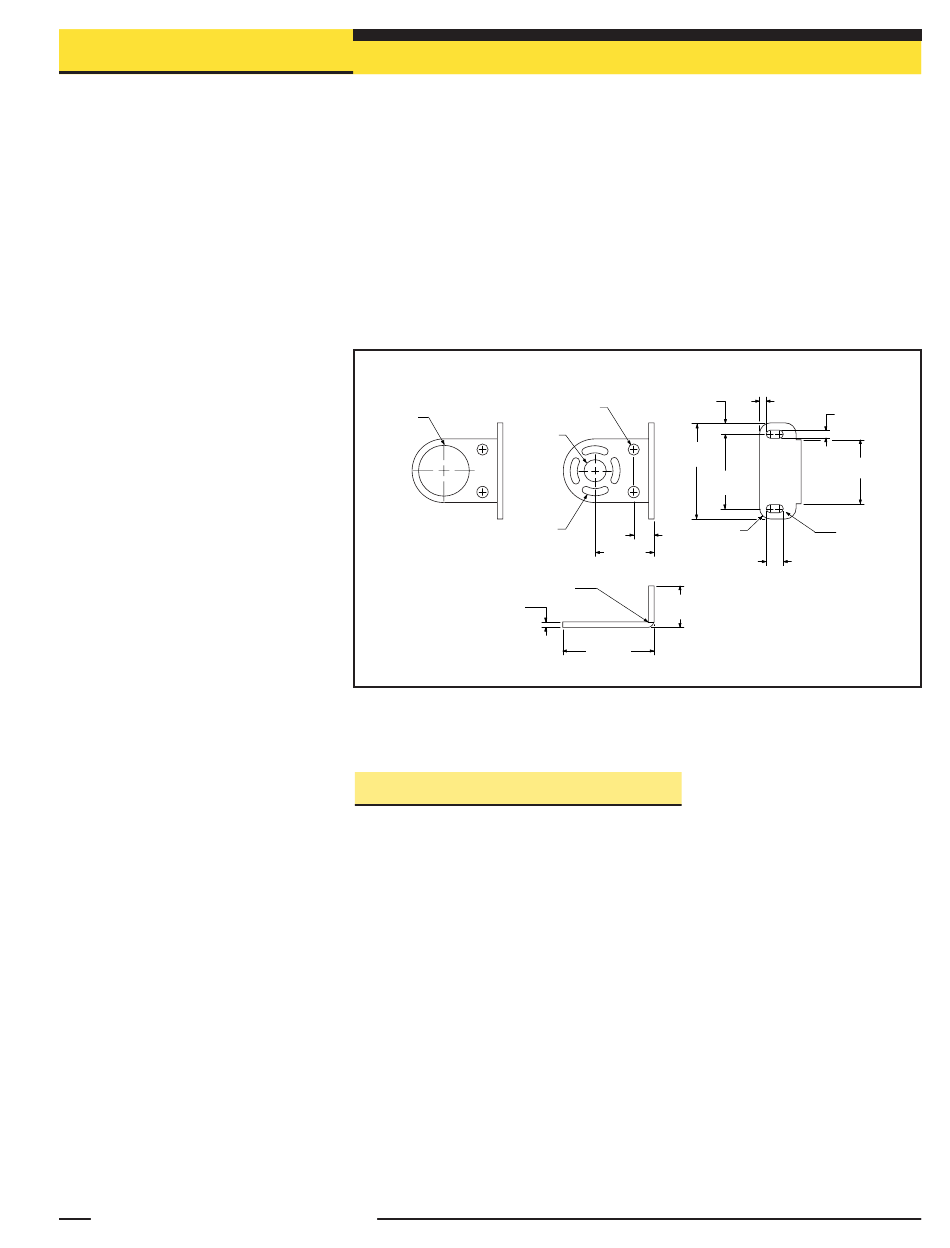

Figure 3-2. A-GAGE High-Resolution MINI-ARRAY emitter and receiver mounting bracket
dimensions

3.2 Control Module Mounting

The control module must be installed inside an enclosure which has a NEMA (or IEC)
rating suitable for the operating environment.
Mounting dimensions for the controller are shown in Figure 2-2, on page 11. The
control module is supplied with M3.5 hardware for direct mounting to a surface, or the
module may be mounted onto standard 35 mm DIN rail.
Installation and Mechanical Alignment
NON-QD End
6.4 mm
ø6.8 mm (2)
(0.25")
(0.27")
57.2 mm
(2.25")
44.5 mm
(1.75")
6.4 mm R
11.9 mm
(0.25")
(0.47")
34.8 mm
(1.37")
Min. R.
24.6 mm
(0.97")
Material: Cold Rolled Steel
Finish: Black, Zinc Plated
53.8 mm
(2.12")
3.8 mm
4.8 mm (2)
(0.15")
(0.19")
38.1 mm
(1.50")
Full R (4)
10.2 mm (2)
(0.40")
Chromate Dip
