Software Installation
4. Software Installation
The High-Resolution MINI-ARRAY software CD includes an installation routine that quickly and easily loads the MINI-ARRAY configuration program
into your computer. The High-Resolution MINI-ARRAY configuration program requires approximately 50 MB of hard disk space. Install as follows:
1. Use the Parameter Setup Software CD included with the controller, or download (www.bannerengineering.com) as required.
2. Insert the Software CD into the CD drive.
If the program does not auto-start, browse to your CD drive, click Setup.exe, then select START, then select
2. The Welcome dialog box will appear. Select Next, and follow the prompts in the dialog boxes as they appear.
4. The installation program then decompresses the files. A status dialog box monitors the progress of the installation.
5. An Installation Completed dialog box appears. Select OK. Reboot your computer for the changes to take effect.
After the software is installed, a MINI-ARRAY shortcut icon is placed on your desktop. Double-click on the MINI-ARRAY icon to launch the program, then
follow the configuration and setup procedures described in Section 5 of the primary manual.

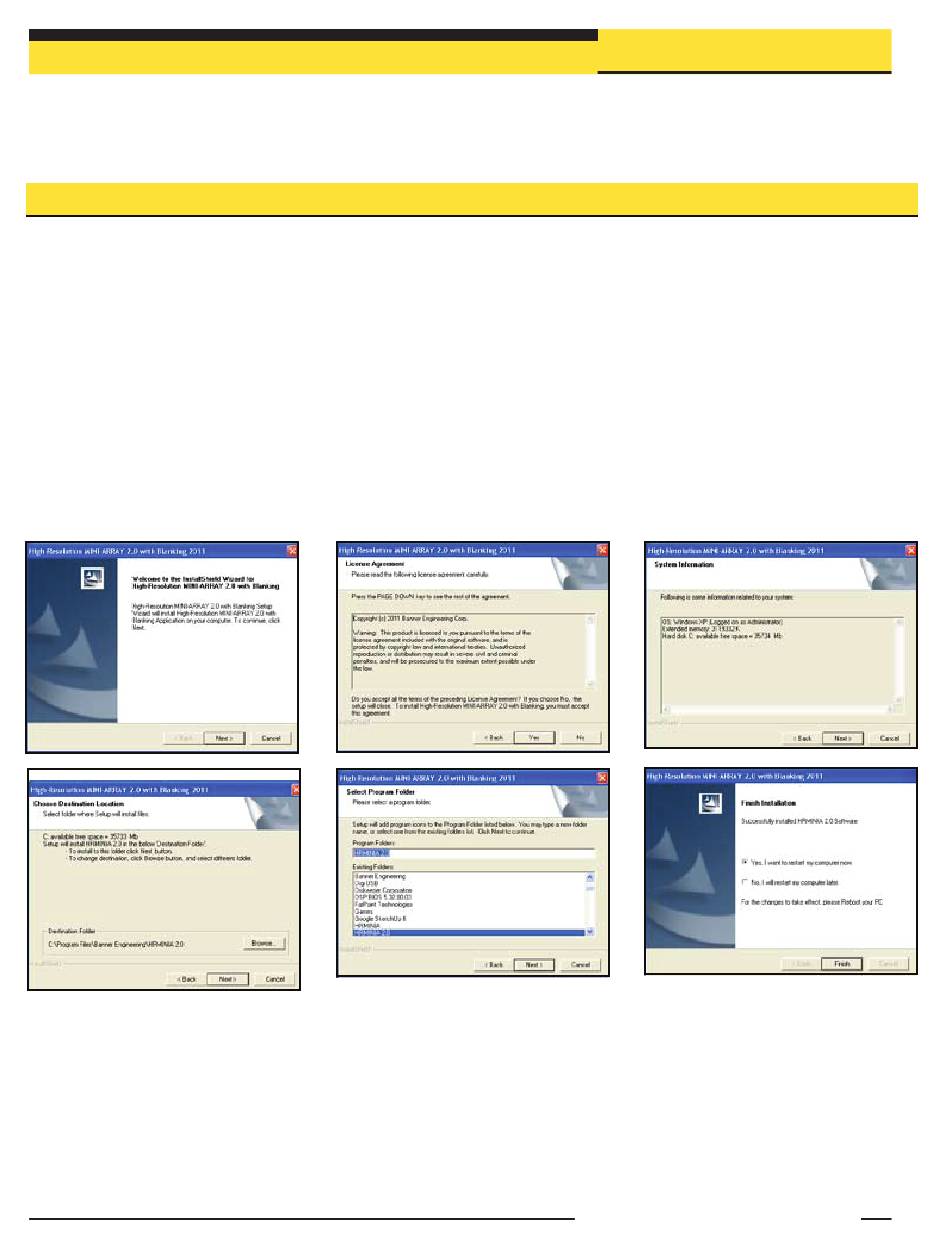

Figure 4-1. MINI-ARRAY software installation: dialog boxes
16
16
P/N 64118 rev. B
RUN.
Banner Engineering Corp.
Minneapolis, U.S.A.
•
Banner Engineering Corp.
Minneapolis, U.S.A.
•
www.bannerengineering.com • Tel: 763.544.3164
www.bannerengineering.com • Tel: 763.544.3164
