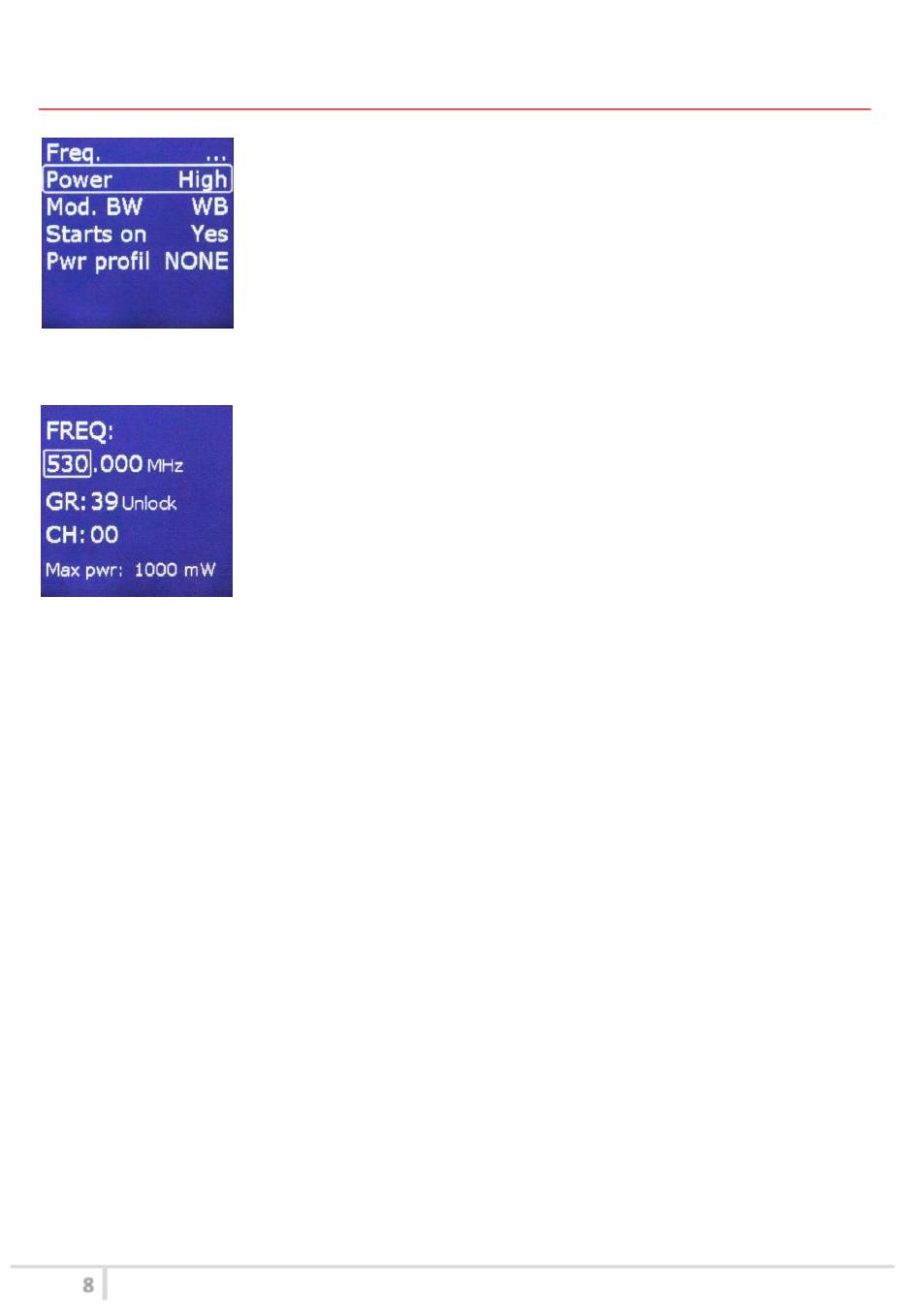

RF menu:
Freq. menu:
Use the selector and arrows to change values and SAVE to confirm.
Sync group is a quick self-settable channel synchronized by receiver (with SYNC group, on the top
right of the display is shown the name of the synchronized receiver).
NOTE:
The device has 40 groups of 60 channels each. Connecting with computer with WISYCOM MANAGER
software, it is possible to hide single channels or even complete groups of channels: once hidden
those items are not shown anymore on the channels or groups selection. To show channels or
groups hidden use again the WISYCOM MANAGER software.
Using this software it is also possible to lock channels or groups. When a channel is locked, it is not
possible to change the frequency from the front panel of the device. Locking a group means that all
channels are locked. When a channel or a group are locked, at the left of the group name will appear
a lock icon as shown thus changing frequency is not possible.
Power:
RF power can be set in 3 levels: Low, Mid and High.
These 3 levels can be configured by the user with WISYCOM MANAGER.
Factory pre-configured values in Wisycom are: Low 100mW, Mid 300mW and High 1000mW.
Modulation Bandwidth:
Select the type of modulation bandwidth:
