- Page 1 RPU500-Tx User Manual High-power, full-duplex reporter portable unit Rev.01 (ref. FW v1.0) Date: 30 March 2021...
-
Page 2: Safety Instruction
RPU500-Tx User Manual AFETY INSTRUCTION Read this safety instruction and the manual first Follow all instructions and information. Do not lose this manual. Do not use this apparatus under the rain or near the water. ... -
Page 3: Product Overview

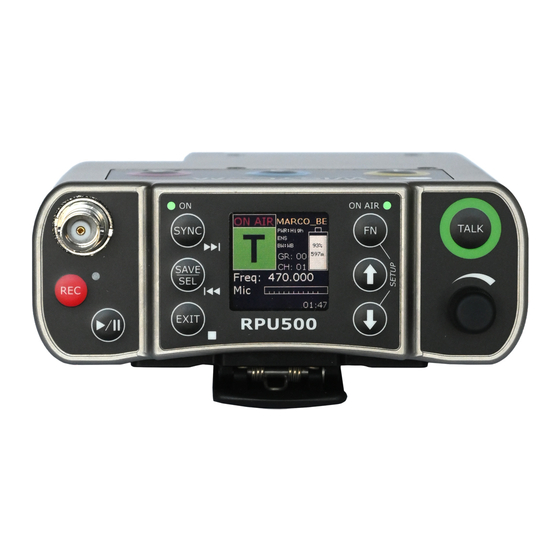

RPU500-Tx User Manual RODUCT OVERVIEW FRONT ❹ ❺ ❻ ❼ ❽ ❶ ❷ ❾ ❸ ❿ ⓫ ⓬ ⓭ ❶ BNC antenna connector ❽ TALK button (to activate TALK transmission) ❷ REC button ❾ VOLUME knob (for audio recording on SD card) ❸... - Page 4 Other sub-tones can be configured in Wisycom factory. Wisycom receiver MRK980 detect the sub-tones and informs the mixer via the Ctrl1 Ethernet port with Ember + protocol. From the mixer it is therefore possible to configure the audio routing according to your needs.
- Page 5 RPU500-Tx User Manual UICK SETUP unlatch the battery compartment latch at the bottom of the device insert the battery move the wireless power switch in “I” position to power on the device the front LED lights up green and the display switch on ❸...
-
Page 6: Display Menu
RPU500-Tx User Manual ISPLAY MENU Using navigation buttons it is possible to quick & easy navigate through the RPU500 menu: SAVE/SEL to enter on a sub-menu or change a parameter EXIT to exit from a sub-menu or exit from a parameter modification ... - Page 7 RPU500-Tx User Manual NOTE: Features not still implemented (reference firmware v1.0): SD card recording Bluetooth They will soon be available with a next firmware update.
- Page 8 NOTE: The device has 40 groups of 60 channels each. Connecting with computer with WISYCOM MANAGER software, it is possible to hide single channels or even complete groups of channels: once hidden those items are not shown anymore on the channels or groups selection.
-
Page 9: Audio Menu
Talk or Lazy buttons. Pwr profile: Wisycom pre-configure a Power Profile in the memory of the device which automatically limit the RF level and/or the frequency ranges according to the county specification. With NONE Pwr profile, no limit is configured. -
Page 10: Options Menu
RPU500-Tx User Manual Aux con.: To set jack 3.5mm audio connector as auxiliary input or as headphone output. Aux gain: To adjust audio level on the auxiliary input (from 0 to 38 dB, 2 dB step) Input mix: To define audio inputs and mix different audio sources... -
Page 11: Accessories And Parts
RPU500-Tx User Manual ACCESSORIES AND PARTS Item: LBP500 Standard Lithium Battery pack 10.80V / 3.35Ah / 36.20Wh Item: LBC500 Mini Smart Battery Charger with external power supply Item: CAL1x Power Cord 2 m. black CAL11: USA, NEMA 5-15P / IEC 60320 C5... - Page 12 RPU500-Tx User Manual Item: BCL500 Belt Clip RPU500 Item: AWB500-xxx 1/2 Dipole antenna with BNC connector: • AWB500-494: band 470-517 MHZ • AWB500-540: band 515-563 MHZ • AWB500-590: band 562-609 MHZ • AWB500-625: band 609-645 MHZ • AWB500-670: band 645-696 MHZ • AWB500-950:...
-
Page 13: Technical Specifications
Spurious emissions < 2 nW (typical = 0.1 pW) Noise Reduction system ENS - Wisycom Extended-Sound Optimized (other on request) AF bandwidth 50 Hz ÷ 20 KHz (1dB) (Wideband, ARM based, SW switchable) 50 Hz ÷ 15 KHz (1dB) (Narrowband, ARM based, SW switchable) -
Page 14: Manufacturer Declarations
RPU500-Tx User Manual MANUFACTURER DECLARATIONS In compliance with the following requirements RoHS Directive (2002/95/EC) WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such... - Page 15 RPU500-Tx User Manual...
- Page 16 RPU500-Tx User Manual Via Tiepolo, 7/E - 35019 Tombolo (PD) Italy Tel. +39 -0424 -382605 Fax +39 - 0424 - 382733 www.wisycom.com e-mail: sales@wisycom.com...
