Summary of Contents for WisyCom RTE25

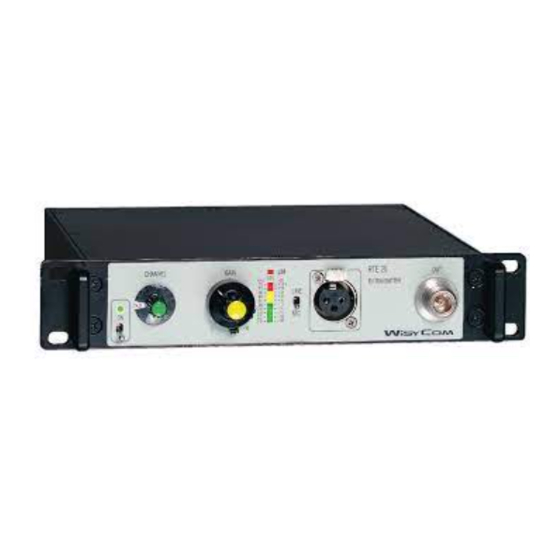

- Page 1 RTE25 User Manual 3W Transmitter/Exciter SN: ________________ Rev. 01 Date: 26 November 2014...
-
Page 3: Safety Instruction
EATURES Available in various ranges: ⇒ 140 ÷ 250 MHz, ⇒ 300 ÷ 360 MHz, ⇒ 470 ÷ 880 MHz Wide pre-tuned switching-window: ⇒ 15 MHz in 140 ÷ 250 MHz range and 300 ÷ 360 MHz ⇒ 25 MHz in the ranges 470 ÷ 880 MHz. ... - Page 4 RONT ANEL ONTROL AND UNCTIONS ❶ ❷ ❸ ❹ ❺ ❽ ❾ ❿ ❻ ❼ ❶ ON/OFF SWITCH (with LED indication). ❷ SELECTOR: CHANNELS (with back-light). ❸ GAIN LOCK (turn on the right to lock the gain). ❹ ADJUSTMENT: AUDIO INPUT SENSITIVITY (GAIN). With the optimum sensitivity adjustment, the red LED [5] can flash under modulation peaks.
-
Page 5: Rear Panel
ANEL ⓫ ⓬ ⓭ ⓫ DC-INPUT CONNECTOR (XLR4-M type): pin 1 = -V, ground pin 2 = +V pin 3 = -V, ground pin 4 = +V Powering: 9 15 Vdc, 900 mA max. For mains powering operations, the transmitter can be supplied with PSP25-H/BE “mains-plug” power- supply. - Page 6 UTTING PERATION Connect the power supply to the XLR4-M connector ⓫ (see optionals PSP25-L) Connect the antennas to the N-F antenna connectors ❿ (see optionals AGN00 / AMB Connect the mixer or microphone to the Line in connector ( ⓬), select Front or Rear ❽...
-
Page 7: Troubleshooting
Troubleshooting No audio output on the Check the LED-BAR : if it is OFF, verify the line in connection ❻ receiver and the position of the audio input switch ❾ Check the CHANNEL SELECTOR : verify that the frequency of ❷... -
Page 8: Technical Specifications
For stereo applications, the limiter-circuits of two units can be linked by the optional external cable. NR-system Compander circuit, can be internally pre-set (or excluded) between following modes: ENR (Wisycom Extended-NR, with independent Attack- and Recovery-time), default; NR (Standard-NR), to be compatible with other apparatus. AF bandwidth 30 Hz ÷... - Page 9 CCESSORIES AGN00 Groundplane antenna VHF/UHF AMB 05 Magnetic-base antenna, (with 5 m RG58 coax cable) PSP 25-L 100 ÷ 240 Vac mains-plug power supply CDC916 External 12Vdc powering cable UPK 100 Working frequencies user programming kit (Interface + software)
- Page 12 WISYCOM srl • Via Spin 156 • I-36060 Romano d’Ezzelino • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 – 382733 • www.wisycom.com • e-mail: sales@wisycom.com...
